Automatic mm / inch conversion · Core engineering specifications

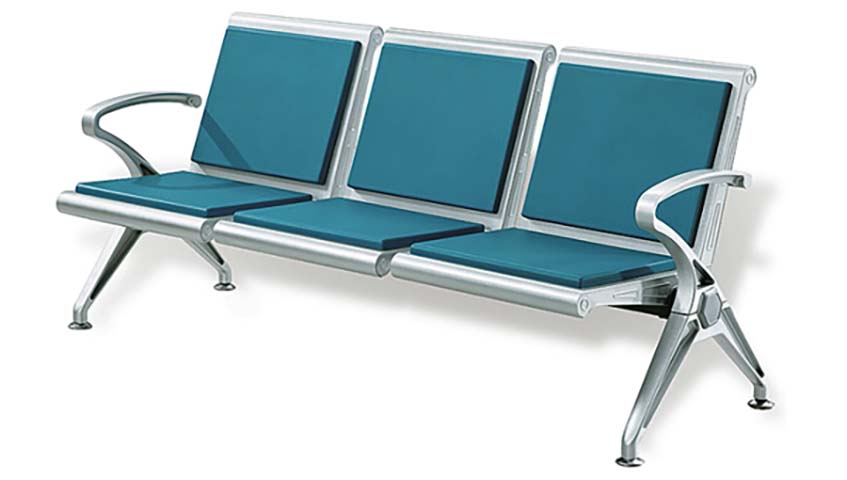

| Overall dimensions (W x D x H) | 1750 x 680 x 800 mm | |
|---|---|---|
| Single seat width | 520 mm | |
| Single seat depth | 450 mm | |
| Seat height from floor | 430 mm | |
| Backrest height per seat | 420 mm | |
| Seat pad thickness | 30 mm | |
| Back pad thickness | 20 mm | |
| Armrest height above seat surface | 200 mm | |
| Support leg footprint width (per end) | 620 mm | |
| Floor clearance under seat | 280 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Product net weight | 32 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended maximum user weight per seat | 120 kg | |
| Seat pad density (foam) | 40 kg/m³ | |
| Foam rebound rate | 40% | |
| Surface powder coat/chrome durability | 50000 cycles | |
| Anti-tip stability angle | 12 degrees | |
| Seat pad foam density | 40 kg/m³ | |
| Frame finish abrasion resistance | 50000 cycles | |
| Seat upholstery abrasion resistance | 100000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main support frame | 1.5mm thick chrome-plated cold-rolled steel tubing | |
|---|---|---|
| Seat and back support panels | 1.2mm thick perforated steel base plates | |
| Armrests | Die-cast chrome-plated zinc alloy with curved ergonomic profile | |
| Support legs | 2.0mm thick chrome-plated steel Y-shaped outrigger legs | |
| Floor glides | Nylon base with adjustable metal threaded stud | |
| Seat and back upholstery | 0.8mm thick teal polyurethane (PU) leather | |
| Internal seat/back cushioning | High-density polyurethane foam | |
| Connection hardware | Zinc-plated steel bolts and rivets | |
| Seat/back pad edge trim | Black PVC edge binding | |
| Back frame dividers | 1.2mm thick chrome-plated steel panels | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame |
Adjustment / rotation / tilt / mobility / storage features
| Seating capacity | 3 individual seated positions | |
|---|---|---|
| Surface cleaning compatibility | Wipeable PU upholstery and smooth chrome frame | |
| Floor leveling adjustment | 15mm vertical adjustment per floor glide | |
| Fixed non-reclining backrests | 8 degree fixed backrest angle | |
| Structural corrosion resistance | Chrome-plated finish on all metal components | |
| Modular connection capability | End frame connection points allow linked row installation | |
| Anti-skid floor contact | Non-marking nylon glide pads | |
| Low-maintenance fixed construction | No moving adjustment parts (no recline, no swivel, no tilt) | |
| Corrosion-resistant metal finish | Triple-layer chrome plating on all exposed metal components | |
| Recline Angle / Lock Reference | 125° with 3 suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 1 carton | |
|---|---|---|
| Shipping carton dimensions (L x W x H) | 1800 x 720 x 220 mm | |
| Gross shipping weight | 36 kg | |
| Shipping volume per unit (CBM) | 0.285 CBM | |
| Assembly time per unit | 30 minutes | |
| 20ft GP container loading quantity | 105 units | |
| 40ft HQ container loading quantity | 260 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Hospital and clinic waiting areas | Suitable for patient and visitor waiting, with wipeable disinfectable surfaces and durable construction for 24/7 high-traffic use | |
|---|---|---|
| Airport, train station and bus terminal waiting zones | Meets high-volume public transit seating requirements for durability, clear space definition, and minimal maintenance | |
| Office building lobbies and reception areas | Provides neat, professional guest seating with easy cleaning and stable construction for daily visitor use | |
| Government service center and bank waiting halls | Defines orderly queuing seating positions, supports long service life under heavy daily pedestrian traffic | |
| School administrative areas and public service offices | Provides durable, easy-maintenance seating for student and visitor waiting, with stable anti-tip design for mixed-age users | |
| Indoor public event and exhibition spaces | Can be linked into extended rows for temporary or permanent event seating, with fast assembly and reconfiguration capability | |
| School administrative areas and student service offices | Provides durable, easy-maintenance seating for student and visitor waiting, with stable anti-tip design for mixed-age users | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
| EN 16139:2013: Furniture - Seating for non-domestic use - Strength, durability and safety requirements | Applicable as core performance standard for non-domestic public seating load, durability and safety testing | |
|---|---|---|
| EN 1022:2018: Furniture - Seating - Determination of stability | Applicable for verifying anti-tip stability under all normal loaded seating positions | |
| EN 12727:2000: Furniture - Seating for public areas - Test methods and requirements | Applicable for public seating specific durability testing under repeated load cycles |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017: General technical requirements for metal furniture | Applicable as base acceptance standard for metal frame structural strength, finish adhesion and dimensional tolerance of this public seating unit | |
|---|---|---|
| GB 28007-2011: Safety and technical requirements for children's furniture (if used in pediatric/public family spaces) | Applicable if installed in areas accessible to children, requiring no sharp exposed edges and stable anti-tip performance | |
| GB/T 17657-2013: Test methods for evaluating surface properties of furniture finishes | Applicable for testing abrasion resistance, corrosion resistance and adhesion of the chrome-plated frame finish | |
| GB/T 39226-2020: Public furniture - Seating for waiting areas | Applicable for public waiting seating specific strength, stability and safety requirements; procurement acceptance recommendation |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture: Applicable as base acceptance standard for metal frame structural strength, finish adhesion and dimensional tolerance of this public seating unit; 2. GB 28007-2011: Safety and technical requirements for children's furniture (if used in pediatric/public family spaces): Applicable if installed in areas accessible to children, requiring no sharp exposed edges and stable anti-tip performance; 3. GB/T 17657-2013: Test methods for evaluating surface properties of furniture finishes: Applicable for testing abrasion resistance, corrosion resistance and adhesion of the chrome-plated frame finish; 4. GB/T 39226-2020: Public furniture - Seating for waiting areas: Applicable for public waiting seating specific strength, stability and safety requirements; procurement acceptance recommendation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
