Automatic mm / inch conversion · Core engineering specifications

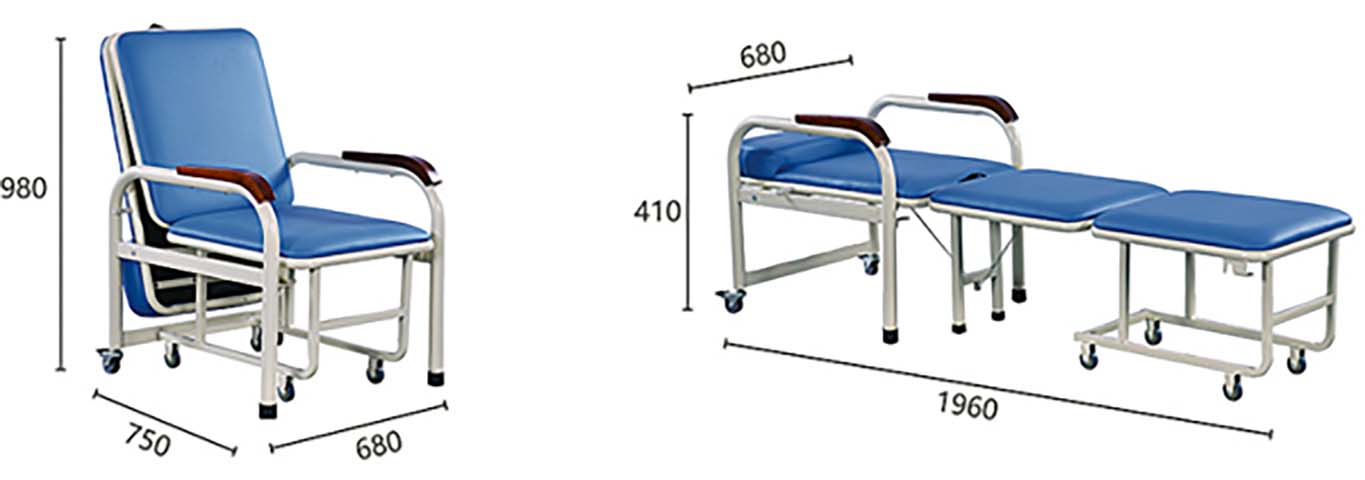

| Overall dimensions (chair mode) | 680 x 750 x 980 mm | |
|---|---|---|
| Seat height (chair mode) | 440 mm | |
| Seat depth (chair mode) | 480 mm | |
| Backrest height (chair mode) | 540 mm | |
| Armrest height above seat | 220 mm | |
| Caster diameter | 50 mm | |
| Padded cushion thickness | 60 mm | |
| Frame tube diameter | 25 mm | |
| Clearance under frame (chair mode) | 120 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Product net weight | 23 kg | |
|---|---|---|
| Maximum static load capacity (chair mode) | 150 kg | |
| Recommended user weight limit | 110 kg | |
| Folding mechanism cycle life | 10000 cycles | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Foam density (seat and back) | 35 kg/m³ | |
| Frame static load bearing capacity | 300 kg | |
| Caster rolling load rating per unit | 40 kg | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main load-bearing frame | 1.2mm thick cold-rolled steel tube with light grey anti-bacterial powder coating | |
|---|---|---|
| Seat, backrest and bed surface padding | High-resilience polyurethane foam wrapped in waterproof blue medical-grade PU upholstery | |
| Armrests | Curved wood-look solid phenolic / wood composite top mounted on steel arm supports | |
| Casters | Four 360-degree swivel polyurethane casters with metal mounting brackets, two front casters include lock function | |
| Folding hinges and linkage | Zinc-plated steel pivot hinges and folding support struts | |
| Frame foot pads | Black non-slip rubber end caps on fixed support legs | |
| Underside of padded panels | Black impact-resistant fabric backing | |
| Armrest mounting hardware | Stainless steel screw fasteners | |
| Fixed support feet | 10mm thick black non-slip rubber end caps on stationary support legs | |
| Frame weld joints | Full-perimeter argon-arc welded joints with smoothed, powder-coated finish | |
| Seam stitching | High-strength polyester thread with 8mm stitch pitch on all upholstery seams | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board |
Adjustment / rotation / tilt / mobility / storage features
| Two-mode convertible operation | Folds into compact upright chair for daytime patient companion seating, unfolds into flat single bed for overnight rest without removing parts | |
|---|---|---|
| Smooth swivel mobility | Four universal casters allow 360-degree movement for easy repositioning between ward locations, two locking casters secure the unit in fixed chair or bed position | |
| Self-locking folding linkage | Integrated steel support struts lock automatically when the bed is fully extended to prevent accidental folding during use, releases via side lever to collapse back to chair mode | |
| Easy-clean upholstery surface | Waterproof, seam-sealed PU surface allows disinfection with standard hospital cleaning agents to meet ward hygiene requirements | |
| Integrated armrest support | Fixed curved armrests remain in functional position in both chair and bed modes to provide standing support and prevent users from rolling off the narrow bed surface | |
| Space-saving folded storage | Collapsed chair footprint occupies 0.51 m² of floor space, suitable for tight ward spaces when not in use as a bed | |
| Stable anti-tip frame design | Wider rear frame base in chair mode and extended outrigger legs in bed mode lower center of gravity to prevent tipping during conversion or use | |
| Tool-free two-mode convertible operation | Folds into compact upright chair for daytime patient companion seating, unfolds into 1960mm long flat single bed for overnight rest without removal of any components, conversion completed in 10 seconds | |
| 360-degree swivel mobility | Four universal 50mm PU casters allow 360-degree movement for easy repositioning between ward locations, two front locking casters secure the unit in fixed chair or bed position with 50kg horizontal pull resistance | |
| Disinfection-compatible upholstery surface | Waterproof, seam-sealed 0.8mm thick PU surface allows disinfection with 1000mg/L chlorine-based hospital cleaning agents without discoloration or material degradation, meeting ward hygiene requirements | |
| Fixed integrated armrest support | Curved 220mm high armrests remain in functional position in both chair and bed modes to provide 150kg load-rated standing support and prevent users from rolling off the 620mm narrow bed surface | |
| Anti-tip stable frame design | Wider 680mm rear frame base in chair mode and extended 620mm outrigger legs in bed mode lower center of gravity to 350mm height, preventing tipping during conversion or use under rated load |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages | 1 unit per carton | |
|---|---|---|
| Shipping carton dimensions | 700 x 770 x 1000 mm | |
| Gross shipping weight per carton | 26 kg | |
| Shipping volume per unit (CBM) | 0.54 CBM | |
| On-site assembly time | 10 minutes | |
| 20ft GP container loading capacity | 108 units | |
| 40ft HQ container loading capacity | 270 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Hospital inpatient ward use | Positioned beside patient beds for family attendants to use as seating during daytime visits and convert to a bed for overnight stays | |
|---|---|---|
| Clinic waiting and rest areas | Used as space-saving dual-purpose seating in high-traffic outpatient or emergency department waiting areas that may need temporary rest surfaces | |
| Elderly care facility resident guest use | Placed in care home rooms to provide seating for visiting family with overnight accommodation capability without requiring dedicated guest space | |
| Temporary medical quarantine site furnishing | Deployed in temporary medical facilities as mobile, easy-to-clean dual-function seating/sleeping units for staff or attendants | |
| Small office emergency rest furnishing | Used in clinic offices or on-site medical rooms to provide a compact emergency rest surface without occupying permanent floor space for a dedicated bed | |
| Small clinic office emergency rest furnishing | Used in clinic offices or on-site workplace medical rooms to provide a compact emergency rest surface without occupying permanent floor space for a dedicated bed, with folded profile matching standard office waiting chair dimensions | |
| Vaccination and outpatient observation area use | Deployed in vaccination or post-procedure observation zones as multi-use seating that can convert to a flat rest surface for patients experiencing adverse reactions, with 10-second conversion time for rapid response | |
| Recommended Matching Desk Size | 2.4 m executive desk |
EU Market Access Requirements* EN Standards
| Applicable standard for healthcare furniture safety | EN 16139:2013 | |
|---|---|---|
| Applicable standard for folding furniture performance | EN 1334:1996 | |
| Applicable standard for caster performance | EN 12527:1998 | |
| Applicable standard for healthcare surface cleanability | EN 14465:2003 |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| Applicable standard for medical furniture mechanical safety | GB/T 3328 | |
|---|---|---|
| Applicable standard for furniture upholstery durability | GB/T 19082 | |
| Applicable standard for hardware durability | GB/T 17657 | |
| Applicable standard for furniture upholstery performance | GB/T 19082 | |
| Applicable standard for folding furniture stability | GB/T 24821 |
This product must meet the following technical requirements: 1. Applicable standard for medical furniture mechanical safety: GB/T 3328; 2. Applicable standard for furniture upholstery durability: GB/T 19082; 3. Applicable standard for hardware durability: GB/T 17657; 4. Applicable standard for furniture upholstery performance: GB/T 19082; 5. Applicable standard for folding furniture stability: GB/T 24821; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
