PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 680 × 770 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static load capacity	250 kg
Armrest vertical static load	120 kg
Design service life under normal public use	10 years
Net product weight	30 kg
Disinfectant wipe compatibility	Compatible with standard hospital-grade surface disinfectants
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and backrest panels	1.5 mm thick perforated cold-rolled steel
Main support beam	2.0 mm thick rectangular tubular steel
Armrests and leg frames	2.0 mm thick formed steel tubing
Surface finish	Electrostatic silver-grey powder coating over phosphated steel
Floor glides	Injection-molded non-slip rubber with steel insert
Joint construction	Full welded steel connections with ground smooth welds
Perforation pattern	Round punched holes arranged in vertical ventilation strips
End cap fittings	Reinforced molded polymer caps at beam and frame ends
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	3 individual defined seats with fixed dividing armrests
Positioning mechanism	Fixed non-reclining upright seat and back angle
Floor stability system	4 splayed outrigger legs with adjustable non-slip glides
Ventilation design	Perforated seat and back panels allow continuous air flow
Cleaning access	Smooth finished surfaces with open perforations support full disinfection
Floor fixing compatibility	Pre-drilled glide bases allow permanent mounting with expansion screws
Configuration expandability	Compatible with 5seat beam extensions per same product line
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Airport departure gate waiting areas	High-traffic durable construction withstands continuous heavy passenger use
Hospital and clinic waiting zones	Smooth disinfectable perforated surface meets healthcare hygiene requirements
Railway and bus station passenger halls	Fixed secure structure resists damage and supports high daily user turnover
Bank and government service lobbies	Silver neutral finish complements formal public service interior design
Office building reception waiting areas	Neat linear arrangement provides organized visitor seating with clear spacing
Indoor public space color option	Standard silver-grey finish, custom powder coat colors available for projects
Warranty coverage	3 years

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Public seating safety and strength requirements	EN 16139:2013
Metal furniture surface finish durability	EN 12720:2013
Furniture seating ergonomic dimensions	EN 1729:2015

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.4 Public and Lounge Seating

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Metal furniture surface corrosion resistance	GB/T 6461
Furniture mechanical performance for public seating	GB/T 3324
Public seating safety stability test	GB/T 10357.2
Powder coating salt spray resistance grade	Grade 10

Standardized tender description text

This product must meet the following technical requirements:
1. Metal furniture surface corrosion resistance: GB/T 6461;
2. Furniture mechanical performance for public seating: GB/T 3324;
3. Public seating safety stability test: GB/T 10357.2;
4. Powder coating salt spray resistance grade: Grade 10;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MWB-3S-PMF-1800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MWB-3S-PMF-1800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MWB-3S-PMF-1800Open Export Tool

Quick Actions

Post an RFQ

Product Description

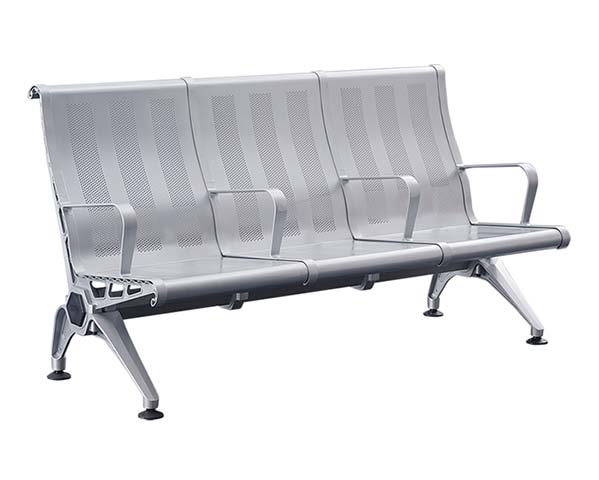

The 3-Seater Perforated Metal Public Waiting Bench with Armrests (model MWB-3S-PMF-1800, unbranded) is a purpose-built tandem seating solution for high-traffic public environments, designed for reliable long-term fixed installation. Its form features a clean linear layout with three individually defined seats separated by fixed armrests, paired with upright non-reclining seat and back panels finished in a neutral electrostatic silver-grey powder coating over phosphated steel. The perforations on seat and back panels are arranged as vertical strips of round punched holes, creating an open, streamlined visual profile while supporting continuous air flow across seating surfaces. Welded joints are ground to a smooth finish, with reinforced molded polymer end caps fitted to all beam and frame ends for a polished, snag-free appearance.
Built for heavy public use, the bench uses a robust welded steel construction: 1.5 mm thick perforated cold-rolled steel forms seat and back panels, supported by a 2.0 mm thick rectangular tubular steel main beam, with 2.0 mm thick formed steel tubing for armrests and leg frames. Four splayed outrigger legs are fitted with injection-molded non-slip rubber glides with steel inserts, with pre-drilled bases that support permanent floor mounting with expansion screws. The structure supports 250 kg per-seat static load, 120 kg vertical static load on armrests, and delivers a 10-year design service life under normal public use. Smooth finished surfaces and open perforations are fully compatible with standard hospital-grade disinfectant wipes, enabling quick, thorough cleaning between uses.
This bench is suited for airport departure gates, hospital and clinic waiting zones, railway and bus station passenger halls, bank and government service lobbies, and office building reception waiting areas, with custom powder coat color options available for project-specific interior schemes. For procurement, note that each unit is packaged across two cartons, requires 40 minutes of assembly time, and supports linear expansion with matching 5-seat beam extensions from the same product line.
