Automatic mm / inch conversion · Core engineering specifications

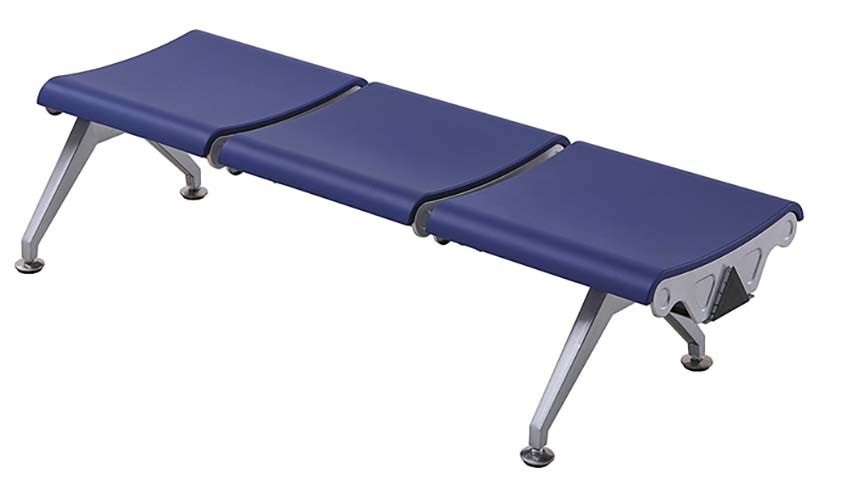

| Overall dimensions | 1780 x 680 x 450 mm | |
|---|---|---|
| Per-seat width | 580 mm | |
| Seat depth | 420 mm | |
| Seat thickness | 30 mm | |
| Support beam cross-section | 50 x 50 mm | |
| Leg spread width (front to back) | 620 mm | |
| Floor glide diameter | 75 mm | |
| Seat surface curvature depth | 20 mm | |
| Joint gap between adjacent seats | 10 mm | |
| End bracket mounting hole diameter | 12 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Static load per seat | 200 kg | |
|---|---|---|
| Total bench static load | 600 kg | |
| Net product weight | 28 kg | |
| Seat surface abrasion resistance | 50000 cycles | |
| Expected service life | 5 years | |
| Floor glide adjustment range | 15 mm | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat pad | 30mm thick self-skinned integral blue PU, waterproof and disinfectant-safe | |
|---|---|---|
| Internal seat support plate | 1.2mm thick cold-rolled steel plate welded skeleton | |
| Main support beam | 2.5mm thick powder-coated square steel tube, rust-preventive treated | |
| Support legs | ADC12 die-cast aluminum alloy, silver matte finish | |
| Floor glides | Chrome-plated steel stem with non-marking rubber base | |
| End connection brackets | 2.0mm thick die-cast aluminum with pre-drilled mounting holes | |
| Surface finish (metal parts) | Electrostatic polyester powder coating, scratch and corrosion resistant | |
| Seam/edge trim | Integral molded PU edge, no exposed stitching | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Modular seat connection | Diamond buckle anti-loosening connection between seat units and beam | |
|---|---|---|
| Floor leveling | 15mm height-adjustable glides to stabilize bench on uneven floors | |
| Expandable configuration | Pre-drilled end brackets support adding armrests or additional seat units | |
| Easy cleaning | Non-porous PU surface compatible with chlorine disinfectant wiping | |
| Fixed non-folding structure | Rigid welded/bolted gang design with no moving parts for seating | |
| Replaceable seat units | Individual seat pads can be replaced without full bench disassembly | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Airport/railway station waiting areas | High-traffic durable seating with easy-clean surface suitable for transit hubs | |
|---|---|---|
| Hospital/clinic waiting zones | Disinfectant-compatible PU surface meets medical space hygiene requirements | |
| Office reception/lobby areas | Sleek silver-blue design fits modern corporate reception environments | |
| Public service hall waiting spaces | Modular expandable design adapts to different queue layout requirements | |
| School/gym public corridors | Stable metal frame withstands frequent heavy daily public use | |
| Color option availability | 4 standard colors (blue, red, green, black) to match different space palettes |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Non-domestic seating strength and durability requirements for public areas | |
|---|---|---|
| EN 1022:2018 | Seating stability test method for free-standing public seating | |
| EN 13501-1 | Reaction to fire classification for upholstered furniture materials |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applicable to frame structural strength | |
|---|---|---|
| GB 20286-2006 | Flame retardant requirements for public furniture upholstery, recommended for PU seats | |
| GB/T 10357.3-2013 | Furniture mechanical performance test for seating, applicable to load verification |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applicable to frame structural strength; 2. GB 20286-2006: Flame retardant requirements for public furniture upholstery, recommended for PU seats; 3. GB/T 10357.3-2013: Furniture mechanical performance test for seating, applicable to load verification; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
