Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1750 x 650 x 800 mm | |
|---|---|---|
| Seat height from floor | 450 mm | |
| Single seat width per position | 550 mm | |
| Seat depth | 480 mm | |
| Backrest height | 400 mm | |
| Armrest height from seat surface | 200 mm | |
| Leg footprint spread (width direction per end frame) | 600 mm | |
| Floor clearance under seat beam | 280 mm | |
| Perforation diameter on seat/back panels | 8 mm | |
| Leg outer diameter at floor contact | 40 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
Net weight / load capacity / users / durability
| Product net weight per unit | 28 kg | |
|---|---|---|
| Static load capacity per seat position | 150 kg | |
| Recommended maximum occupancy | 3 adults | |
| Adjustable foot leveling range | 15 mm | |
| Surface corrosion resistance | 500 hours neutral salt spray resistance | |
| Durability cycle rating | 20000 seating cycles | |
| Adjustable foot leveling travel | 15 mm | |
| Powder coat neutral salt spray resistance | 500 hours | |
| Seating durability cycle rating | 20000 cycles | |
| Anti-tip stability load | 25 kg side load at armrest top |
Core acceptance fields · Panels / hardware / frame / upholstery
| Seat and back panels | 1.5mm thick cold-rolled steel plate with uniform round perforations, silver powder coated finish | |
|---|---|---|
| End frames and armrests | Die-cast aluminum alloy, powder coated silver with black anti-slip inset pad at arm support | |
| Main structural cross beam | 2.0mm thick rectangular steel tube, powder coated silver | |
| Inter-seat dividers | 1.5mm thick steel plate, finished to match seat and back panels | |
| Leveling feet | Nylon base with steel threaded stud, black non-marking floor contact pad | |
| Surface finish | Epoxy polyester powder coating, 80 micron thickness, matte silver | |
| Fasteners | Stainless steel hex bolts and lock nuts | |
| Armrest grip surface | Integral cast aluminum contoured surface with curved open loop design | |
| Seat and backrest panels | 1.5mm thick cold-rolled steel plate with uniform round perforations, matte silver epoxy polyester powder coated finish | |
| End frames and integrated armrests | Die-cast aluminum alloy, matte silver powder coated finish with black non-slip polymer inset pad at the arm support base | |
| Surface coating | Epoxy polyester powder coating, 80 micron thickness, matte silver | |
| Assembly fasteners | 304 stainless steel hex bolts and nylon insert lock nuts |
Adjustment / rotation / tilt / mobility / storage features

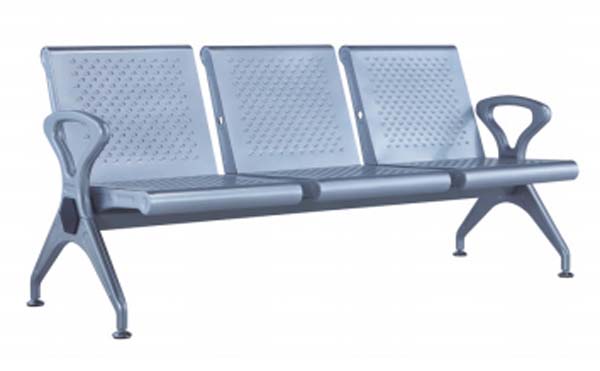

| Fixed gang seating configuration | 3 individual connected seat positions with shared structural frame, no folding or reclining mechanisms, designed for stable permanent installation in public areas | |
|---|---|---|
| Perforated ventilation design | Full perforated pattern across all seat and back panels allows air circulation, prevents heat buildup during extended waiting periods, and enables quick drainage for cleaning | |
| Floor leveling adjustment | Four adjustable threaded feet (two per end frame) allow independent height adjustment to keep the bench stable on uneven tile, concrete or carpeted floors, no permanent floor anchoring required for standard installation | |
| Inter-seat boundary design | Raised steel dividers between each seat position define individual seating space, reduces crowding and provides side support for users | |
| Armrest support function | Two end-mounted contoured armrests provide upper body support, and assist users with standing and sitting; open loop design prevents trapping of bags or personal items | |
| Anti-tip structural design | Splayed leg geometry on both end frames creates a wide stable footprint, preventing forward or sideways tipping even when users lean on armrests or seat edges | |
| Fixed rigid gang seating structure | 3 permanently connected individual seat positions on a shared structural frame, no folding, reclining or moving seat mechanisms, designed for permanent public area installation with no removable parts | |
| Perforated panel ventilation and drainage | Uniform 8mm perforations across all seat and back panels allow continuous air circulation to prevent heat buildup during extended waits, and enable quick liquid drainage and wipe-down cleaning for high-turnover spaces | |
| Independent floor leveling adjustment | 4 adjustable threaded feet (two per end frame) allow 15mm independent vertical adjustment to keep the bench stable on uneven tile, concrete or low-pile carpet without permanent floor anchoring for standard installation | |
| Inter-seat space separation | Raised steel dividers between each seat position define dedicated 560mm wide individual seating spaces, reduces overcrowding and provides subtle lateral support for seated users | |
| End armrest support assistance | Two contoured end-mounted armrests provide 200mm high upper limb support, and act as stable push points for elderly or mobility-impaired users to sit and stand; open loop design eliminates enclosed gaps that could trap bags or personal items | |
| Anti-tip splayed leg design | Angled splayed legs on each end frame create a 620mm wide stable floor footprint, preventing forward or sideways tipping even when users lean fully on armrests or seat edges |
Verified carton / gross weight / assembly / loading data
| Number of shipping packages per unit | 1 | |
|---|---|---|
| Shipping carton dimensions | 1800 x 700 x 220 mm | |
| Gross shipping weight per unit | 32 kg | |
| Shipping volume per unit | 0.277 CBM | |
| Assembly time per unit | 30 minutes | |
| 20ft GP container loading quantity | 110 units | |
| 40ft HQ container loading quantity | 270 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm |
Recommended spaces / users / usage modes
| Hospital and clinic waiting areas | All-metal non-porous construction supports frequent disinfection, resists staining from spills and heavy daily use, provides comfortable short-term seating for patients and visitors | |
|---|---|---|
| Airport, bus and train station terminals | Durable metal construction withstands high-volume continuous use, perforated surfaces remain comfortable over long wait times, anti-tip design meets public transit safety requirements | |
| Government office and public service hall queuing areas | Neutral silver finish fits formal public environments, fixed gang configuration maintains orderly seating lines, easy to clean between visitor use | |
| Bank and retail branch customer waiting zones | Sturdy construction supports constant daily use, armrests provide accessible support for elderly or mobility-impaired customers, minimal maintenance requirements reduce operational cost | |
| Outdoor covered public waiting shelters | Powder-coated metal construction resists corrosion from moisture and ambient weather when installed under covered areas, perforated surfaces drain quickly after rain | |
| School administration and campus common areas | Rigid tamper-resistant construction prevents damage from heavy student use, open design avoids hidden storage of prohibited items, easy to wipe clean between use | |
| Hospital and outpatient clinic waiting areas | Non-porous all-metal construction supports repeated disinfection with clinical-grade cleaners, resists staining from spills, and provides durable short-term seating for patients and visitors with no fabric components to harbor contaminants | |
| Airport, bus and intercity rail terminal waiting zones | Rigid metal construction withstands 24/7 high-volume continuous use, perforated surfaces remain comfortable across extended wait times, anti-tip design meets public transit safety requirements for unattended public spaces |
EU Market Access Requirements* EN Standards
| EN 16139:2013 | Furniture - Strength, durability and safety requirements for non-domestic seating, applies to commercial public waiting seating load and stability testing | |
|---|---|---|
| EN 13722:2004 | Furniture - Test methods for seating - Determination of structural strength, applies to cyclic load and impact testing of frame and seat components |
US and Canada office-furniture standards
| North America procurement and testing reference | ANSI/BIFMA X5.4 Public and Lounge Seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for metal furniture, applies to dimensional stability, structural strength and finish quality verification of this metal waiting bench | |
|---|---|---|
| GB/T 10357.3-2013 | Furniture mechanical performance test for seating, applies to static load, impact and durability testing of seat, back and armrest components | |
| GB 28007-2011 | Safety requirements for public furniture, applies to edge rounding, anti-tip stability and hazard elimination for high-traffic public area seating |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for metal furniture, applies to dimensional stability, structural strength and finish quality verification of this metal waiting bench; 2. GB/T 10357.3-2013: Furniture mechanical performance test for seating, applies to static load, impact and durability testing of seat, back and armrest components; 3. GB 28007-2011: Safety requirements for public furniture, applies to edge rounding, anti-tip stability and hazard elimination for high-traffic public area seating; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
