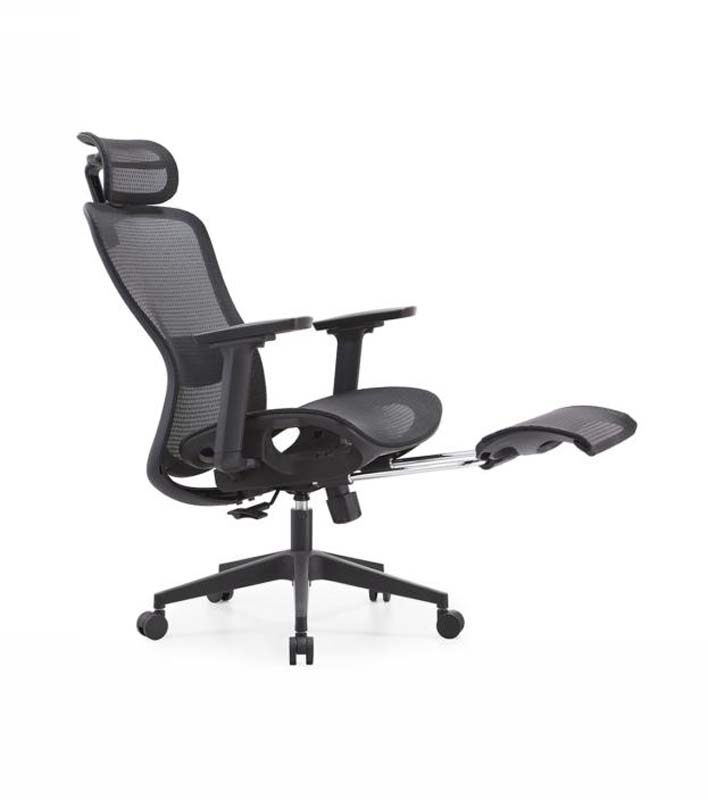

Name: Black Mesh Ergonomic Reclining Office Chair with Headrest and Pull-out Footrest
Brand: FENGGUAN
SKU: 0KRFHU

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 1280 × 1320 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	18 kg
Recommended user weight capacity	150 kg
Recommended user height range	160 to 190 cm
Back recline range	110 to 140 degrees
Gas-lift stroke	80 mm
Back static load acceptance target	136 kg
Caster rolling durability target	100000 cycles
Seat cyclic durability target	100000 cycles
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest construction	Black flexible woven mesh tensioned over a contoured engineered-polymer outer frame
Seat support	Breathable black mesh or molded polymer sitting surface mounted on a reinforced polymer seat shell
Frame and back supports	Injection-molded black engineered polymer with integrated side bolsters and lower lumbar curve
Headrest	Black mesh support panel inside a curved polymer frame with adjustable bracket
Arm system	Height-adjustable polymer arm posts with flat black padded arm caps
Recline and footrest hardware	Steel synchro-tilt mechanism with polished chrome telescopic rails and black polymer leg-rest platform

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Synchronized recline	Back and seat move together through a 140-degree maximum recline using the visible underside tilt mechanism
Pull-out leg rest	Twin chrome rails extend the black ribbed footrest 420 mm and fold the platform upward for calf support
Height and tension control	Pneumatic seat-height lever and rear tilt-tension knob provide 80 mm lift travel and adjustable back resistance
Arm and head support adjustment	Height-adjustable armrests and an 80 mm adjustable headrest align upper-body support during upright or reclined work

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive or knowledge-worker workstation	Suitable for long computer tasks because the high mesh back, adjustable headrest and armrests support seated posture changes
Private office or quiet recline break area	The pull-out footrest and 140-degree recline support short rest periods without converting to a separate lounge seat

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 dimensions	Use office chair dimensional and measurement requirements for seat, back, clearance and adjustment verification
EN 1335-2 safety	Apply structural safety, stability and caster requirements for a swivel office chair
EN 1335-3 test methods	Use strength, durability and backrest test methods for batch inspection
EN 1022 stability	Apply seating stability test methods to upright and reclined positions with the footrest extended

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 base and caster load	Specify five-star base, caster and drop-load validation for the 680 mm base

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 furniture mechanical testing	Apply chair back-strength and durability test methods for procurement verification
GB/T 10357.3 furniture mechanical testing	Apply chair arm and leg vertical/horizontal strength methods to arm posts and five-star base
GB/T 27924 laboratory furniture	Use as a supplementary industrial-chair quality reference where applicable to seating adjustment and stability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 furniture mechanical testing: Apply chair back-strength and durability test methods for procurement verification;
2. GB/T 10357.3 furniture mechanical testing: Apply chair arm and leg vertical/horizontal strength methods to arm posts and five-star base;
3. GB/T 27924 laboratory furniture: Use as a supplementary industrial-chair quality reference where applicable to seating adjustment and stability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMH-FR-660B

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMH-FR-660B

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMH-FR-660BOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The FENGGUAN EMH-FR-660B is a black high-back ergonomic office chair designed for users who want structured task support and an integrated recline-and-rest function. Its visual character is defined by a tall flexible mesh back, contoured black polymer framing, a matching mesh headrest, flat padded arm caps, and a swivel base suited to a modern workstation. The pull-out footrest remains concealed beneath the seat until deployed, keeping the chair’s appearance appropriate for an office setting. The backrest uses black flexible woven mesh tensioned over a contoured engineered-polymer outer frame, with integrated side bolsters and a lower lumbar curve. The seat combines breathable black mesh or a molded polymer sitting surface with a reinforced polymer seat shell. Its cushion is 90 mm thick, while the backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. The clear width between armrests is 540 mm. A steel synchro-tilt mechanism, polished chrome telescopic rails, gas lift, swivel base, and black polymer leg-rest platform form the main functional hardware. The chair weighs 18 kg and is specified for a user weight capacity of 150 kg and user heights from 160 to 190 cm. Operation is centered on a synchronized recline that moves the back and seat together to a 140-degree maximum angle using the visible underside tilt mechanism. A rear tilt-tension knob allows back resistance to be adjusted, while the pneumatic seat-height lever provides 80 mm of lift travel. The twin chrome rails extend the black ribbed footrest 420 mm, and the platform folds upward to support the calves. Height-adjustable armrests and an 80 mm adjustable headrest help align support for upright work, reclined reading, or short breaks. The model is well suited to executive desks, knowledge-worker workstations, private offices, home offices, and quiet recline break areas. It supports long computer tasks through the high mesh back, adjustable headrest, and adjustable arms, while the footrest and recline provide a compact rest option without requiring a separate lounge seat. Procurement teams should note that each set ships in two cartons, with a packaged gross weight of 23 kg, a reference carton volume of 0.26 m³, and a reference assembly time of 40 minutes. The stated 20GP loading figure is 135 sets at 85 percent space utilization. Buyers should also plan for recipient height and weight suitability, confirm whether the mesh or molded polymer seat surface is supplied, and allocate time for on-site assembly and adjustment of tilt tension, arm height, headrest position, and footrest operation.

Black Mesh Ergonomic Reclining Office Chair with Headrest and Pull-out Footrest Specifications
