PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	635 × 640 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	15.5 kg
Recommended user weight capacity	120 kg
Seat static load verification target	113 kg
Backrest dynamic tilt cycles	120000 cycles
Gas-lift height adjustment cycles	100000 cycles
Caster rolling durability	100000 cycles
Seat foam density	45 kg/m3
Seat foam rebound	40 percent
Fabric abrasion resistance	50000 Martindale cycles
Warranty	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Black elastic mesh over a contoured polymer outer frame
Seat cushion	Molded polyurethane foam with black woven fabric upholstery
Armrests	Fixed T-shaped polymer arm supports with padded flat contact surfaces
Internal seat shell	12 mm molded plywood or polymer load-bearing shell under cushion
Tilt mechanism	Black powder-coated steel tilt plate with visible side tension knob
Gas lift	Chromed steel telescopic gas cylinder with black outer collar

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift provides 90 mm vertical travel through the right-side lever
Recline and lock	Synchronized seat-and-back tilt operates to 108 degrees with a single-position tilt lock
Tension control	Rotary underside knob adjusts backward recline resistance for users up to 120 kg
Swivel and mobility	360-degree swivel seat with five 60 mm twin casters on hard floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Gross weight per carton	17.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstation	Suitable for 440 to 530 mm desk-height workstations because of the pneumatic seat lift and rolling five-star base
Meeting or computer work area	Fixed arms, breathable mesh back and compact 635 mm footprint suit shared desks, training rooms and home offices

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1	Recommended dimensional safety standard for office work chairs
EN 1335-2	Recommended safety requirements for office task chairs
EN 1335-3	Recommended test methods for office work chairs

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1	Recommended general-purpose office chair safety and durability standard
ANSI/BIFMA e3	Recommended multi-attribute sustainability framework for furniture chemicals, energy and materials

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2	Recommended test standard for furniture mechanical properties on chair backrest strength and durability
GB/T 10357.3	Recommended test standard for chair seat and stool strength and durability

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2: Recommended test standard for furniture mechanical properties on chair backrest strength and durability;
2. GB/T 10357.3: Recommended test standard for chair seat and stool strength and durability;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · TASK-MESH-FA-BK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · TASK-MESH-FA-BK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · TASK-MESH-FA-BK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

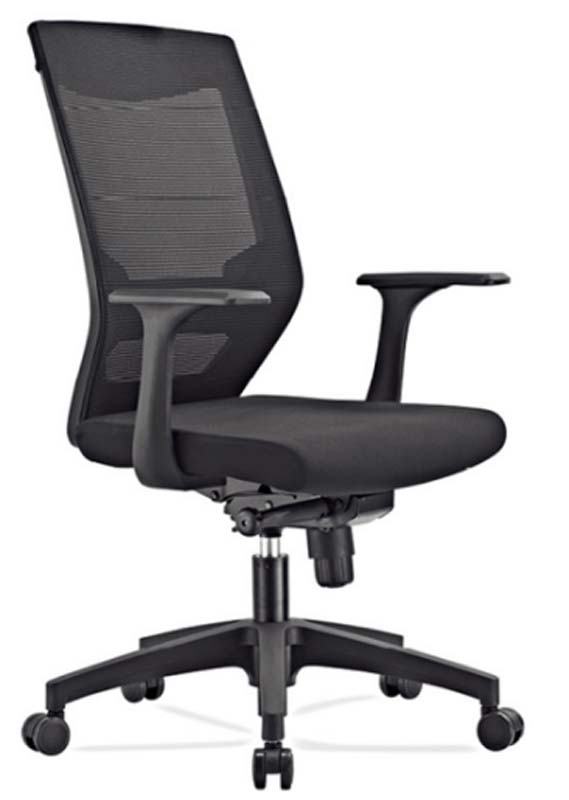

The Black Mesh Ergonomic Task Chair with Fixed Arms is an unbranded office seating solution designed for everyday desk-based work. Its visual profile combines a black breathable mesh back, a black fabric-upholstered seat, fixed T-shaped arms, and a five-star rolling base. The contoured polymer outer frame gives the backrest a structured appearance, while the chromed steel gas cylinder and black powder-coated steel tilt plate provide a functional contrast beneath the seat. The chair measures 635 millimeters wide, 640 millimeters deep, and 1010 millimeters high, with a 540-millimeter clear width between the armrests. Construction centers on a black elastic mesh backrest for airflow and a molded polyurethane foam seat covered in black woven fabric. The finished cushion is 90 millimeters thick, uses 45 kilograms per cubic meter foam, and rests on a 12-millimeter molded plywood or polymer load-bearing shell. Backrest padding is 70 millimeters thick, and the lumbar support zone is 240 millimeters high. Fixed polymer armrests include padded flat contact surfaces, while the polymer five-star base carries five 60-millimeter twin-wheel casters. A chromed telescopic steel gas lift with a black outer collar connects the seat to the base. Practical operation is handled by a right-side lever for pneumatic height adjustment, offering 90 millimeters of vertical travel. The synchronized seat-and-back tilt reaches 108 degrees and includes a single-position tilt lock. A visible side or underside rotary knob adjusts backward recline resistance, and the 360-degree swivel seat supports easy movement between work areas. Durability targets include a recommended user weight capacity of 120 kilograms, 120,000 backrest dynamic tilt cycles, 100,000 gas-lift height adjustment cycles, and 100,000 caster rolling cycles. The chair is suited to open-plan office workstations at desk heights of 530 millimeters and below within the stated range, as well as meeting spaces, computer work areas, training rooms, shared desks, and home offices. Its compact 635-millimeter footprint and fixed arms make it appropriate for planned rows or shared bench layouts where consistent arm positioning is preferred. Procurement planning should note that each set is supplied unbranded under model TASK-MESH-FA-BK-01 and ships in two cartons. Reference packaged weight is 23 kilograms per set, carton volume is 0.26 cubic meters per set, and reference assembly time is 40 minutes per set. The chair is intended for use with hard-floor casters as specified, so buyers should assess floor type, workstation height, assembly resources, and bulk delivery handling before purchase.

Black Mesh Ergonomic Task Chair with Fixed Arms Specifications
