PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 1290 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Net weight reference	18 kg
Seat foam thickness	80 mm
Seat foam density	45 kg/m3
Back mesh load deflection reference	25 kg centered lateral support
Gas-lift cycles	100000 height-adjustment cycles
Caster rolling durability	100000 cycles
Backrest recline range	135degrees
Recommended user height range	190 cm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Black flexible mesh stretched over a framed polymer outer back with integrated lumbar curve
Seat cushion	Black upholstered foam cushion over a polymer or plywood seat pan
Headrest	Mesh-faced curved pad on a black polymer housing and adjustable bracket
Armrests	Black fixed-height polymer arm pads supported by vertical polymer or steel posts
Base and casters	Black five-star base with five twin-wheel swivel casters
Lift and footrest hardware	Black or dark steel central column, recline mechanism, and telescoping footrest rails

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises or lowers the seat through a 100 mm stroke from 460 to 560 mm
Recline and lock	Multi-position synchro-tilt mechanism reclines to 135 degrees and locks at selected working angles
Pull-out leg rest	Twin telescoping rails extend the padded footrest 420 mm forward for reclined resting
Swivel and mobility	360-degree swivel seat and five 60 mm twin-wheel casters provide floor movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive or workstation office use	Suits desk workers needing recline, lumbar support, head support, and intermittent leg rest during breaks
Home office and private workroom use	Fits users seeking one chair for focused work and reclined rest without a separate recliner

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-FT-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-FT-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-FT-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

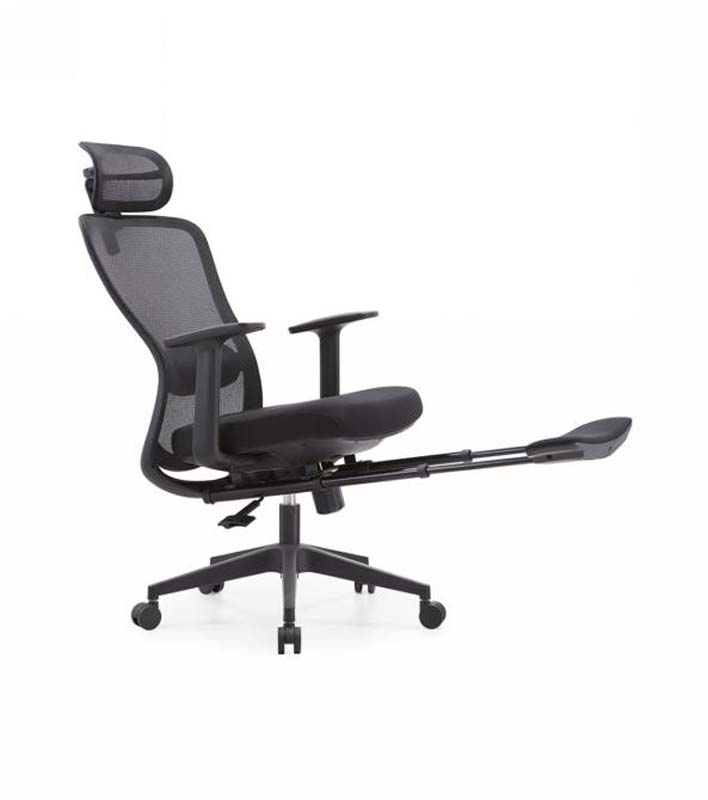

The Black Mesh Reclining Ergonomic Office Chair combines task-chair support with a built-in rest posture, presented in a coordinated black finish. Its high-back form uses a flexible mesh backrest and matching mesh headrest, while the upholstered foam seat gives a softer visual and tactile contrast. The integrated lumbar curve creates a defined support zone, and the curved headrest is mounted on an adjustable bracket. Fixed-height armrests frame the seat, leading down to a five-star base with twin-wheel swivel casters and a central gas-lift column. When required, the padded footrest extends from beneath the seat on twin telescoping rails, giving the chair a recliner-like profile without changing its primary office appearance. The backrest is constructed from black flexible mesh stretched over a framed polymer outer back. The seat uses black upholstered foam over a polymer or plywood seat pan, and the arm pads are black polymer supported by vertical polymer or steel posts. The headrest combines a mesh-faced pad with a black polymer housing, while the base is a black five-star structure fitted with five twin-wheel casters. Steel is used in the central lift hardware, recline mechanism, and footrest rails, balancing visible comfort components with concealed structural support. Functional adjustment is centered around daily office use. A pneumatic lever controls seat height through a 100 mm stroke, accommodating different desk and user proportions. The multi-position synchro-tilt mechanism allows the chair to recline to 135 degrees and lock at selected working angles. For breaks, the pull-out leg rest extends 420 mm forward, supporting reclined resting without requiring a separate lounge chair. A 360-degree swivel seat and rolling casters support movement around a workstation. With a 150 kg recommended user weight capacity, this model is suited to executive desks, individual workstations, private offices, home offices, and workrooms where one chair must serve focused tasks and occasional relaxation. It is particularly appropriate for users who want lumbar, head, and leg support in a single seating solution. Procurement teams should note that each set is supplied in two cartons with a packaged gross weight of 23 kg and reference assembly time of 40 minutes. The model number is ERG-MESH-FT-BLK-01, and the chair is unbranded, making it suitable for environments where a neutral product identity is preferred. Planning should allow space behind the chair for reclining and space in front for the extended footrest.

Black Mesh Reclining Ergonomic Office Chair with Headrest and Pull-Out Footrest Specifications
