PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	610 × 620 × 1020 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	12.5 kg
Recommended user weight capacity	120 kg
Gas-lift vertical stroke	100 mm
Swivel rotation	360 degrees
Back tilt range	12 degrees
Caster rolling durability target	100000 cycles
Gas-lift cyclic durability target	100000 height-adjustment cycles
Seat static load verification target	1100 N
Backrest pull-back verification target	670 N
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Blue flexible woven mesh stretched within a framed back support
Seat upholstery	Blue woven fabric over a contoured padded cushion
Seat cushion core	Molded polyurethane foam, 70 mm thick with 45 kg/m3 procurement density
Back support structure	Black or dark inner support shell behind the lower blue mesh section
Arm and seat frame	White coated loop arms and perimeter seat frame, 2.0 mm steel-tube equivalent target
Five-star base	White nylon-composite or coated steel five-star base with 330 mm radial leg length

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever raises or lowers the seat through 100 mm between 440 mm and 540 mm floor height.
Back tilt control	Side lever operates the seat tilt mechanism, with a 12-degree procurement target and lockable upright position.
Mobility	Five twin-wheel casters support omnidirectional movement on a 600 mm diameter base for carpet or hard floors.
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suitable for individual desks where swivel access, height adjustment, and compact caster mobility are required.
Meeting and training rooms	Blue fixed-arm task seating suits shared daily seating where easy movement and visual coordination are needed.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1 applicability	Use for office-chair dimensions, safety clearances, and adjustability verification.
EN 1335-2 applicability	Use for structural safety, stability, caster, and mechanism performance requirements.
EN 1335-3 applicability	Use as the test-method reference for static load, durability, and back-rest verification.
EN 1021-1 and EN 1021-2 applicability	Specify cigarette and match ignition testing only when flame-retardant upholstery is required.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1 applicability	Use for back, seat, base, arm, caster, and swivel durability verification in commercial projects.
ANSI/BIFMA X5.4 applicability	Consider only if the chair is reclassified as lounge seating; not appropriate for this task chair.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.3 applicability	Use for chair strength and durability testing of the seat, back, arms, and frame during procurement acceptance.
GB/T 27717-2011 applicability	Apply to office-chair safety, stability, dimensional fit, and mechanism inspection where the supplier targets China.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.3 applicability: Use for chair strength and durability testing of the seat, back, arms, and frame during procurement acceptance.;
2. GB/T 27717-2011 applicability: Apply to office-chair safety, stability, dimensional fit, and mechanism inspection where the supplier targets China.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-BLUE-WHITE-50

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-BLUE-WHITE-50

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-BLUE-WHITE-50Open Export Tool

Quick Actions

Post an RFQ

Product Description

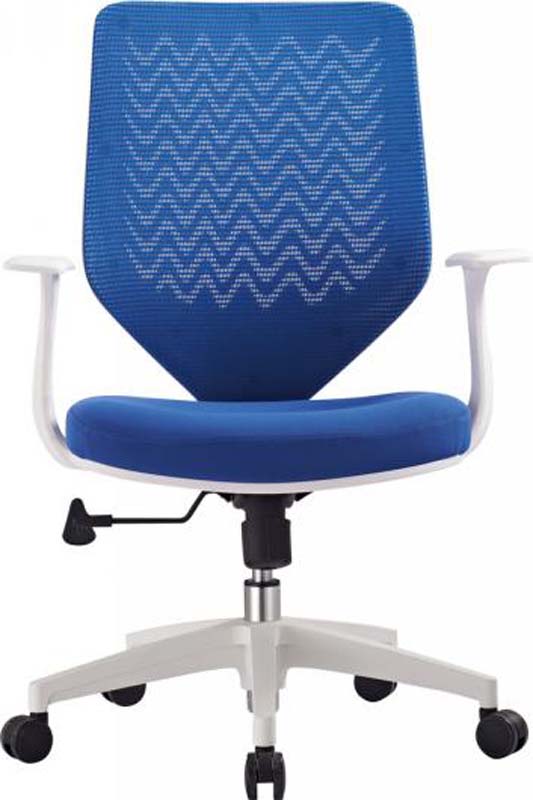

The Blue Mesh Swivel Task Chair combines a clean blue-and-white office appearance with practical movement for daily desk use. Its blue flexible woven mesh back is stretched within a framed support, while the blue woven-fabric seat presents a soft, coordinated surface. A black or dark inner support shell behind the lower mesh section provides structural definition, and the white coated loop arms and perimeter seat frame create a light, contemporary contrast. The chair rests on a white five-star caster base, with black twin-wheel casters and a chrome-finished gas lift adding functional visual accents. Fixed loop arms contribute to the orderly silhouette and give users consistent side support. Construction balances cushioned comfort with a purpose-built support structure. The contoured seat uses molded polyurethane foam with a finished cushion thickness of 90 mm and a specified cushion core thickness of 70 mm at a 45 kg/m3 procurement density. The backrest includes 70 mm of padding and a 240 mm high lumbar support zone. The white frame is specified as painted metal or molded construction, with the arm and seat frame based on a 2.0 mm steel-tube equivalent target. Buyers may receive a nylon-composite or coated steel five-star base with 330 mm radial leg length. The chair weighs 12.5 kg and is intended for users up to 120 kg. Everyday operation is centered on swivel, height, tilt, and mobility. A pneumatic lever adjusts seat height through a 100 mm gas-lift stroke, setting the seat between 440 mm and 540 mm above the floor. The chair rotates 360 degrees, and a side lever controls the tilt mechanism, with a 12-degree procurement target, a lockable upright position, and a 125-degree recline reference with three suggested lock positions. Five twin-wheel casters provide omnidirectional movement across the 600 mm diameter base footprint for carpet or hard floors. Durability targets include 100000 caster rolling cycles and 100000 gas-lift height-adjustment cycles. With 540 mm of clear width between armrests, the model is well suited to open-plan office workstations where users need swivel access, height adjustment, and compact rolling mobility. It is also appropriate for meeting and training rooms requiring shared daily seating with easy movement and a coordinated blue-and-white look. Procurement teams should note the unbranded product, model OC-MESH-BLUE-WHITE-50, and possible material or color-related supply variations. Each set ships in two cartons with packaged gross weight of 23 kg, carton dimensions of 850 by 420 by 720 mm, total volume of 0.26 m3, and a reference assembly time of 40 minutes. The indicative loading quantity is 135 sets in a 20GP container at 85 percent space utilization.

Blue Mesh Swivel Task Chair with White Frame and Five-Star Base Specifications
