PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Chair net weight	13.5 kg
Seat foam density	45 kg/m3
Back mesh tensile acceptance	120 N minimum warp and weft breaking force
Fabric abrasion acceptance	50,000 Martindale cycles
Caster rolling durability acceptance	100,000 cycles
Gas-lift durability acceptance	100,000 height-adjustment cycles
Base static load acceptance	1,136 kg vertical proof load
Seat static load acceptance	1,590 kg downward proof load
Warranty target	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Black flexible polymer mesh with chevron open-weave pattern, tensioned in a black molded frame
Seat cushion	Beige woven fabric over shaped foam padding with black underside seat shell
Armrests	Black injection-molded polymer fixed arms with integrated top pads and tapered supports
Seat mechanism	Black steel-and-polymer tilt mechanism with side lever and tension knob
Gas lift	Chrome-plated telescopic steel gas lift with black plastic actuator collar
Five-star base	Polished die-cast aluminum five-star swivel base with curved tapered legs

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the visible side lever, with a 100 mm working stroke and 540 mm seat-height range
Recline function	Center-tilt mechanism allows the seat and back to rock together to 108 degrees maximum recline, with tension adjusted by the visible under-seat knob
Mobility	Five 50 mm twin-wheel casters provide rolling movement on hard floors and low-pile carpets
Backrest tilt range	108degrees from horizontal seat plane

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 620 x 330 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation use	Suitable for individual office workstations, hot desks and administrative seats where swivel access and basic recline are required
Meeting and study spaces	Suitable for conference rooms, home studies and shared work areas with hard floors or low-pile carpet

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MB-MESH-BG-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MB-MESH-BG-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MB-MESH-BG-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

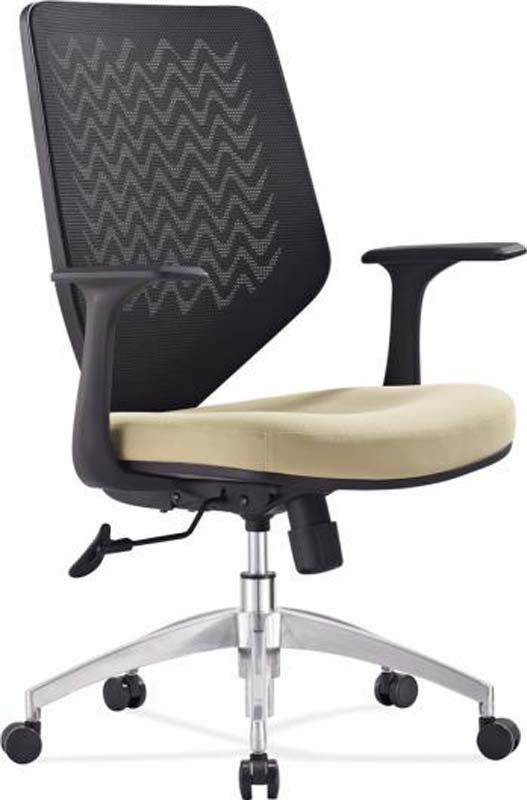

The Mid-Back Mesh Swivel Office Chair, model OC-MB-MESH-BG-01, presents a clean task-chair silhouette defined by a black mesh back, beige upholstered seat, fixed black armrests, and a polished aluminum five-star base. Its contrasting black-and-beige finish gives it a understated commercial appearance, while the open mesh back provides visual lightness in workspaces where a less bulky chair is preferred. The armrests frame the seat with tapered supports and integrated top pads, and the caster base creates a familiar, mobile office layout suited to single-user desks as well as shared seating positions. The backrest uses black flexible polymer mesh in a chevron open-weave pattern, tensioned within a black molded frame. The seat combines beige woven fabric over shaped foam padding with a black underside shell; the finished cushion is 90 mm thick, and the backrest padding is 70 mm thick. Fixed armrests are produced from black injection-molded polymer, while the tilt mechanism combines black steel and polymer with a visible side lever and tension knob. Height adjustment is handled by a chrome-plated telescopic steel gas lift with a black actuator collar. The polished die-cast aluminum base features curved tapered legs and five twin-wheel casters. Everyday function is centered on swivel access, pneumatic seat-height adjustment, and center-tilt recline. The side lever operates the gas lift, which offers a 100 mm working stroke and a seat-height range reaching 540 mm. The center-tilt mechanism allows the seat and back to rock together, with a maximum recline of 108 degrees from the horizontal seat plane; an under-seat knob adjusts tilt tension. The 50 mm twin-wheel casters support movement on hard floors and low-pile carpets. The chair is rated for a recommended user weight capacity of 120 kg and has a net weight of 13.5 kg. This model is appropriate for individual office workstations, hot desks, administrative seats, conference rooms, home studies, and shared work areas. Its restrained color scheme fits neutral desk systems, meeting rooms, and residential study spaces without requiring a particular wood or metal finish elsewhere. For procurement, the specified overall dimensions are 630 x 620 x 1010 mm, with 540 mm of clear width between the armrests. Buyers should plan for assembly, with a reference time of 40 minutes per set. Packaging is listed as one set across two cartons, with a reference packaged gross weight of 23 kg and reference carton volume of 0.26 m³. Material and durability acceptance values include 45 kg/m³ seat foam, fabric abrasion acceptance of 50,000 Martindale cycles, mesh breaking force acceptance of 120 N minimum in warp and weft, and caster and gas-lift durability acceptance of 100,000 cycles.

Mid-Back Mesh Swivel Office Chair with Beige Upholstered Seat Specifications
