PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	640 × 640 × 1040 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight	120 kg
Net weight	13.5 kg
Seat static-load verification	160 kg
Backrest backward static-load verification	91 kg
Armrest downward static-load verification	68 kg per arm
Caster rolling durability	100000 cycles
Gas-lift durability	100000 height-adjustment cycles
Tilt mechanism durability	300000 cycles
Seating capacity	1 person
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support fabric	Black flexible mesh with visible woven open structure
Back frame	Injection-molded black polymer outer frame with integrated side supports
Seat upholstery	Black woven fabric over shaped foam cushion
Seat cushion foam	80 mm molded polyurethane foam, 45 kg/m3 procurement density target
Lumbar support	Separate black padded polymer or foam lumbar panel attached to mesh back
Armrests	Fixed black polymer T-arms with flat pads and vertical supports

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with side paddle, 100 mm engineering stroke and 520 mm seat range
Swivel movement	360-degree swivel around the central gas-lift column
Tilt and tension control	Center tilt with rear lever and under-seat tension knob, 12-degree maximum recline target
Fixed arm support	Static T-arm rests at 220 mm above the seat; no arm-height, width, or pivot adjustment is visible

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 620 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for individual desks, shared workstations, and administrative seating where mesh airflow and swivel mobility are required.
Meeting or study area use	Suitable for hot desks, training rooms, home offices, and daily conference seating with hard-floor or low-pile carpet surfaces.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-FA-50B

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-FA-50B

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-FA-50BOpen Export Tool

Quick Actions

Post an RFQ

Product Description

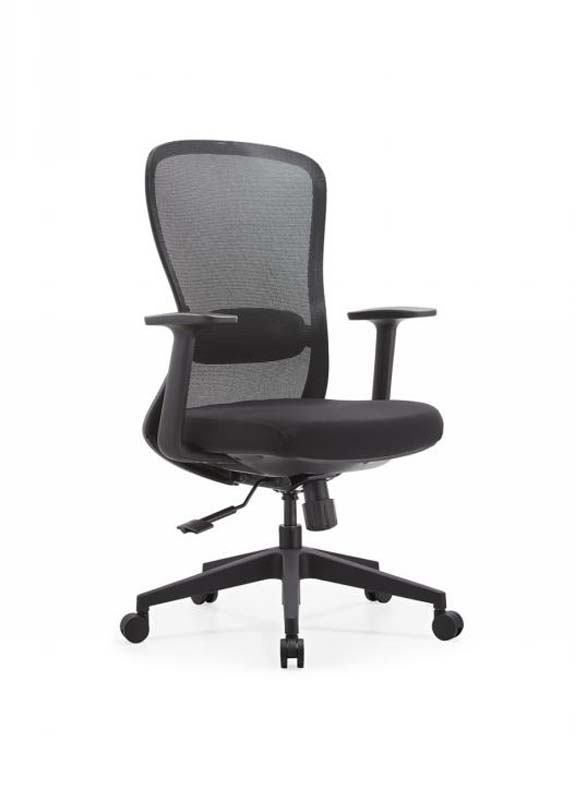

The Black Mesh Swivel Task Chair with Fixed Arms and Lumbar Pad is a practical office chair designed for regular desk use, combining an open mesh back with a padded seat and a structured five-star base. Model OC-MESH-FA-50B is supplied without a brand label and presents a coordinated black finish suited to neutral office interiors. Visually, the chair features a contoured black mesh back set within an injection-molded polymer frame with integrated side supports. The mesh has a visible woven open structure, giving the backrest a lightweight appearance while allowing air circulation. A separate padded lumbar panel is attached to the back, defining a clear support zone. The black upholstered seat, fixed T-shaped arms, and black nylon five-star base create a consistent commercial look. The seat uses black woven fabric over a shaped foam cushion with a molded polyurethane core and a finished cushion thickness of 90 mm. The backrest padding measures 70 mm thick, while the fixed polymer armrests provide flat pads on vertical supports. Mobility is supported by twin-wheel casters, and height adjustment is handled by a steel gas lift with a side paddle. The chair swivels 360 degrees and includes center-tilt movement controlled by a rear lever, with an under-seat tension knob for recline resistance. With fixed arms, the chair offers straightforward support without arm-height, width, or pivot adjustment. The armrests leave 540 mm of clear width between them and are positioned for consistent upper-body support during typing, meeting, or study tasks. The lumbar pad gives targeted lower-back contact, making the chair appropriate for users who prefer a defined support point without a fully adjustable mechanism. This model is well suited to individual desks, shared workstations, administrative seating, hot desks, training rooms, meeting areas, home offices, and daily conference seating. It is intended for hard-floor or low-pile carpet surfaces where rolling access and swivel mobility are useful. For procurement, the recommended user weight is 120 kg, while the chair’s static-load verification covers 160 kg for the seat, 91 kg for the backrest, and 68 kg downward load per arm. Caster rolling durability and gas-lift durability are each rated at 100000 cycles. Buyers should plan for assembly, with a reference time of 40 minutes per set, and note that packaged information indicates one set across two cartons with a packaged gross weight of 23 kg. These details make the chair a functional choice for projects requiring consistent, budget-oriented task seating without specifying a consumer-facing brand.
