PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Suggested user height range	188 cm
Seat foam thickness	70 mm
Seat foam density	45 kg/m3
Back mesh tension bands	3 horizontal support zones
Swivel rotation	360 degrees
Caster rolling durability target	100000 cycles
Gas-lift durability target	100000 height-adjustment cycles
Base static-load verification target	1134 kg
Warranty target	5 years frame and mechanism, 2 years upholstery

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Breathable black woven mesh tensioned in a black molded polymer or resin back frame
Seat cushion	Black woven fabric over 70 mm molded foam with a concealed plywood or molded-composite seat shell
Headrest	Curved black mesh or fabric-faced pad on a molded black shell with a steel or polymer bracket
Armrests	Fixed black molded polymer T-arms with integrated flat elbow pads
Lift column	Chrome-finish steel gas-lift with a black telescopic trim sleeve
Mechanism	Black steel tilt mechanism with a visible side tension or lock control

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke between 440 and 540 mm
Synchronized recline	Backrest tilts up to 18 degrees with coordinated seat movement and position lock through the under-seat mechanism
Tension control	Rear rotary knob adjusts recline resistance for user weight and push-back force
Headrest positioning	Independent headrest adjusts 90 mm vertically and pivots to support the neck during reclined work or breaks

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	840 x 650 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation	Suitable for individual open-plan desks, private offices, and home offices where a breathable high back, neck support, and swivel mobility are required
Meeting and study spaces	Suitable for conference rooms, study rooms, and shared computer desks used in shifts of 8 hours

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MB-HB-HR-5P-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MB-HB-HR-5P-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MB-HB-HR-5P-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

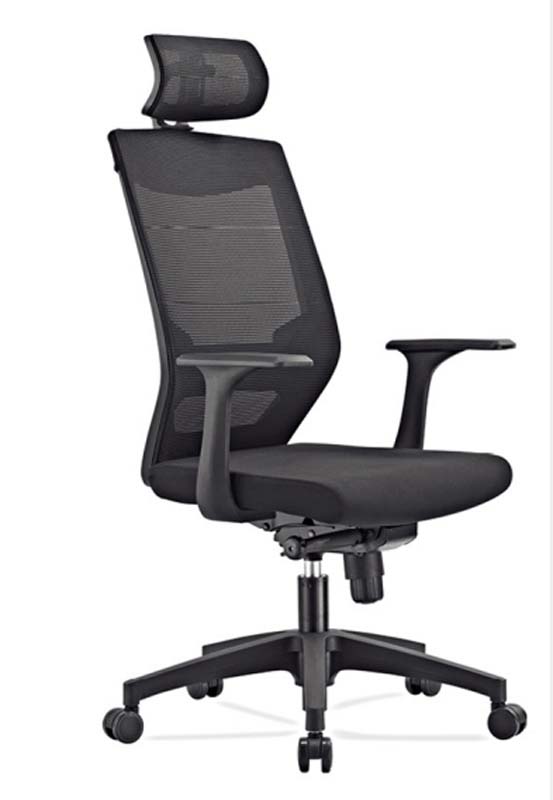

The Black Mesh High-Back Ergonomic Task Chair with Headrest, model MB-HB-HR-5P-01, is an unbranded seating solution built for focused desk work and extended computer use. Its tall black frame combines a breathable woven mesh back with a contoured headrest, fixed T-shaped armrests, and a five-star caster base, giving the chair a streamlined professional appearance suited to modern office interiors. The back mesh is tensioned within a black molded polymer or resin frame and organized into three horizontal support zones, including a 240 mm lumbar support area. The curved headrest uses a mesh or fabric-faced pad on a molded black shell, attached with a steel or polymer bracket. Clear width between the fixed armrests is 540 mm, while integrated flat elbow pads provide a consistent forearm surface. Construction balances comfort and structure. The seat features black woven fabric over 70 mm molded foam at 45 kg per cubic meter, with a finished cushion thickness of 90 mm and a concealed plywood or molded-composite shell. Backrest padding thickness is 70 mm. Armrests and the headrest shell are molded polymer, while the gas-lift and tilt mechanism use steel. The chrome-finish steel lift column includes a black telescopic trim sleeve, and the chair rests on a nylon five-star base with twin-wheel casters. Functional controls are arranged for regular task-chair use. A pneumatic lever adjusts seat height through a 100 mm stroke, from 440 mm to 540 mm. The synchronized recline allows the backrest to tilt up to 18 degrees with coordinated seat movement and a position lock. A rear rotary knob controls recline resistance, and the seat and back rotate through 360 degrees. The independent headrest adjusts 90 mm vertically and pivots for neck support during reclined work or breaks. Rated capacity is 136 kg, with suitability for users up to 188 cm in height. The caster rolling durability target is 100000 cycles. This chair fits individual open-plan workstations, private offices, home offices, conference rooms, study rooms, and shared computer desks used in eight-hour shifts. Buyers should plan for assembly, noted at 40 minutes per set. Each set ships in two cartons with a packaged gross weight of 23 kg and reference carton volume of 0.26 cubic meters; listed carton dimensions include 840 x 650 x 360 mm and 850 x 420 x 720 mm.

Black Mesh High-Back Ergonomic Task Chair with Headrest Specifications
