PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	590 × 580 × 980 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	12.5 kg
Seat foam density	35 kg/m3
Back mesh tensile verification load	160 kg static pull
Seat static load verification	1000 N vertical for 1 hour
Gas-lift cycle life	100000 height-adjustment cycles
Caster rolling durability	100000 cycles over hard-floor obstacle test
Base static load verification	1135 kg centered static load
Fabric abrasion resistance	30000 Martindale cycles
Warranty duration	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest panel	Black flexible woven mesh stretched inside a molded polymer frame
Back support insert	Perforated black polymer lumbar panel attached centrally to the back
Seat cushion	70 mm molded polyurethane foam with olive-green woven fabric upholstery
Seat inner support	12 mm molded plywood or polymer seat board concealed under cushion
Armrests	Fixed black polymer T-shaped arm posts and padded top surfaces
Gas lift and center column	Chrome-plated steel lift tube with black painted steel telescopic column

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke, with 540 mm maximum seat height
Back recline	Mechanism permits rearward tilt to 12 degrees with one-position upright lock
Tilt tension control	Rotary paddle adjusts recline resistance for users up to 120 kg
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	650 x 590 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Primary workspace	Open-plan desks, computer workstations and administrative seating where 540 mm seat height supports standard 760 mm desks.
Commercial use case	Task seating for offices, training rooms and home offices requiring swivel access, breathable back support and easy rolling movement.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MBM-OC-590-580-980

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MBM-OC-590-580-980

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MBM-OC-590-580-980Open Export Tool

Quick Actions

Post an RFQ

Product Description

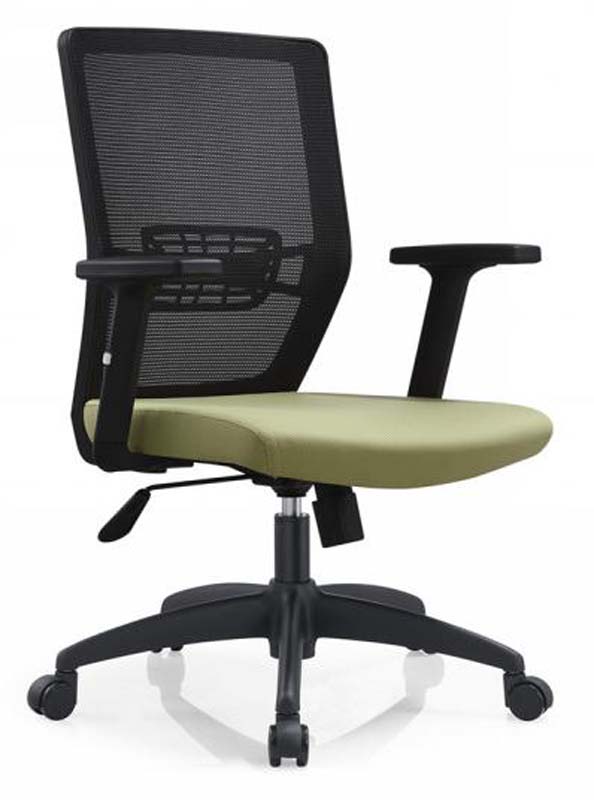

The Mid-Back Mesh Swivel Task Chair presents a clean, functional office seating profile defined by a black mesh back, olive-green padded seat, fixed T-shaped armrests, and a matching five-star caster base. Its mid-height back is centered around a perforated black polymer lumbar panel, while the flexible woven mesh is stretched within a molded polymer frame. The contrasting seat and back create a restrained visual identity suited to practical work environments without dominating the surrounding workspace. A 540 mm clear width between the armrests gives the chair an open seating layout, and the swivel center column supports easy turning at a desk. Construction combines upholstered comfort with durable support components. The seat uses 70 mm molded polyurethane foam upholstered in olive-green woven fabric, with a finished cushion thickness of 90 mm. A 12 mm molded plywood or polymer seat board is concealed beneath the cushion. The backrest includes 70 mm of padding thickness and a 240 mm high lumbar support zone. Armrests are fixed black polymer T-posts with padded top surfaces. Mobility is provided by nylon twin casters on a plastic five-star base, while height adjustment uses a chrome-plated steel lift tube and black painted steel telescopic column. The chair is rated for users up to 120 kg and has a net weight of 12.5 kg. Daily operation is managed through a pneumatic lever with a 100 mm height-adjustment stroke and a 540 mm maximum seat height. The recline mechanism allows rearward tilt to 12 degrees and includes a one-position upright lock; the recline reference also notes a 125-degree setting with suggested lock positions. A rotary paddle adjusts tilt tension for users within the stated weight capacity. Swivel movement, rolling casters, and the breathable mesh back make the chair suitable for open-plan desks, computer workstations, administrative areas, training rooms, and home offices. The 540 mm maximum seat height is intended for use with standard 760 mm desks. Procurement teams should note that each set is supplied in two cartons, with a packaged gross weight of 23 kg per set and a reference carton volume of 0.26 cubic meters per set. The stated carton dimensions include 650 x 590 x 360 mm and 850 x 420 x 720 mm, allowing receiving and storage space to be planned in advance. Assembly time is referenced at 40 minutes per set. The model is an unbranded office chair, MBM-OC-590-980, making it best suited to projects prioritizing straightforward task seating, coordinated installation, and neutral commercial aesthetics rather than bespoke branding or specialized executive seating.

Mid-Back Mesh Swivel Task Chair with Olive-Green Padded Seat Specifications
