PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	660 × 660 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Chair net weight	17.5 kg
Seat foam density	45 kg/m3
Back mesh tensile retention	150 N minimum
Seat static load verification target	1020 kg
Backrest cyclic durability target	120000 cycles
Caster rolling durability target	100000 cycles
Gas lift stroke	100 mm
Seat foam rebound	40%
Warranty target	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support panel	Breathable black woven mesh tensioned within a black polymer outer frame
Seat cushion	80 mm molded foam pad with black flexible fabric or mesh facing and rounded edge
Headrest	Curved black mesh panel on a polymer housing with a central height connector
Armrests	Fixed-height black polymer pads supported by curved polymer or nylon arm posts
Internal seat support	12 mm molded plywood or polymer seat carrier under the cushion
Center mechanism	2.5 mm steel tilt mechanism with black powder-coated finish

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever under the right side raises the seat through a 100 mm stroke
Recline control	Multi-position synchro tilt allows the back to move from 95 to 120 degrees with locking positions
Swivel movement	360-degree swivel around the gas-lift center for workstation access
Mobility	Five twin-wheel casters enable rolling on office floors with no visible brake levers

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 630 x 340 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for open-plan desks, private offices and home offices where seated users require lumbar and head support
Conference or supervisory workspace	Suitable for extended meeting, review or supervisory seating where swivel access and recline are needed

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EOCH-MH-BLK-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EOCH-MH-BLK-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EOCH-MH-BLK-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

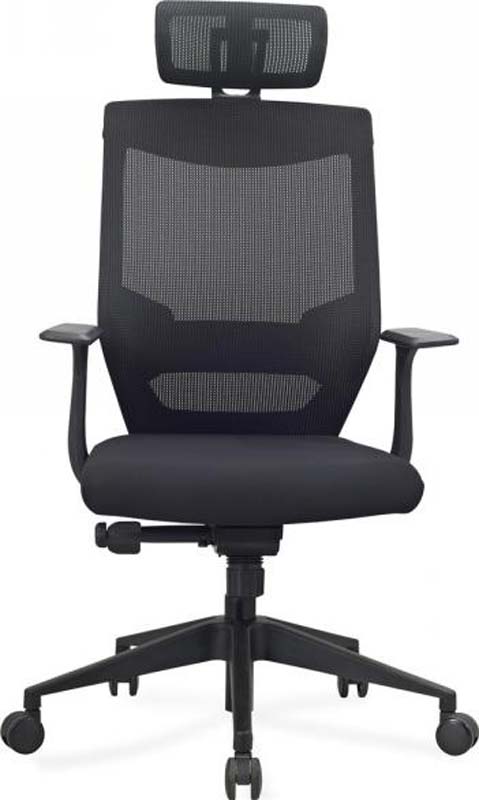

The Black High-Back Mesh Ergonomic Office Chair with Headrest, model EOCH-MH-BLK-01, presents a professional task-seating form with a tall black mesh backrest, integrated head support, fixed armrests, and a five-star caster base. Its monochrome black finish suits coordinated office interiors, while the 660 by 660 by 1290 mm silhouette provides a structured upright profile. The 540 mm clear width between armrests supports a broad seating zone, and the 240 mm lumbar support zone is positioned within the high back to align with the lower spine. Breathable black woven mesh is tensioned within a black polymer outer frame, giving the backrest a light, open visual character while retaining a framed structure. The headrest uses a curved black mesh panel on a polymer housing with a central height connector. Seat construction centers on an 80 mm molded foam pad with 45 kg/m³ foam density, black flexible fabric or mesh facing, rounded edges, and a 12 mm molded plywood or polymer carrier beneath; the finished cushion thickness is 90 mm. Backrest padding thickness is 70 mm. Fixed-height black polymer arm pads are carried on curved polymer or nylon posts. A 2.5 mm black powder-coated steel tilt mechanism, steel gas lift, nylon five-star base, and twin-wheel casters complete the construction. The chair weighs 17.5 kg and is rated for a maximum recommended user weight of 135 kg. Daily operation is controlled by a pneumatic lever under the right side, providing a 100 mm seat-height stroke. A multi-position synchro tilt lets the backrest move from 95 to 120 degrees with selectable locking positions, supporting changes between upright task work and relaxed reclining. The seat assembly rotates 360 degrees around the gas-lift center for easy reach across a workstation, and five twin-wheel casters provide rolling mobility on office floors without visible brake levers. The chair is appropriate for open-plan workstations, private offices, home offices, meeting spaces, and supervisory seating where lumbar and head support, swivel access, and controlled recline are required. It is offered unbranded, making it suitable for projects seeking a neutral specification. Procurement planning should account for one chair supplied as one set across two cartons, with a packaged gross weight of 23 kg and total carton volume of 0.26 m³ per set. The stated assembly time is 40 minutes per set. Buyers should confirm the preferred seat facing, internal carrier type, and arm-post material where molded alternatives are listed, and review delivery access, replacement parts, assembly responsibility, and warranty terms before purchase. Published durability targets include 1020 kg static seat load, 120,000 backrest cycles, 100,000 caster rolling cycles, and minimum 150 N back mesh tensile retention.

Black High-Back Mesh Ergonomic Office Chair with Headrest Specifications
