PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	610 × 620 × 1010 mm
Five-star base diameter	610 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	12.5 kg
Seat foam density	45 kg/m3
Back mesh tension rating	25 kg lateral support load
Gas-lift class	Class 4
Gas-lift stroke	100 mm
Swivel rotation	360 degrees
Caster rolling durability target	100000 cycles
Seat sliding durability target	100000 height-adjustment cycles
Base static load target	500 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Gray-black woven flexible mesh set in a black molded polymer frame
Seat cushion	Black woven fabric over a 70 mm molded foam pad with rounded front edge
Seat underside	Black molded polymer seat shell connected to a steel tilt mechanism
Armrests	Black fixed T-shaped polymer arms with flat pads and vertical supports
Gas lift	Chrome-plated telescoping steel cylinder with a black lower shroud
Five-star base	Black molded nylon or glass-filled nylon five-prong caster base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm stroke, with 540 mm maximum seat height
Recline and return	Center-tilt mechanism allows controlled backrest recline to 12 degrees and return under body weight
Tilt tension control	Rear rotary knob adjusts recline resistance for users up to 120 kg
Swivel and mobility	360-degree swivel seat and five 50 mm twin-wheel casters provide rolling movement on hard floors

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	650 x 610 x 300 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation use	Suitable for individual desk-based work where a compact 610 mm-wide task chair is required
Meeting or study space use	Suitable for conference rooms, home offices and study desks needing swivel access and basic recline

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MB-FA-50B

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MB-FA-50B

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MB-FA-50BOpen Export Tool

Quick Actions

Post an RFQ

Product Description

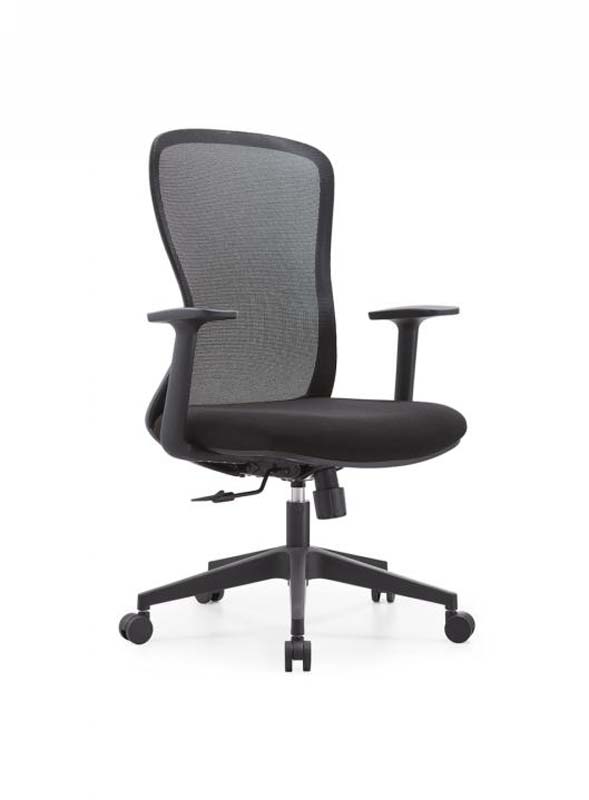

The Black Mesh Mid-Back Swivel Task Chair with Fixed Arms is a practical office seating solution designed for regular desk-based work. Model OC-MB-FA-50B is supplied unbranded, presenting a clean, neutral appearance that fits easily into coordinated commercial and residential work environments. Its visual character is defined by a gray-black woven flexible mesh back set within a black molded polymer frame. The mid-back form includes a structured lumbar support zone, while the black seat uses woven fabric over a rounded-edge molded foam cushion. Black T-shaped fixed polymer armrests with flat pads and vertical supports frame the seating area, and the black five-prong caster base reinforces the chair’s functional, understated profile. A chrome-plated telescoping gas lift with a black lower shroud provides a subtle metallic accent. The chair measures 610 by 620 by 1010 millimeters overall, with a 610-millimeter five-star base diameter, 540 millimeters of clear width between the armrests, a 90-millimeter finished seat cushion, and 70-millimeter backrest padding. Its construction pairs a molded polymer seat shell with a steel tilt mechanism. The base is produced in black molded nylon or glass-filled nylon, and the chair uses a Class 4 chrome gas lift, twin-wheel casters, 45 kilogram per cubic meter seat foam, and mesh rated for a 25 kilogram lateral support load. The recommended user weight capacity is 120 kilograms, and net weight is 12.5 kilograms. Everyday operation is centered on straightforward task-chair functions. A pneumatic lever adjusts seat height through a 100-millimeter stroke, with a maximum seat height of 540 millimeters. The center-tilt mechanism allows the backrest to recline to 12 degrees and return under body weight, while a rear rotary knob adjusts recline resistance. The seat rotates 360 degrees, and five 50-millimeter twin-wheel casters support rolling movement on hard floors. This model is appropriate for individual office workstations where a compact 610-millimeter-wide task chair is required. It is also suitable for conference rooms, home offices, and study desks that benefit from swivel access and basic recline. Procurement planning should account for fixed arm height and width, black-only styling, hard-floor caster use, assembly time, and packaging supplied as one set across two cartons with a packaged gross weight of 23 kilograms.

Black Mesh Mid-Back Swivel Task Chair with Fixed Arms Specifications
