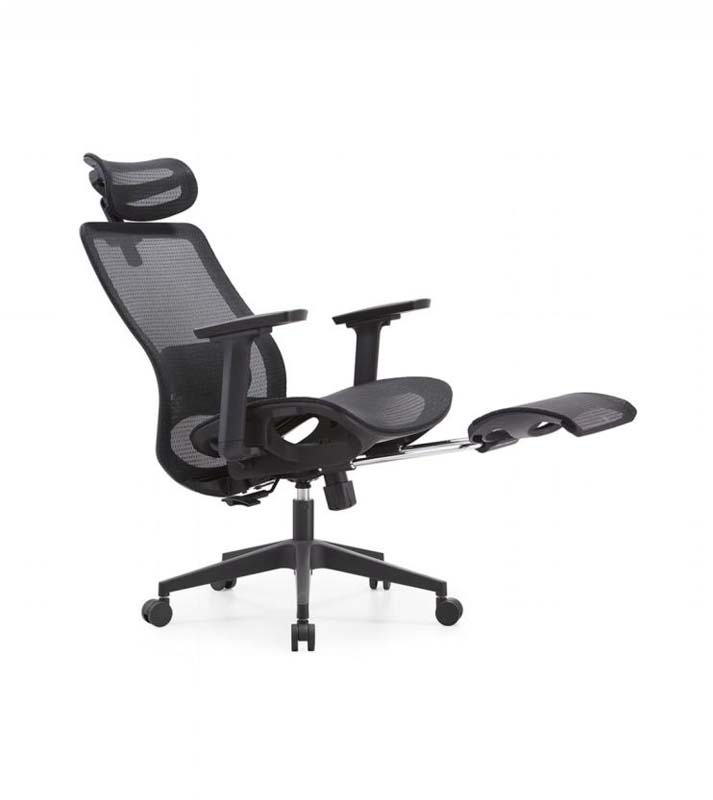

Product supplierBlack Mesh Ergonomic Reclining Office Chair with Headrest and Pull-Out Footrest, Black flexible woven mesh stretched over a framed ergonomic outer back
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 670 × 1320 × 1260 mm | |
|---|---|---|
| Backrest height | 820 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 150 kg | |
|---|---|---|
| Net weight | 18.5 kg | |
| Seat foam density | 45 kg/m3 | |
| Back mesh tensile load | 120 kg static panel load | |
| Gas-lift rated load | 150 kg | |
| Base static load target | 1136 kg | |
| Caster rolling durability | 100000 cycles | |
| Recommended daily use | 8 hours | |
| Warranty target | 3 years | |
| Available color count | 1 visible finish |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Back upholstery | Black flexible woven mesh stretched over a framed ergonomic outer back | |
|---|---|---|
| Seat support | Breathable mesh top over 70 mm molded foam and polymer seat shell | |
| Internal frame | 3.0 mm black polymer back frame with 1.5 mm steel reinforcement inserts | |
| Headrest | Mesh-faced curved headrest with polymer shell and padded inner core | |
| Arm components | Rigid nylon height-adjustable supports with 25 mm soft TPU or PU arm pads | |
| Footrest mechanism | Chrome-plated 22 mm steel telescoping rails with black polymer foot panel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Recline and lock | Synchronized seat-and-back tilt with 135 degree maximum recline and multi-position lock | |
|---|---|---|
| Pull-out leg rest | Under-seat footrest slides on dual chrome rails to 480 mm and retracts flush beneath the seat | |
| Seating adjustment | Pneumatic height adjustment provides 80 mm travel, with 50 mm seat-depth slider expected | |
| Head and arm support | Headrest adjusts 80 mm vertically and pivots 30 degrees; armrests provide 80 mm height adjustment |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Gross weight | 21.5 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive and workstation offices | Suitable for long computer-work sessions because it combines high-back support, adjustable arms, recline, and leg rest | |
|---|---|---|
| Manager and private office break tasks | Useful where one chair must support focused work and short reclined rest periods without separate lounge seating |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 applicability | Use for office-chair dimensional safety and ergonomic geometry verification | |
|---|---|---|
| EN 1335-2 applicability | Applicable standards and test results require confirmation | |
| EN 1335-3 applicability | Use for static, durability, and impact test methods on seat, back, arms, and base | |
| EN 1022 applicability | Use for chair overturning assessment under forward, rearward, and lateral loading |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 applicability | Use for office chair back, seat, arm, base, caster, and tilt-mechanism durability acceptance |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 applicability | Use for furniture strength and durability testing of chair seat and back structures | |
|---|---|---|
| GB/T 28004.1 applicability | Use for office-chair general technical requirements including stability, adjustability, and safety |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3 applicability: Use for furniture strength and durability testing of chair seat and back structures; 2. GB/T 28004.1 applicability: Use for office-chair general technical requirements including stability, adjustability, and safety; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
