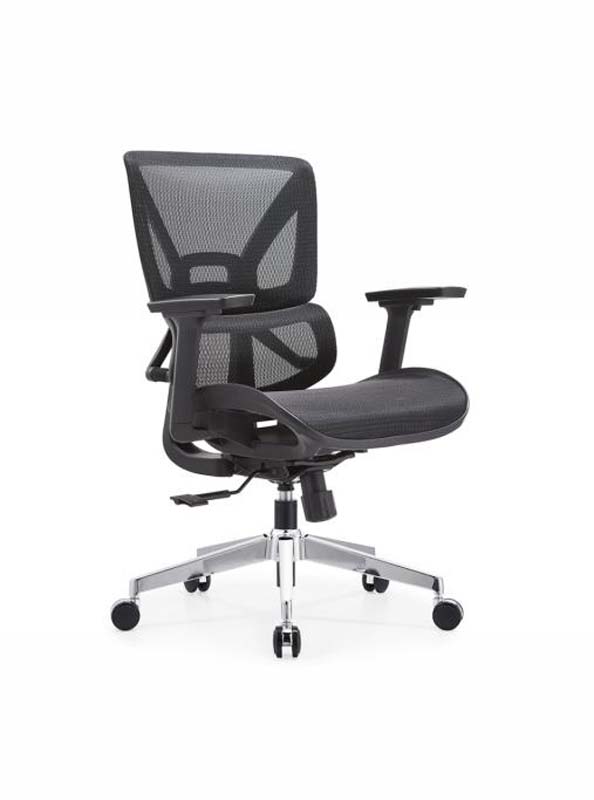

Product supplierBlack Mesh Ergonomic Office Chair, Black flexible woven mesh over a black molded polymer outer frame, with X-form internal back supports
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 660 × 620 × 1110 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 16.5 kg | |
|---|---|---|
| Recommended user weight capacity | 136 kg | |
| Dynamic seat loading target | 102 kg | |
| Base static load target | 1134 kg | |
| Caster rolling durability target | 100000 cycles | |
| Gas-lift cycle target | 100000 height cycles | |
| Back tilt travel | 18 degrees | |
| Seat tilt travel | 8 degrees | |
| Recommended user height range | 1900 mm; public screening value 1900 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest suspension | Black flexible woven mesh over a black molded polymer outer frame, with X-form internal back supports | |
|---|---|---|
| Seat surface | Black mesh or mesh-textured woven fabric over a contoured molded seat shell with padded support | |
| Load-bearing seat shell | 12 mm thick glass-fiber-reinforced polypropylene seat pan | |
| Back frame | Black injection-molded polypropylene frame with integrated lumbar rail and side supports | |
| Armrests | Height-rise black polypropylene arm supports with 250 x 90 mm soft-touch polymer pads | |
| Five-star base | Polished die-cast aluminum five-star base with five tubular-style spokes and caster sockets |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seat height adjustment | Pneumatic lever raises and lowers the seat from 440 to 540 mm through a 100 mm stroke | |
|---|---|---|
| Synchronized recline | Backrest reclines 18 degrees while the seat moves 8 degrees to keep the feet supported | |
| Tilt tension control | Rear knob adjusts recline resistance for users up to 136 kg | |
| Swivel and mobility | 360-degree swivel seat with five 60 mm twin casters for omnidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan and private offices | Suits 760 mm task desks with 540 mm maximum seat height, breathable mesh and swivel mobility for daily computer work | |
|---|---|---|
| Meeting and shared workpoints | Black durable upholstery, 136 kg user target and caster mobility make it suitable for hot desks, meeting rooms and project stations |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 office furniture seating | Defines dimensional suitability and safety terminology for contract office chairs | |
|---|---|---|
| EN 1335-2 office furniture seating | Applies to structural safety requirements including stability and strength verification | |
| EN 1335-3 office furniture seating | Applies to test methods for strength, durability and stability during procurement inspection | |
| EN 1021-1 upholstery burning test | Applies to cigarette-ignition fire testing of seat and back textile components if specified |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 static load case | Recommended 1134 kg five-star base verification target for supplier test-report review |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 furniture mechanical test | Applies to chair seat and back strength and durability acceptance testing for office seating procurement | |
|---|---|---|
| GB/T 10357.3 furniture mechanical test | Applies to chair arm and leg static load, impact and fatigue evaluation where laboratory verification is required | |
| GB/T 3324 general technical specification | Applies to product documentation, dimensional tolerances, finish integrity and assembly quality inspection | |
| GB 18584 indoor furnishing limit | Applies to formaldehyde and harmful-substance limits for any wood-based panel components in the chair |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2 furniture mechanical test: Applies to chair seat and back strength and durability acceptance testing for office seating procurement; 2. GB/T 10357.3 furniture mechanical test: Applies to chair arm and leg static load, impact and fatigue evaluation where laboratory verification is required; 3. GB/T 3324 general technical specification: Applies to product documentation, dimensional tolerances, finish integrity and assembly quality inspection; 4. GB 18584 indoor furnishing limit: Applies to formaldehyde and harmful-substance limits for any wood-based panel components in the chair; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
