PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 650 × 1030 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Net weight	13.5 kg
Static seat verification load	500 kg
Caster rolling durability	100000 cycles
Gas-lift cycle life	100000 height cycles
Tilt mechanism cycle life	300000 cycles
Seat foam density	45 kg/m3
Back mesh load rating	136 kg
Recommended user height range	160 to 185 cm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Back support	Black flexible woven mesh tensioned in a black polymer outer frame
Seat cushion	Padded black upholstered seat over 65 mm foam
Lumbar support	Black curved polymer lumbar pad with a circular white adjustment button
Armrests	Fixed black polymer T-arms with rectangular padded contact surfaces
Frame and mechanism	Black polymer back shell with steel tilt mechanism under the seat
Gas lift and base	Chrome-plated steel gas column, black polymer sleeve and glass-filled nylon five-star base

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operates through the right-side lever and provides 100 mm travel
Swivel movement	360-degree swivel around the gas-lift centerline with five caster contact points
Back recline	Tilt mechanism allows the back to move between 93 and 110 degrees with tension control
Mobility	Five twin-wheel casters support rolling movement on hard floors and low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation seating	Suitable for open offices, home offices and shared desks requiring breathable mesh back support and 440 to 540 mm seat-height adjustment.
Commercial task use	Appropriate for daily 8-hour desk work by users up to 120 kg when ordered with validated commercial-grade gas lift, mechanism and casters.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1335-1	Recommended European office chair dimensional safety and ergonomic assessment scope.
EN 1335-2	Recommended safety, stability and structural performance requirement for commercial task seating.
EN 1335-3	Recommended test methods for seat, back, arm, caster and gas-lift durability validation.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.1	Recommended North American commercial office chair standard for strength, durability, stability and dimensional testing.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357	Recommended furniture mechanical-test series applicable to seat, backrest, arm and base load verification.
GB 18584	Recommended indoor-furniture harmful-substance limit for upholstery, plastics and processed components.

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357: Recommended furniture mechanical-test series applicable to seat, backrest, arm and base load verification.;
2. GB 18584: Recommended indoor-furniture harmful-substance limit for upholstery, plastics and processed components.;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ETC-MESH-BLK-FA5

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ETC-MESH-BLK-FA5

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ETC-MESH-BLK-FA5Open Export Tool

Quick Actions

Post an RFQ

Product Description

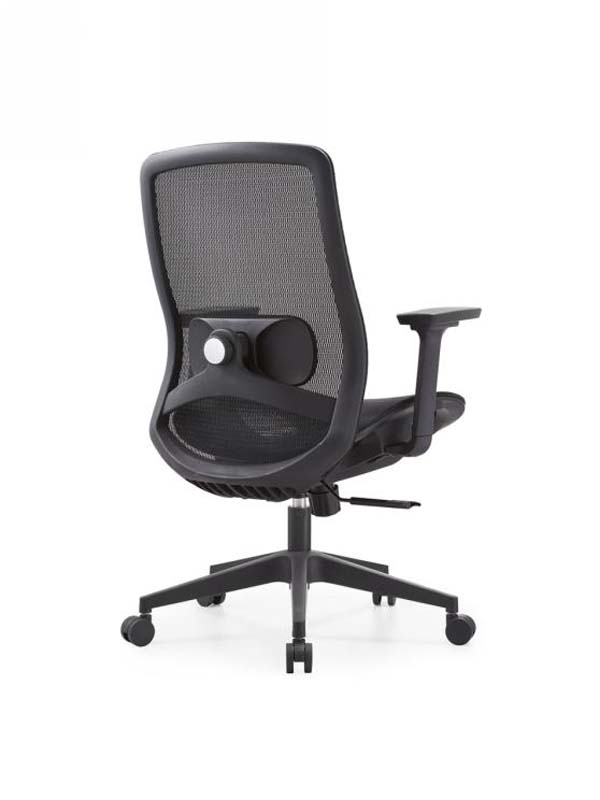

The Black Mesh Ergonomic Task Chair with Height Adjustment and Fixed Arms presents a clean, functional silhouette for modern desk environments. Its black flexible woven mesh back is tensioned within a black polymer outer frame and matched with a black back shell, giving the chair a streamlined appearance while defining a breathable support surface. A curved black polymer lumbar pad includes a circular white adjustment button, creating a subtle visual accent in the lower-back zone. The padded black upholstered seat pairs with fixed black polymer T-shaped armrests that have rectangular padded contact surfaces. Below the seat, the chrome-plated steel gas column and black polymer sleeve contrast with the glass-filled nylon five-star base, while five twin-wheel casters complete the mobile, swivel-centered layout. The clear width between armrests is 540 mm, and the lumbar support zone is 240 mm high. Construction balances shaped polymer components, steel support hardware, and cushioned seating. The finished seat cushion is 90 mm thick and uses 65 mm foam at a 45 kg/m3 density, while backrest padding is 70 mm thick. A steel tilt mechanism is mounted beneath the seat, and the chair is finished with a chrome gas lift, nylon five-star base, and twin-wheel casters. The fixed arms provide defined forearm support without added adjustment complexity. Everyday operation is controlled from the seated position. A right-side lever operates the pneumatic seat-height lift, providing 100 mm of travel and supporting seat-height adjustment from 440 to 540 mm. The chair rotates 360 degrees around the gas-lift centerline, with five caster contact points for stability during movement. The tilt mechanism lets the backrest move between 93 and 110 degrees and includes tension control, while the casters support rolling on hard floors and low-pile carpet. This unbranded model, ETC-MESH-BLK-FA5, is suited to open offices, home offices, shared desks, and commercial task seating where a breathable mesh back is preferred. It is appropriate for daily eight-hour desk work by users up to 120 kg when ordered with validated commercial-grade gas lift, mechanism, and casters. Published checks include a 500 kg static seat verification load, 100,000 gas-lift height cycles, 300,000 tilt-mechanism cycles, and 100,000 caster rolling cycles. Procurement planning should note that one set ships in two cartons, with packaged gross weight of 23 kg and carton volume of 0.26 m3. Reference assembly time is 40 minutes per set, and indicative loading is 135 sets in a 20GP container at 85 percent space utilization. The chair itself has a net weight of 13.5 kg.

Black Mesh Ergonomic Task Chair with Height Adjustment and Fixed Arms Specifications
