PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	12.5 kg
Recommended user weight capacity	120 kg
Gas-lift class	Class 3, 100 mm stroke
Back tilt angle	95 to 112 degrees
Seat height lift travel	100 mm
Back mesh static load target	136 kg
Seat static-load acceptance target	160 kg
Caster rolling durability target	100000 cycles
Base vertical static-load target	1130 kg
Warranty target	3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest	Red polyester mesh tensioned in a white molded polypropylene frame
Seat surface	Red woven polyester fabric over a contoured molded cushion
Seat cushion	70 mm polyurethane foam, 40 kg/m3 target density
Seat shell and frame	White molded polypropylene seat shell and back frame with black stress covers
Armrests	White rigid support with black polyurethane or soft TPE top pad
Mechanism	Black steel tilt mechanism with 2.5 mm plate thickness target

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift through a 100 mm stroke using the right-side under-seat lever
Tilt control	Synchronized-style seat-and-back tilt from 95 to 112 degrees with tension knob and lock positions
Swivel function	360-degree swivel around the central gas-lift bearing
Mobility	Five-point caster base allows omnidirectional movement on hard floors or low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton count	1 flat-pack carton
Gross weight per carton	14.5 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office workstation	Suits open-plan desks, computer workstations and staff seating where compact swivel movement and breathable back support are required
Meeting or study space	Suitable for conference rooms, home study and daily desk use up to 8 hours per user

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OC-MESH-RED-W5

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OC-MESH-RED-W5

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OC-MESH-RED-W5Open Export Tool

Quick Actions

Post an RFQ

Product Description

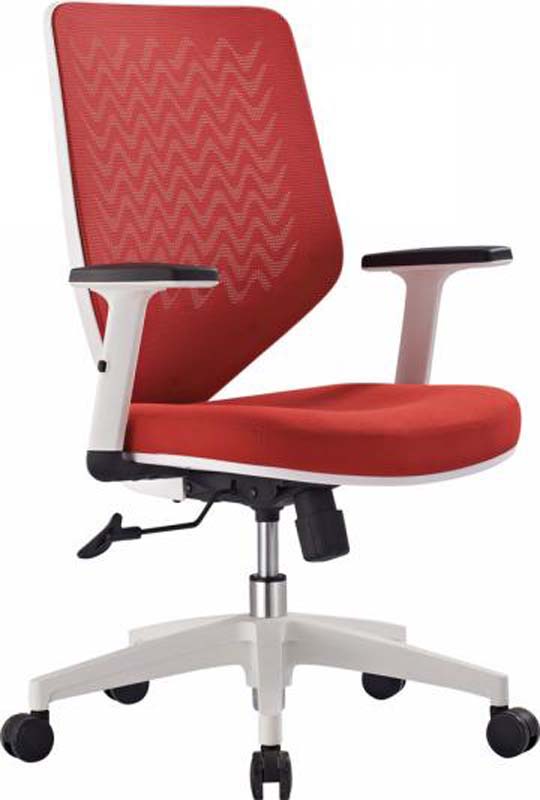

The Red Mesh Swivel Task Chair with White Frame is a contemporary office chair designed for everyday desk use. Its appearance combines a red mesh back and red fabric seat with a crisp white molded polypropylene frame, creating a clean contrast that suits modern workspaces. The chair uses a central five-star base, fixed armrests, a contoured seat, and an upright mesh backrest with a defined lumbar support zone. The open mesh structure gives the backrest a lighter visual presence, while the white shell and frame maintain a neat, organized look at individual workstations. Its clear width between armrests is 540 mm, and overall dimensions are 620 x 620 x 1010 mm. Construction balances breathable support with padded comfort. The backrest uses red polyester mesh tensioned within the white molded polypropylene frame, and the seat surface is red woven polyester fabric over a contoured molded cushion. The finished seat cushion is 90 mm thick, using a 70 mm polyurethane foam cushion with a 40 kg/m3 target density beneath the fabric surface. Backrest padding is 70 mm thick, and the lumbar support zone is 240 mm high. Black stress covers accent the white seat shell and back frame. The chair is supported by a nylon five-star base, chrome Class 3 gas lift with 100 mm stroke, polyurethane arm pads, and twin polyurethane casters. A black steel tilt mechanism with a 2.5 mm target plate thickness provides the central control structure. Functionally, the chair supports pneumatic seat-height adjustment through a 100 mm stroke using a right-side under-seat lever. The synchronized-style seat-and-back tilt moves from 95 to 112 degrees, with a tension knob and lock positions for personalized seating resistance. It also provides 360-degree swivel around the central gas-lift bearing, and the five-point caster base allows omnidirectional movement on hard floors or low-pile carpet. Fixed armrests add forearm support without adding independent adjustment complexity. The recommended user weight capacity is 120 kg, and the chair has a net weight of 12.5 kg. This model is well suited to open-plan office desks, computer workstations, staff seating, conference rooms, home studies, and other daily desk environments used up to 8 hours per user. It is particularly appropriate where compact swivel movement, breathable back support, and a distinctive red-and-white aesthetic are desired. Procurement teams should note that the product is unbranded, model OC-MESH-RED-W5, and supplied as an office task chair. Logistics information lists one flat-pack carton with a gross weight of 14.5 kg, while the reference packaging information also records 2 cartons per set, packaged dimensions of 850 x 420 x 720 mm, a packaged gross weight of 23 kg per set, and a reference assembly time of 40 minutes per set. Buyers should confirm the applicable packing configuration, assembly requirements, and floor surface compatibility before ordering, especially for larger workplace rollouts.
