PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1120 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	136 kg
Net weight	16 kg
Static vertical seat-load acceptance target	1020 kg
Backrest durability target	150000 cycles
Seat height adjustment cycles	100000 cycles
Caster rolling durability	100000 cycles
Armrest vertical static-load target	57 kg per arm
Seat foam density	55 kg/m3
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest support	Black flexible mesh stretched over a black polymer outer frame
Seat surface	Contoured black mesh or mesh-fabric carrier over a molded polymer seat pan
Lumbar component	Padded black lumbar band set into the lower backrest
Armrests	Injection-molded black polymer pads and posts with internal height-adjustment slides
Central support	Chrome steel inner piston with black telescopic outer sleeve and polymer control housing
Base and casters	Black nylon five-star base with five twin-wheel polymer casters

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seat height adjustment	Pneumatic lever raises and lowers the seat through a 100 mm travel range
Backrest recline	Synchronized tilt mechanism provides a 15-degree rear recline with tension control
Armrest adjustment	Height-adjustable arm posts provide 60 mm vertical pad travel for shoulder and desk alignment
Swivel and mobility	360-degree swivel seat on five caster-mounted legs for movement around a workstation

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Workstation seating	Suitable for open-plan desks, private offices and home offices needing breathable 8-hour task seating
Mobile office use	Suitable for bench desks, meeting rooms and hot-desk environments because the five-caster base swivels and rolls

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EMC-MESH-ARMB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EMC-MESH-ARMB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EMC-MESH-ARMB-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

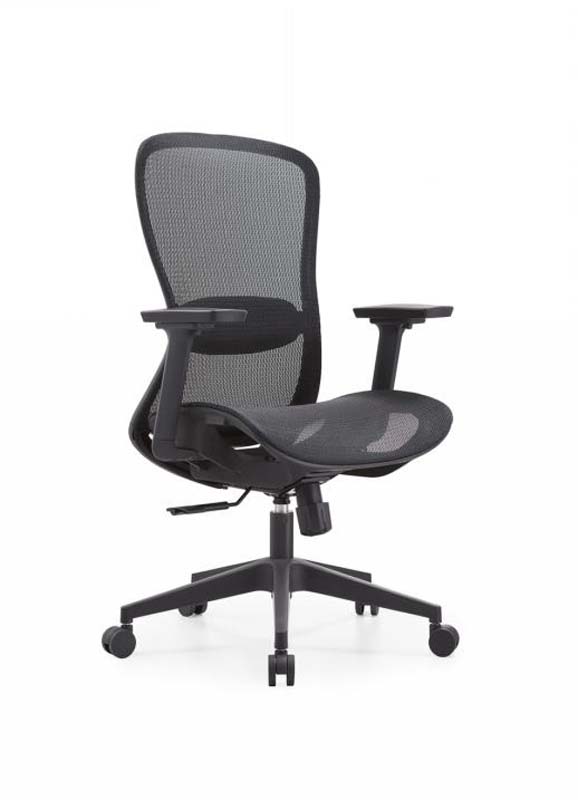

The Black Mesh Ergonomic Task Chair with Height-Adjustable Arms is an unbranded office seating solution, model EMC-MESH-ARMB-01, designed for sustained workstation use. Its coordinated black appearance uses a flexible mesh backrest stretched over a black polymer outer frame, while the contoured seat presents a black mesh or mesh-fabric surface over a molded polymer seat pan. A padded black lumbar band is integrated into the lower backrest, and matching black polymer armrest pads and posts create a clean, consistent profile. The chair measures 650 by 650 by 1120 mm overall, with a 540 mm clear width between the armrests, a 90 mm finished seat cushion, 70 mm of backrest padding, and a 240 mm lumbar support zone height. Its five-star nylon base and twin-wheel polymer casters complete the mobile, task-oriented form. Construction balances breathable support with durable central structure. The backrest uses flexible mesh on a polymer frame, the seat is supported by a molded polymer pan, and the armrests use injection-molded polymer pads and posts with internal height-adjustment slides. A chrome steel inner piston, black telescopic outer sleeve, and polymer control housing form the gas-lift center. The chair is rated for a recommended user weight of 136 kg and has a net weight of 16 kg. Documented durability targets include a 1020 kg static vertical seat-load acceptance target, 150,000 backrest cycles, 100,000 seat-height adjustment cycles, 100,000 caster rolling cycles, and a 57 kg per arm vertical static-load target. Pneumatic seat-height adjustment provides 100 mm of travel through a lever, and the synchronized tilt mechanism offers a 15-degree rear recline with tension control. Arm pads move 60 mm vertically to support shoulder and desk alignment, while the 360-degree swivel seat and five caster-mounted legs allow easy movement around a workstation. These features make the chair suitable for open-plan desks, private offices, home offices, bench desks, meeting rooms, and hot-desk settings where breathable task seating and mobility are needed. Procurement planning should account for delivery as one set in two cartons, with packaged gross weight of 23 kg per set, reference carton dimensions of 850 by 420 by 720 mm, and total carton volume of 0.26 cubic meters per set. Assembly time is referenced at 40 minutes per set, and an indicative 20-foot general-purpose container can hold 135 sets at 85 percent space utilization.
