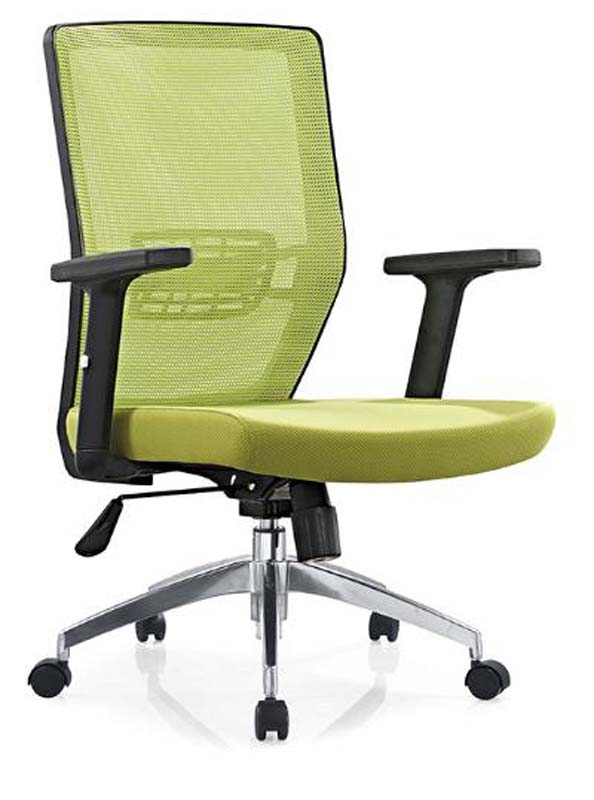

Product supplierMid-Back Mesh Swivel Task Chair with Fixed Arms and Chrome Five-Star Base, Green flexible polymer mesh tensioned in a black molded frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 620 × 620 × 1010 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 120 kg | |
|---|---|---|
| Net weight | 13.5 kg | |
| Static seat verification load | 600 kg | |
| Caster rolling durability | 100000 cycles | |
| Gas lift cycles | 100000 height-adjustment cycles | |
| Seat height adjustment stroke | 100 mm | |
| Back tilt travel | 12 degrees | |
| Seat swivel travel | 360 degrees | |
| Color count | 1 visible upholstery color | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest support | Green flexible polymer mesh tensioned in a black molded frame | |
|---|---|---|
| Seat upholstery | Green woven fabric over a contoured foam cushion | |
| Seat cushion core | Molded polyurethane foam, 70 mm thick, density 45 kg/m3 | |
| Armrests | Black injection-molded polymer fixed T-arms with padded rectangular top surfaces | |
| Back frame | Black polymer outer frame with formed side rails and lower hinge mounts | |
| Five-star base | Polished chrome-plated steel five-star base, 1.5 mm tube-wall target |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic lever under the seat raises and lowers the seat through a 100 mm stroke | |
|---|---|---|
| Back recline | Tilt mechanism allows 12 degrees of controlled rearward recline with tension adjustment | |
| Swivel mobility | Central bearing and gas-lift assembly provide 360-degree seat rotation | |
| Fixed arm support | T-shaped armrests provide static upper-limb support at 220 mm above the seat |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office workstation use | Suitable for individual desks, open workstations and administrative seating where 360-degree swivel and rolling access are required. | |
|---|---|---|
| Meeting and training areas | Suitable for shared meeting rooms and training desks because the compact mid-back form provides mobility without a headrest. |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1335-1 | Office furniture seating dimensions and dimensional safety | |
|---|---|---|
| EN 1335-2 | Office chair safety requirements | |
| EN 1335-3 | Office chair test methods |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 | Office chairs standard |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 | Furniture strength and durability test for seating | |
|---|---|---|
| GB/T 28004.1 | Office chair mechanical safety and test reference | |
| GB/T 3324 | General technical requirements for wooden furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3: Furniture strength and durability test for seating; 2. GB/T 28004.1: Office chair mechanical safety and test reference; 3. GB/T 3324: General technical requirements for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
