PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	650 × 650 × 1280 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	120 kg
Chair net weight	18 kg
Static base verification load	600 kg
Caster rolling durability target	100000 cycles
Gas-lift cycle target	100000 height cycles
Back tilt travel	15 degrees
Seat height travel	100 mm
Recommended user stature range	175 cm
Warranty target	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Black woven elastic mesh tensioned within a black polymer outer frame
Seat upholstery	Black breathable mesh or woven fabric over a contoured foam cushion
Seat cushion	80 mm molded polyurethane foam on a load-bearing plywood or composite seat board
Back frame	Black injection-molded polymer frame with flexible mesh suspension
Armrests	Black polymer fixed pads on polymer or steel-reinforced upright supports
Five-star base	Black nylon or glass-fiber-reinforced nylon star base with five caster sockets

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift with 100 mm travel, operated by the visible under-seat lever
Back recline	Multi-position synchro-style tilt with 15 degrees back travel and tension-adjustment knob
Swivel movement	360-degree swivel around the central gas-lift axis
Mobile support	Five dual-wheel 60 mm casters allow rolling on hard floors and low-pile carpet

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	Suits long computer-work shifts because the high mesh back, headrest, and movable arms provide adjustable support.
Home office and manager workspace	Black compact swivel form fits desks with 760 mm work surfaces and carpeted or hard-floor study areas.

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ERG-MESH-HB-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ERG-MESH-HB-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ERG-MESH-HB-01Open Export Tool

Quick Actions

Post an RFQ

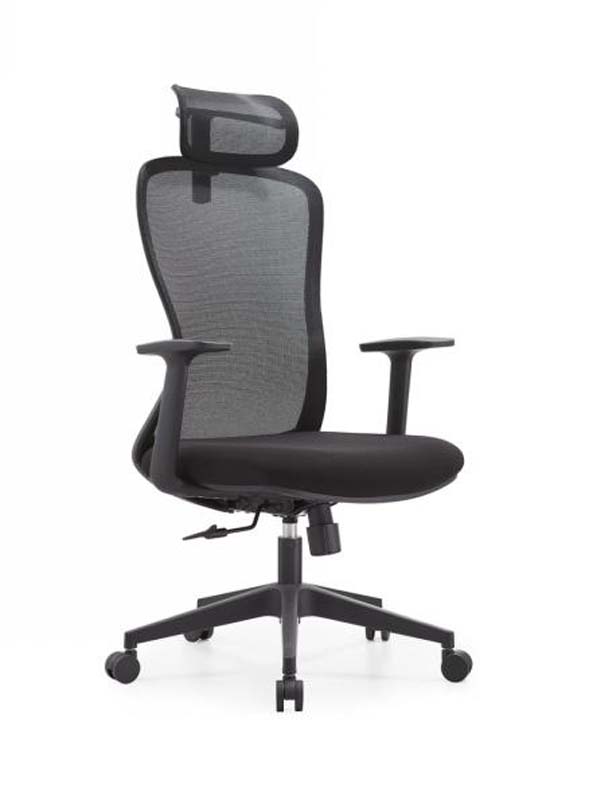

Product Description

The High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms presents a professional black swivel-chair form suited to focused desk work. Its tall mesh back is tensioned within a black polymer outer frame and paired with a contoured seat, integrated headrest, and movable arm supports. The five-star base and centrally mounted gas lift create a balanced, compact footprint, while the clear width between armrests provides defined space within the seating area. Overall dimensions are 650 by 650 by 1280 millimeters, giving the chair a high-back silhouette without a broad horizontal profile. Construction combines breathable upholstery with structured support components. The backrest uses black woven elastic mesh and a flexible polymer frame, while the seat is offered in black breathable mesh or woven fabric over molded polyurethane foam. The cushion is supported by a load-bearing plywood or composite seat board, with a finished cushion thickness of 90 millimeters. Backrest padding thickness is 70 millimeters, and the lumbar support zone is 240 millimeters in height. Arm pads and support structures use black polymer, with polymer or steel-reinforced uprights. The chair rests on a black nylon or glass-fiber-reinforced nylon five-star base, dual-wheel casters, and a chrome-finish gas lift. Functionality is centered on adjustability and movement. A visible under-seat lever controls pneumatic seat-height adjustment with 100 millimeters of travel. The multi-position synchro-style tilt mechanism offers 15 degrees of back travel and includes a tension-adjustment knob. Users can rotate through a full 360-degree swivel, and the five 60-millimeter dual-wheel casters support movement across hard floors and low-pile carpet. The recommended user weight capacity is 120 kilograms, and the chair net weight is 18 kilograms. The static base verification load is 600 kilograms, with caster rolling and gas-lift durability targets of 100,000 cycles. This model is appropriate for open-plan office workstations where long computer-work shifts require back, head, and arm support. It also fits home offices and manager workspaces, including desks with 760-millimeter work surfaces and study areas with carpeted or hard floors. For procurement, the chair is supplied unbranded under model ERG-MESH-HB-01, with one set packed across two cartons. Packaged gross weight is 23 kilograms, reference carton volume is 0.26 cubic meters per set, and reference assembly time is 40 minutes. A 20GP container can accommodate 135 sets at 85 percent space utilization. Buyers should confirm seat upholstery choice, arm support construction, floor type, assembly resources, and delivery packaging when planning office or residential installations.

High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms Specifications
