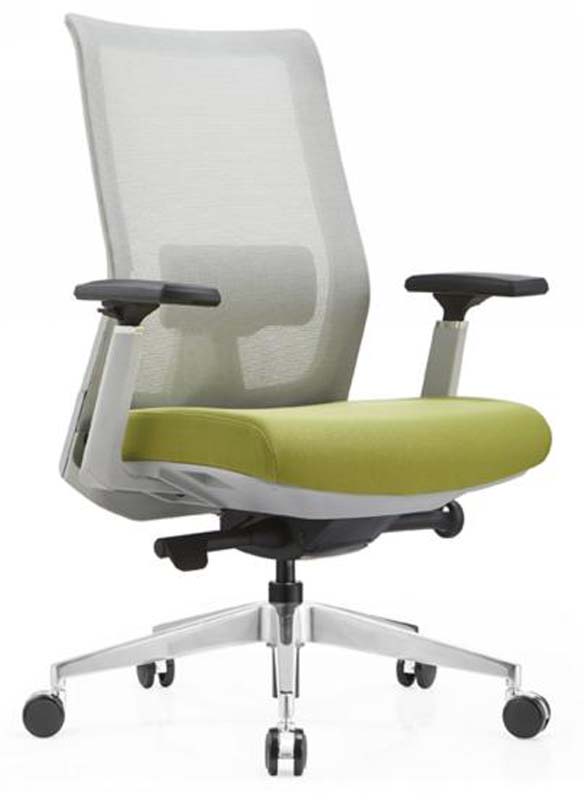

Product supplierMid-Back Mesh Swivel Office Task Chair with Green Fabric Seat, Grey flexible mesh tensioned over a light-grey painted structural back frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 650 × 650 × 1080 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user weight capacity | 136 kg | |
|---|---|---|
| Chair net weight | 16.5 kg | |
| Seat foam density | 45 kg/m3 high-resilience polyurethane | |
| Back mesh tensile target | 800 N warp and 600 N weft | |
| Fabric abrasion acceptance target | 50,000 Martindale cycles | |
| Gas lift cyclic lift target | 100,000 cycles | |
| Caster rolling durability target | 100,000 cycles | |
| Base static vertical load target | 1136 kg | |
| Color count | 2 visible colors | |
| Foam rebound rate | 40 percent |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Backrest | Grey flexible mesh tensioned over a light-grey painted structural back frame | |
|---|---|---|
| Seat upholstery | Green woven fabric over molded cushioning | |
| Seat cushion | 70 mm molded high-resilience polyurethane foam on load-bearing seat shell | |
| Arm pads | Black injection-molded polyurethane or soft polymer pads on height-adjustable supports | |
| Back and arm support frame | Light-grey painted steel or reinforced nylon frame with side-mounted arm carriers | |
| Base and casters | Polished die-cast aluminum five-star base with black nylon twin-wheel casters |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Height adjustment | Pneumatic seat-height lift with 80 mm stroke controlled by the visible right-side lever | |
|---|---|---|
| Recline clearance behind back | 220 mm | |
| Synchronized recline | Backrest reclines from 96 to 118 degrees while seat tilts to reduce thigh pressure | |
| Tilt lock | Tilt mechanism locks in 3 positions, including upright, mid-recline, and full-recline settings |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open-plan workstation | Suited to daily 8-hour desk work for office staff using 800 mm task desks | |
|---|---|---|
| Private office and manager desk | Green seat provides accent color while grey mesh coordinates with neutral executive furniture |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.1 | Applicable standards and test results require confirmation |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.3 | Recommended for chair strength and durability acceptance testing. | |
|---|---|---|
| GB/T 3324 | General technical specification reference for wooden furniture dimensions and workmanship where applicable to furniture procurement documentation. | |
| GB 17927 | Recommended reference for degradable and harmful-substance control in furniture upholstery materials. | |
| GB/T 2960 | Recommended abrasion-test reference for textile upholstery used on seating. |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.3: Recommended for chair strength and durability acceptance testing.; 2. GB/T 3324: General technical specification reference for wooden furniture dimensions and workmanship where applicable to furniture procurement documentation.; 3. GB 17927: Recommended reference for degradable and harmful-substance control in furniture upholstery materials.; 4. GB/T 2960: Recommended abrasion-test reference for textile upholstery used on seating.; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
