PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	680 × 680 × 1290 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	150 kg
Static seat proof load reference	1000 N
Backrest durability reference	120,000 tilt cycles
Gas-lift service class reference	Class 4, 100 mm tube class
Caster rolling durability reference	100,000 cycles
Seat foam density	45 kg/m3 molded foam
Back mesh tensile support reference	250 N distributed load
Net weight reference	18.5 kg
Suitable user height range	160 to 190 cm
Warranty reference	5 years frame and mechanism, 2 years upholstery

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Backrest upholstery	Black flexible woven mesh tensioned over a rigid polymer outer frame
Seating surface	Black mesh or mesh-faced panel over molded foam and a steel-reinforced seat pan
Lumbar structure	Integrated curved polymer lumbar band with padded black center section
Headrest	Framed black mesh pad mounted on a polymer height-adjustment bracket
Armrests	Injection-molded polymer posts with flat black polyurethane or soft-polymer arm pads
Internal frame	Steel-tube and steel-plate support frame with polymer load-bearing housings

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Height adjustment	Pneumatic seat-height lift operated by the right under-seat lever with 80 mm effective travel
Back recline	Synchro-tilt recline moves seat and back together through a 130 degree maximum back angle
Position lock	Multi-position tilt lock secures the back at selected upright or reclined working angles
Seat-depth adjustment	Sliding seat pan provides 50 mm fore-aft adjustment for thigh-depth fitting

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	880 x 650 x 360 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office workstations	High-back mesh support, adjustable arms and mobile base suit 6 to 8 hour daily desk work
Home office and executive workspaces	Black neutral finish and headrest support fit computer-based work and short reclined breaks

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · EM-HB-MESH-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · EM-HB-MESH-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · EM-HB-MESH-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

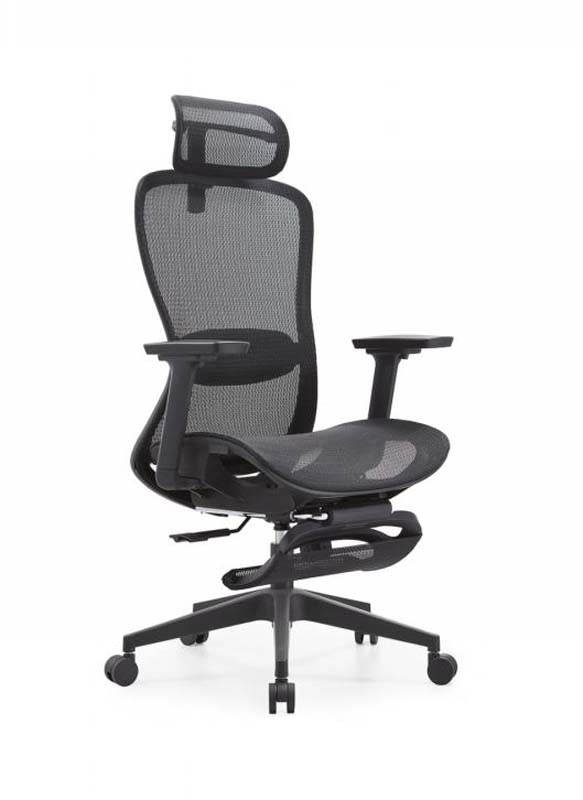

The Black High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms is a structured task seating solution designed for daily desk use. Model EM-HB-MESH-01 is supplied without a brand label and presents a clean, neutral black appearance suited to professional and residential interiors. Its tall back, contoured headrest, padded seat, and five-star caster base create a conventional ergonomic silhouette, while the high-back layout provides support from the lumbar region through the upper back and head. The chair measures 680 by 680 by 1290 millimeters overall, with a 540-millimeter clear width between the armrests. Its 90-millimeter molded foam seat cushion and 70-millimeter backrest padding contribute to a substantial seated profile, while the 240-millimeter lumbar support zone targets the lower back. Construction combines breathable black woven mesh, a rigid polymer back frame, a steel-tube and steel-plate internal frame, polymer load-bearing housings, and a steel-reinforced seat pan. The backrest uses flexible mesh kept under tension over the outer frame, and the seating surface uses black mesh or a mesh-faced panel over molded foam. The integrated lumbar structure is a curved polymer band with a padded black center section. The headrest is a framed black mesh pad fitted to a polymer height-adjustment bracket. Arm supports use injection-molded polymer posts with flat black polyurethane or soft-polymer pads, while the chair rests on a five-star base with twin-wheel casters for mobility. Functional adjustment is focused on fitting different users and work postures. A right-side under-seat lever controls the pneumatic seat-height lift, which offers 80 millimeters of effective travel. The synchro-tilt mechanism moves the seat and back together to a maximum back angle of 130 degrees, and a multi-position tilt lock secures selected upright or reclined working angles. A sliding seat pan adds 50 millimeters of fore-aft adjustment to support appropriate thigh depth. The published references include a recommended user weight capacity of 150 kilograms, 45 kilograms per cubic meter molded seat foam, a Class 4 gas lift with a 100-millimeter tube class, static seat proof load reference of 1000 newtons, backrest durability reference of 120,000 tilt cycles, caster rolling durability reference of 100,000 cycles, and back mesh tensile support reference of 250 newtons distributed load. This model is appropriate for open-plan office workstations, home offices, computer-based work areas, and executive workspaces where high-back support, adjustable arms, and mobile seating are required for six to eight hours of daily desk work or short reclined breaks. Buyers should plan for assembly, with a reference time of 40 minutes per set. The product is packaged as one set across two cartons, with a packaged gross weight of 23 kilograms and reference carton volume of 0.26 cubic meters per set. Procurement teams should confirm the final arm support material, seat surface configuration, local delivery terms, assembly responsibilities, and maintenance or replacement arrangements before ordering in volume.

Black High-Back Mesh Ergonomic Office Chair with Headrest and Adjustable Arms Specifications
