PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1200 × 400 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	95 kg
Total distributed static load	180 kg
Single shelf static load	25 kg
Top surface static load	40 kg
Door swing rating	100000 open-close cycles
Hinge load per door	20 kg
Recommended loaded floor pressure	2.0 kPa
Storage capacity	5 enclosed compartments
User capacity	1 person operation
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Cabinet panels	25 mm dark wood-grain engineered board with vertical grain melamine or veneered finish
Upper doors	Smoked tempered glass set in 25 mm dark framed door leaves
Lower doors	Dark wood-grain engineered-board doors with matching vertical grain and square edge banding
Right side enclosure	Full-height wood-grain panel door divided horizontally into upper and lower face sections
Interior shelves	18 mm horizontal board shelves with concealed shelf supports
Hardware	Matte black or dark gray metal lock, hinges and door pull components

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Upper display storage	Two hinged smoked-glass doors provide visual access to six display compartments while limiting dust exposure
Lower concealed storage	Three lower wood-grain doors conceal files, supplies or personal items behind a lockable front elevation
Central locking	One key-operated lock positioned on the lower middle door secures the main lower storage doors
Shelf organization	Five horizontal shelves create separated levels for books, binders and display objects, with pin-adjustable supports recommended for procurement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	Placed behind or beside a desk for binders, awards, books and confidential materials, combining display and lockable storage
Manager work area or meeting room	Used along a wall to keep documents accessible while maintaining a dark formal wood-grain appearance

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16121:2013+A1:2013	Non-domestic storage furniture safety, strength, durability and stability requirements suitable for office procurement
EN 16122:2012	Test methods for strength, durability and stability of domestic and non-domestic storage furniture
EN 14073-2:2004	Office storage furniture safety requirements for general storage cabinets
EN 12150-1:2015	Thermally toughened soda-lime silicate safety glass used if glazed doors are specified as tempered glass

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2024	General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, workmanship and stability inspection
GB/T 3325-2017	Test method for metal furniture hardware, applicable to hinge, lock and shelf-support durability verification
GB 18580-2017	Formaldehyde emission control for wood-based panels and finished wood furniture used indoors
GB/T 10357.5-2011	Strength and load test method for storage furniture shelves and cabinets

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2024: General technical requirements for wooden furniture, applicable to panel dimensions, edge finishing, workmanship and stability inspection;
2. GB/T 3325-2017: Test method for metal furniture hardware, applicable to hinge, lock and shelf-support durability verification;
3. GB 18580-2017: Formaldehyde emission control for wood-based panels and finished wood furniture used indoors;
4. GB/T 10357.5-2011: Strength and load test method for storage furniture shelves and cabinets;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · HC-TALL-1200-400-2000-GD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · HC-TALL-1200-400-2000-GD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · HC-TALL-1200-400-2000-GDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

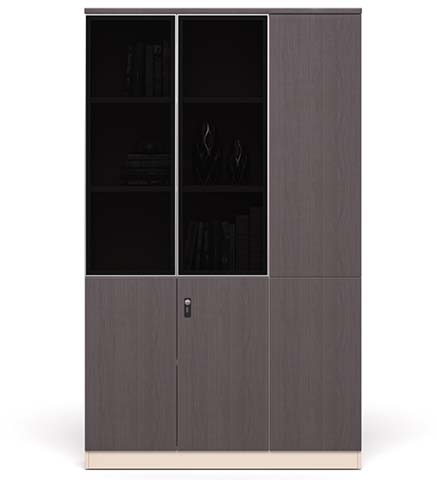

The Dark Wood-Grain Tall Storage Cabinet with Glass and Solid Doors is a formal, full-height storage solution designed to combine visible display space with concealed, lockable storage. Its dark vertical wood-grain exterior presents a coordinated appearance, while the upper smoked-glass doors, lower solid doors, and full-height right-side door create a structured facade suited to professional interiors. Visually, the cabinet is organized in distinct zones. Two hinged tinted glass doors form the upper display section and offer visual access to six compartments while helping reduce dust exposure. Below, three wood-grain doors provide a concealed storage elevation for files, supplies, or personal items. A full-height wood-grain panel door on the right is divided horizontally into upper and lower face sections, maintaining the cabinet’s clean rectangular form and balanced layout. Five horizontal shelves create separated levels for books, binders, and display objects. The cabinet is constructed from dark wood-grain engineered board with a vertical grain melamine or veneered finish. Main cabinet panels and shelves are specified with substantial thickness for a robust furniture profile, while the back panel uses a thinner board. Upper doors use smoked tempered glass set within dark framed leaves, and lower doors feature matching wood-grain engineered board with square edge banding. Metal hinges, a key-operated lock, and dark door-pull components complete the hardware specification in matte black or dark gray. The cabinet rests on a light-color plinth that contrasts subtly with the dark body. Functionally, the upper area supports curated display, while the lower section keeps materials out of view. A central lock positioned on the lower middle door secures the main lower storage doors, making the cabinet suitable for documents and personal effects that require controlled access. Pin-adjustable shelf supports are recommended for procurement when flexible shelf positioning is desired. The listed load ratings support normal office storage use across shelves, cabinet top, and overall distributed load, with hinge capacity specified per door. This cabinet is well suited to executive offices placed behind or beside a desk for binders, awards, books, and confidential materials. It also works along a wall in manager work areas or meeting rooms where documents should remain accessible without disrupting a dark, formal wood-grain aesthetic. Buyers should plan for a two-carton set, verify delivery and access against packaged dimensions, and allow professional handling due to the product’s weight. Installation time is referenced at forty minutes per set, and site planning should account for the recommended loaded floor pressure, door swing clearance, and whether adjustable shelf hardware is required.
