PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 420 × 2000 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Unit net weight	190 kg
Packaged gross weight	230 kg
Static load per fixed shelf	25 kg
Top surface distributed load	40 kg
Closed cabinet storage load per compartment	30 kg
Display object height capacity in upper bays	280 mm
LED linear light quantity	5 strips
LED service life	30000 hours
Color temperature	3000 K
Shelf Distributed Load	30 kg/shelf

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Exposed doors and fronts	Walnut wood veneer over engineered board with a vertical grain finish
Carcass and shelf interiors	Matte dark grey or taupe engineered board with sealed edges
Back panels	Recessed matte board backing with shadow-gap construction
Illumination	Recessed aluminum-channel LED strips with diffused warm-white lenses
Base structure	Continuous low plinth in dark engineered board or metal-trimmed board
Door hardware	Concealed sliding or push-to-open hardware for handle-free fronts

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Open display storage	Five illuminated shelf levels provide 350 mm deep display space for books, art objects and branded decor
Concealed storage	The right full-height door, upper horizontal panel and lower doors provide closed storage for files and loose items
Integrated ambient lighting	Five recessed warm-white LED strips wash the rear shelf area and require a low-voltage power connection
Mixed sliding or push-open access	Handle-free door fronts suggest sliding panels on the tall bay and push-open panels on lower storage

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office and manager workspace	Use as a background storage wall for books, awards, samples and concealed files while maintaining a premium walnut finish
Hospitality lounge or premium reception area	Place behind a reception sofa or waiting zone for curated decor, ambient lighting and hidden operational storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	ANSI/BIFMA X5.9 Storage Units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DSC-W2400-H2000-LED

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DSC-W2400-H2000-LED

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DSC-W2400-H2000-LEDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

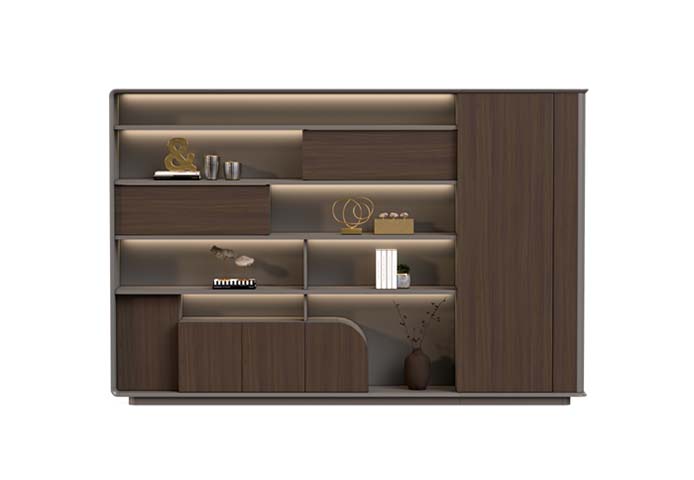

The Walnut-Veneer Illuminated Modular Storage Display Cabinet, model DSC-W2400-H2000-LED, is a floor-standing display cabinet offered without a brand label. Its design combines the warmth of walnut wood veneer with a subdued matte dark grey lacquered carcass, creating a refined backdrop for executive, hospitality, and premium reception settings. Vertical grain on the exposed doors and fronts gives the piece a consistent visual rhythm, while the recessed matte back panels use shadow-gap construction to add depth. A curved end panel softens the tall cabinet form, and the continuous low plinth base grounds the composition with a clean, tailored profile. Construction uses walnut wood veneer over engineered board for doors and fronts, with 22 mm door and drawer fronts, 25 mm carcass panels and shelves, and a 9 mm back panel. Interiors are finished in matte dark grey or taupe engineered board with sealed edges. Metal hardware supports the handle-free exterior, with concealed sliding or push-to-open mechanisms; the tall right-hand bay reads as a sliding panel, while lower storage uses push-open panels. The unit has a net weight of 190 kg and rests on a dark engineered-board or metal-trimmed plinth. Five open shelf levels provide 350 mm deep illuminated display space for books, art objects, awards, samples, and branded decor. The upper bays accommodate display objects up to 280 mm in height, and each fixed shelf supports a static load of 25 kg. Five recessed aluminum-channel warm-white LED strips sit within the cabinet and diffuse light across the rear shelf area, requiring a low-voltage power connection. Closed storage is located behind the full-height right door, an upper horizontal panel, and lower doors, offering concealed room for files and loose items. Each closed compartment is rated for 30 kg, and the top surface carries a distributed load of 40 kg. This cabinet is suited to an executive office or manager workspace as a background storage wall, or to a hospitality lounge and premium reception area placed behind a sofa or waiting zone. Buyers should plan for electrical access for the integrated lighting and confirm loading against the stated shelf, compartment, and top-surface capacities. Delivery and installation planning should account for a two-carton set, 40-minute reference assembly time, and substantial packaged weight. The reference packaging record also lists an alternative three-carton split at 100 kg per set, so carton count should be confirmed at order confirmation.

Walnut-Veneer Illuminated Modular Storage Display Cabinet Specifications
