PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	940 × 940 × 760 mm
Overall table dimensions	940 x 940 x 760 mm
Table slat gap width	10 mm
Table leg section size	60 x 60 mm
Chair seat height	420 mm
Chair seat depth	520 mm
Chair seat width	500 mm
Chair backrest height	460 mm
Chair armrest height	660 mm
Umbrella hole diameter	50 mm
Knee clearance under table	660 mm
Minimum required clearance around set	915 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Single chair static weight capacity	163 kg
Tabletop static weight capacity	100 kg
Total set assembled weight	41 kg
Set seating capacity	4 people
Finish UV fade resistance lifespan	2 years
Chair frame static load test rating	200 kg
Slat surface water drainage rate	100%
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Table and chair slats	12 mm thick matte black HDPE slats
Structural framing	30 x 30 mm black powder-coated steel square tube
Fastening hardware	304 stainless steel screws and bolts
Chair foot pads	8 mm thick non-slip nylon glides
Tabletop edge trim	Matte black HDPE edge banding
Armrests	Integral 40 mm wide HDPE/coated steel rails
Surface finish	Textured matte black powder coat/HDPE colorant
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Tabletop drainage design	Horizontal slats with uniform gaps drain rainwater without pooling
Center umbrella compatibility	Pre-drilled 50mm center hole accepts standard patio umbrellas
Chair seating function	Fixed-position stationary armchairs with slatted seats and backs for air flow
Chair stackability	Chairs stack vertically for off-season storage
Surface maintenance	Smooth non-porous slats wipe clean with water and soft brush
Uneven surface stability	Nylon glide feet adjust slightly for stability on grass or uneven patios
Assembly design	Pre-drilled components with included hardware for bolt-together assembly
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential patio application	Suitable for backyard patios, garden decks, and balcony dining areas
Commercial outdoor dining use	Appropriate for cafe patios, bistro outdoor seating, and resort terrace areas
All-season outdoor placement	Designed for year-round outdoor use in rain and sun exposure
Casual dining configuration	Ideal for everyday outdoor meals, small gatherings, and leisure drinks
Low-maintenance installation	Suitable for rental properties and vacation homes with minimal upkeep requirements
Small-space footprint	Fits compact outdoor areas with 940mm square footprint and required clearance

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017	Outdoor furniture seating and tables safety requirements, structural stability benchmark
EN 581-2:2019	Outdoor furniture mechanical safety test methods for seating, strength validation reference
EN 581-3:2019	Outdoor furniture mechanical safety test methods for tables, load capacity validation reference

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for structural safety benchmarks
GB/T 28007-2011	Outdoor furniture general safety requirements, applicable for stability and load safety checks

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for structural safety benchmarks；
2. GB/T 28007-2011：Outdoor furniture general safety requirements, applicable for stability and load safety checks；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · ODS-BLK-SQ-4S-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · ODS-BLK-SQ-4S-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ODS-BLK-SQ-4S-01打开导出工具

页面快速操作

发布采购询价

产品描述

This 5-piece all-weather outdoor dining set supports seating for 4, designed for reliable year-round use across residential and commercial outdoor spaces. The set features a unified matte black slatted design across its square dining table and four fixed-position armchairs, delivering a streamlined, modern visual profile that blends with both casual and curated outdoor environments. The square table occupies a compact footprint suited to smaller outdoor areas, with evenly spaced horizontal slats forming the tabletop and matching slatted construction for chair seats and backrests, balanced by integrated armrests that add visual cohesion and structured support. The set is built with 12mm thick matte black HDPE slats, mounted on a 30x30mm black powder-coated steel square tube structural frame secured with 304 stainless steel screws and bolts. Table edges are finished with matching matte black HDPE edge banding, while chair bases are fitted with 8mm thick non-slip nylon glides. The textured matte black surface finish resists the elements, with a UV fade resistance lifespan of 2 years for consistent color retention. Functional design elements support convenient daily use: evenly spaced 10mm table slat gaps deliver 100% surface water drainage to eliminate rainwater pooling, and a pre-drilled 50mm center hole accommodates standard patio umbrellas for adjustable shade. The slatted chair construction promotes steady air flow for comfortable seating in warm weather, and chairs stack vertically to simplify off-season storage. Non-porous slat surfaces wipe clean easily with water and a soft brush for low-effort maintenance, and the nylon glide feet adjust slightly to maintain stability on grass or uneven patio surfaces. Pre-drilled components and all included hardware enable straightforward bolt-together assembly. The set suits residential backyards, garden decks, balcony dining areas, as well as commercial cafe patios, bistro outdoor seating zones, and resort terraces. It is also well suited to rental properties and vacation homes due to its minimal upkeep requirements. Procurement teams and individual buyers should note the set ships in 2 cartons, requires 40 minutes of assembly time per unit, and is stocked as unbranded model ODS-BLK-SQ-4S-01. Six finish options are available to match varied site design palettes.

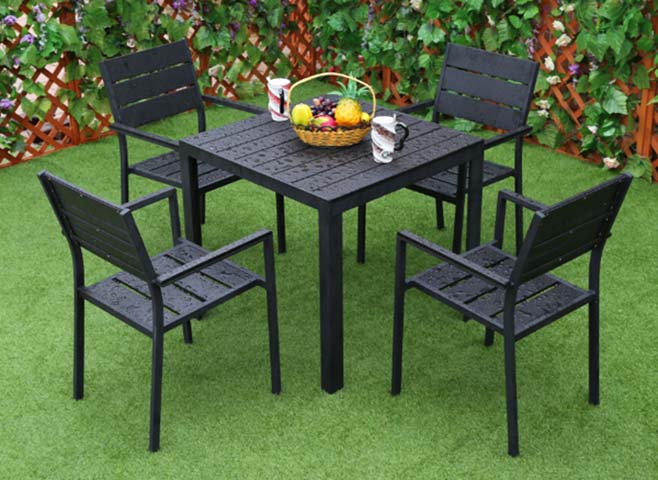

5-Piece All-Weather Black Slatted Square Outdoor Dining Set for 4 Specifications
