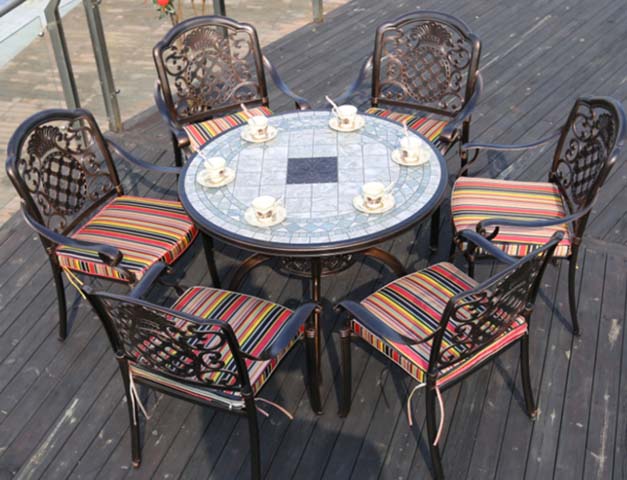

7-Piece Dark Bronze Cast Aluminum Round Tile-Top Outdoor Patio Dining Set with Striped Cushions Specifications

ODS-CA-7P-RND-TILE-STR

代码:C9SE74V1
获取供应商报价
2026-08-14 20:54人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ODS-CA-7P-RND-TILE-STR

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall set footprint (table centered with chairs pulled out)2440 x 2440 x 940 mm
Round dining table overall dimensions1524 mm diameter x 762 mm height
Central table umbrella hole diameter60 mm
Table pedestal base spread diameter762 mm
Per dining armchair overall dimensions580 mm wide x 580 mm deep x 940 mm high
Chair seat dimensions (cushion platform)510 mm wide x 500 mm deep
Chair seat height (floor to top of cushion)460 mm
Chair backrest height (seat surface to top of back)480 mm
Chair armrest height (floor to top of arm)660 mm
Seat cushion thickness50 mm
Table apron clearance (floor to underside of table top)660 mm
Cast aluminum frame wall thickness4 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total set net weight (reference)159 kg
Maximum static load per dining chair136 kg
Maximum distributed static load for table top159 kg
Seating capacity6 people
Powder coating UV fade resistance (exterior rating)1000 hours
Cast aluminum frame rust/corrosion resistanceLifelong for coated frames
Cushion fabric water repellency rating800 mm
Cushion foam quick-dry performance4 hours drying time after light rain exposure
Adjustable foot glide vertical adjustment range10 mm
Recommended residential warranty period3 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Table and chair frame constructionSand-cast aluminum alloy with dark bronze powder-coated finish
Round table top surfaceGlazed ceramic tile with light gray grid pattern and central dark square inlay
Table top edge trimMatching cast aluminum dark bronze band with decorative scroll detail
Table pedestal and support legsCast aluminum with curved scroll bracing connecting central column to base feet
Seat cushion fabricSolution-dyed polyester with multi-color horizontal stripe pattern
Seat cushion fill50mm thick open-cell quick-dry polyurethane foam
Cushion attachment hardwarePolyester fabric ties to secure cushions to chair seat frames
Chair armrestsIntegral cast aluminum matching dark bronze frame finish
Chair leg feetNylon non-scratch adjustable glides
Chair backrest constructionOrnate openwork cast aluminum scroll and lattice pattern
Fastener hardwareStainless steel bolts and nuts for knock-down assembly
Table central insert60mm diameter plastic umbrella hole cap
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Table configurationFixed round pedestal dining table with central umbrella hole for shade umbrella installation
Chair designFixed-position non-swivel dining armchairs with open decorative backs
Cushion functionalityRemovable tie-on seat cushions with reversible covers for easy cleaning and seasonal storage
Foot glide functionalityTwist-adjustable nylon glides on each leg to level furniture on uneven patio or deck surfaces
Assembly requirementKnock-down assembly required for table base and chair frames using included stainless steel hardware
Surface drainageTile table top with sealed grout lines to shed rainwater without pooling
Weather performanceFully weather-resistant construction suitable for year-round exterior placement with minimal maintenance
Seat ergonomicsSlightly curved cast aluminum seat pan to support cushions and reduce pressure points during extended seating
Armrest functionalityWide curved armrests integrated into chair frames for stable arm support during dining
Backrest supportContoured scrollwork backrest with upper lumbar support curve for upright dining posture
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Packaging Volume0.8 m³/set
Reference Packaged Gross Weight120 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential patio/deck diningSuitable for backyard wooden decks, stone patios, and covered porches for family meals
Small outdoor café seatingAppropriate for sidewalk café or bistro patio seating for 6 guests
Garden or poolside dining areaSuitable for placement near pools or garden spaces due to rust-resistant aluminum construction
Seasonal outdoor entertainingIdeal for summer barbecues, holiday gatherings, and casual outdoor events seating 6 adults
Balcony dining (large outdoor balconies)Fits on large residential balconies with minimum 2.5m x 2.5m clear floor space
Sunroom or three-season room useCan be used in enclosed sunrooms as durable dining furniture with classic ornamental style
Recommended complementary accessoriesPaired with a 60mm diameter market patio umbrella and outdoor rug for full dining setup
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 581-1:2017Safety requirements for outdoor seating furniture, applicable to chair structural stability and load capacity
EN 581-2:2019Mechanical safety requirements for outdoor tables, applicable to table stability and load performance
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for metal furniture, applicable to frame structural integrity and finish quality
GB 28481-2012Restriction of hazardous substances in furniture, applicable to coating and fabric material safety
GB/T 17657-2017Test methods for surface finish performance, applicable to coating abrasion and UV resistance testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for metal furniture, applicable to frame structural integrity and finish quality;
2. GB 28481-2012:Restriction of hazardous substances in furniture, applicable to coating and fabric material safety;
3. GB/T 17657-2017:Test methods for surface finish performance, applicable to coating abrasion and UV resistance testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ODS-CA-7P-RND-TILE-STR

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ODS-CA-7P-RND-TILE-STR

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ODS-CA-7P-RND-TILE-STR打开导出工具

页面快速操作

发布采购询价

产品描述

The JINQIU 7-Piece Dark Bronze Cast Aluminum Round Tile-Top Outdoor Patio Dining Set, model ODS-CA-7P-RND-TILE-STR, is crafted for coordinated outdoor dining use, with a cohesive classic ornate design anchored by a central round pedestal table surrounded by six fixed-position armchairs. Frames across the set are built from sand-cast aluminum alloy finished in a dark bronze powder coat, accented with intricate scrollwork details on the table edge trim, curved pedestal bracing, and open chair backs. The table top features glazed ceramic tile laid in a light gray grid pattern with a central dark square inlay, bordered by a matching cast aluminum band, and fitted with a central hole for shade umbrella installation. Sealed grout lines across the tile surface shed rainwater to prevent pooling. Each chair is fitted with removable, tie-on seat cushions covered in solution-dyed polyester with a multi-color horizontal stripe pattern, filled with quick-dry open-cell polyurethane foam; cushion covers are reversible to simplify cleaning and seasonal storage. Chair legs terminate in twist-adjustable nylon non-scratch glides that level the set on uneven outdoor surfaces, and armrests are integrated directly into the cast frame for a seamless finish. Delivered in two cartons with included stainless steel hardware, the set requires knock-down assembly, with a reference assembly time of 40 minutes per unit. The powder-coated frame finish delivers UV fade resistance for exterior use, with lifelong rust and corrosion protection for coated components, while cushion fabric provides rated water repellency to support year-round exterior placement with minimal maintenance. Each dining chair supports a maximum static load, and the table top supports a maximum distributed static load for standard dining use. This set fits seamlessly across both residential and light commercial spaces: it serves backyard decks, stone patios, covered porches, large balconies, enclosed sunrooms, and poolside or garden areas for family meals and seasonal entertaining, and works equally well for sidewalk café and small bistro patio seating for up to six guests. When planning procurement, teams and residential buyers should account for required clear floor space to accommodate the full set footprint when chairs are pulled out for use, confirm storage access for removable cushions during extended periods of non-use, and plan for simple routine cleaning of tile and frame surfaces to preserve the finish long-term.
