Modular Hexagonal Upholstered Ottoman Seating Set with Round Side Tables Specifications

MOD-OTTO-HEX-8PC

代码:FXTR4PV1
获取供应商报价
2026-08-05 17:11人气: 55
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MOD-OTTO-HEX-8PC

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled curved layout dimensions4200 x 1800 x 450 mm
Single hexagonal ottoman seat width (flat to flat)600 mm
Single hexagonal ottoman seat depth (point to point)690 mm
Single ottoman seat height450 mm
Large round side table diameter600 mm
Large round side table height550 mm
Small 3-tier round side table diameter400 mm
Small 3-tier round side table height700 mm
Clear floor space under side tables470 mm for large table; 620 mm for small 3-tier table
Modular seam gap between adjacent ottomans10 mm
Overall assembled maximum S-shaped layout dimensions4200 x 1800 x 450 mm
Single ottoman seat total height450 mm
Ottoman upholstered side panel height370 mm
Large single-tier round side table top diameter600 mm
Large single-tier round side table total height550 mm
Small 3-tier round side table top shelf diameter400 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Single ottoman uniform distributed load capacity150 kg
Total set seating capacity (adults)8 persons
Single ottoman unit weight range maximum12 kg
Large side table unit weight8 kg
Small 3-tier side table unit weight10 kg
Upholstery abrasion resistance reference (Martindale)30000 cycles
Total set maximum seating capacity (adults)8 persons
Single ottoman unit maximum weight12 kg
Upholstery abrasion resistance target (Martindale)30000 cycles
Side table frame corrosion resistance grade (salt spray)48 hours
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Ottoman top and side upholsteryWoven polyester fabric in four solid colors (yellow, purple, teal, lime green)
Ottoman seat cushion fillHigh-resilience polyurethane foam, 80 mm thick top layer over firm base foam
Ottoman internal support framePlywood and solid wood strip frame, 15 mm panel thickness
Ottoman bottom baseBlack non-woven fabric dust cover with plastic floor glides
Large side table topRound tempered glass with black tinted finish, 8 mm thickness
Large side table frameBrass-finished welded steel tubular frame, 25 mm tube diameter, circular lower foot ring
Small 3-tier side table shelvesThree round clear/frosted glass shelves, 6 mm thickness each
Small 3-tier side table framePolished chrome-plated steel tubular frame, 20 mm tube diameter, three support rails per shelf
Ottoman top and side upholstery fabricWoven polyester fabric in four solid colors (yellow, purple, teal, lime green) with 0.8mm thickness
Ottoman seat cushion fill layerHigh-resilience polyurethane foam, 80 mm thick top layer over 320 mm thick firm base foam block
Ottoman bottom base and floor contactBlack non-woven fabric dust cover with 4 integrated white plastic floor glides at corners
Large side table top surfaceRound tempered glass with black tinted finish, 8 mm thickness, polished edge treatment
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular reconfiguration8 individual hexagonal ottomans can be rearranged into S-curves, circles, straight benches, or standalone units; each unit is freestanding without mechanical connectors
Multi-surface side table functionLarge single-tier table provides a single horizontal surface for drinks, decor, or laptops; small 3-tier table offers vertical storage for books, plants, or accessories
Floor protectionOttoman base glides and metal table foot rings distribute load and prevent scratching on hard floor surfaces
Color-mix customization potentialUnits are available in four distinct solid fabric colors, enabling custom color layout configurations per project
Lightweight mobilityIndividual ottomans and tables are low-weight for frequent layout changes in flexible work or event spaces
Low-profile lounge seating ergonomics450 mm seat height supports casual perching, cross-legged sitting, and collaborative group interaction in open areas
Modular layout reconfiguration8 individual hexagonal ottomans can be rearranged into S-curves, full circles, straight benches, or standalone units; each unit is fully freestanding without mechanical connecting hardware
Multi-height side table support550 mm tall large single-tier table provides a horizontal surface for drinks, decor, or laptops at armrest height; 700 mm tall small 3-tier table offers 3 vertical storage tiers for books, plants, or accessories
Hard floor surface protectionOttoman base plastic glides and metal table circular foot rings distribute unit load and prevent abrasive scratching on vinyl, tile, or hardwood floor surfaces
Custom color layout configurationUnits are offered in four distinct solid fabric colors, enabling project-specific color layout configurations per space design requirements
Lightweight manual mobilityIndividual 12 kg ottomans and 10 kg side tables are manually movable for frequent layout changes in flexible work or event spaces without specialized tools
Casual low-profile seating ergonomics450 mm seat height supports casual perching, cross-legged sitting, and collaborative group interaction in open public areas with a 200 mm lower profile than standard task chairs
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Total package count (8 ottomans + 2 tables)10 cartons
Single ottoman carton dimensions650 x 650 x 480 mm
Single ottoman carton gross weight14 kg
Large side table carton dimensions650 x 650 x 600 mm
Large side table carton gross weight10 kg
Small 3-tier side table carton dimensions450 x 450 x 750 mm
Small 3-tier side table carton gross weight12 kg
Total shipment volume (10 cartons)2.8 CBM
Assembly time per side table20 minutes
Single ottoman carton maximum gross weight14 kg
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open-plan office break-out zonesSuitable for casual collaboration and impromptu meetings, as modular layout adapts to group sizes from 1 to 8 people
Lobby and waiting areasColorful multi-unit configuration creates a welcoming, modern seating feature for visitor waiting spaces
School and university common areasLightweight movable units support flexible seating for study groups, events, or student lounges
Exhibition and event venuesModular units can be quickly reconfigured between events or used as standalone accent seating around display areas
Co-working lounge spacesCombined with the included round side tables, the set forms complete informal work and refreshment nooks
Commercial lobby and visitor waiting areasColorful multi-unit curved configuration creates a welcoming, modern seating feature for visitor waiting spaces in offices, clinics, or service halls
Exhibition and event venue temporary seatingModular units can be quickly reconfigured between events or used as standalone accent seating around display booths and registration areas
Co-working space lounge nooksCombined with the included round side tables, the set forms complete informal work and refreshment nooks for up to 8 users in shared workspaces
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

BS EN 125202015 Furniture. Seating. Test methods for the determination of stability, strength and durability
BS EN 140722003 Furniture. Glass in furniture. Requirements and test methods
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MOD-OTTO-HEX-8PC

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MOD-OTTO-HEX-8PC

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MOD-OTTO-HEX-8PC打开导出工具

页面快速操作

发布采购询价

产品描述

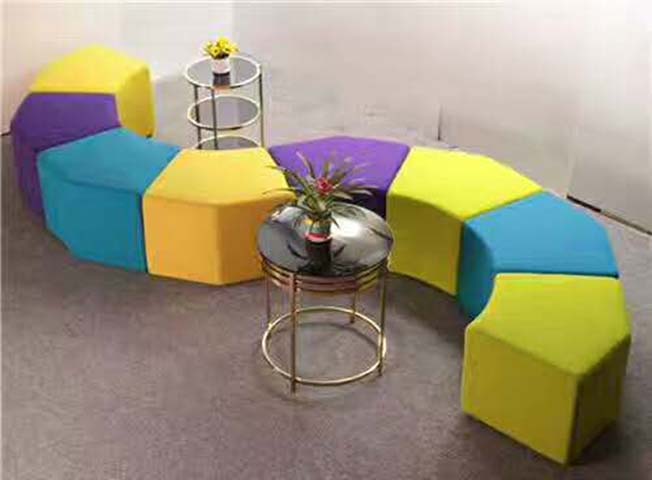

The KAIERTE MOD-OTTO-HEX-8PC Modular Hexagonal Upholstered Ottoman Seating Set with Round Side Tables is a versatile public furniture solution designed for flexible collaborative spaces. In its maximum 8-piece S-shaped configuration, the set creates a flowing, visually dynamic curved layout spanning 4200 mm wide, 1800 mm deep, with a 450 mm seat height that balances approachability and casual comfort. Individual hexagonal ottoman modules measure 600 mm flat-to-flat in width, 690 mm point-to-point in depth, with a narrow 10 mm gap between adjacent units when placed together for a cohesive, polished look. The set includes two complementary side tables: a 550 mm tall large single-tier table with a 600 mm diameter black tinted tempered glass top, and a 700 mm tall small 3-tier table with 400 mm diameter clear or frosted glass shelves, supported by brass-finished and chrome-plated welded steel tubular frames respectively. Clearance under the tables, at 470 mm for the large unit and 620 mm for the 3-tier unit, allows comfortable foot placement for seated users. Ottomans feature woven polyester upholstery available in four bold solid colors—yellow, purple, teal, and lime green—over an 80 mm thick high-resilience polyurethane foam top cushion and firm base foam, supported by an internal plywood and solid wood strip frame. Each unit has a black non-woven fabric dust cover on the base, fitted with plastic floor glides that, paired with the tables’ circular metal foot rings, prevent scratching on hard flooring surfaces. The fabric meets a 30000-cycle Martindale abrasion target for high-traffic commercial use, while steel frames meet a 48-hour salt spray corrosion resistance target for indoor public environments. The fully freestanding ottomans require no mechanical connectors, allowing quick reconfiguration into S-curves, full circles, straight benches, or separate standalone seating to suit changing group needs. The set accommodates up to 8 adults at full capacity, with each ottoman supporting a 150 kg uniform distributed load. The low-profile 450 mm seat height supports casual perching, cross-legged sitting, and relaxed group interaction. Individual ottomans weigh 12 kg, while the large and small side tables weigh 8 kg and 10 kg respectively, enabling easy, tool-free repositioning for frequent layout changes. The large side table sits at armrest height for convenient placement of drinks, decor, or laptops, while the 3-tier table offers vertical storage for reading materials, plants, or small accessories. This set is well-suited for open-plan office breakout zones, commercial lobbies and waiting areas, school and university common spaces, exhibition and event venues, and co-working lounge nooks, where its vibrant color options and adaptable form can create welcoming, functional seating clusters. For procurement, note the set ships in 10 separate cartons with a total shipment volume of 2.8 CBM, with each ottoman arriving fully assembled and each side table requiring 20 minutes of on-site assembly using included hardware. All stated material and performance specifications are procurement targets, so teams should confirm exact fiber composition, foam density, glass treatment, and material finishes with supplier documentation prior to final purchase to align with project requirements.
