Name: Modular Hexagonal Upholstered Ottoman Seating Set with Round Side Tables
Brand: KAIERTE
SKU: FXTR4P

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4200 × 1800 × 450 mm
Overall assembled curved layout dimensions	4200 x 1800 x 450 mm
Single hexagonal ottoman seat width (flat to flat)	600 mm
Single hexagonal ottoman seat depth (point to point)	690 mm
Single ottoman seat height	450 mm
Large round side table diameter	600 mm
Large round side table height	550 mm
Small 3-tier round side table diameter	400 mm
Small 3-tier round side table height	700 mm
Clear floor space under side tables	470 mm for large table; 620 mm for small 3-tier table
Modular seam gap between adjacent ottomans	10 mm
Overall assembled maximum S-shaped layout dimensions	4200 x 1800 x 450 mm
Single ottoman seat total height	450 mm
Ottoman upholstered side panel height	370 mm
Large single-tier round side table top diameter	600 mm
Large single-tier round side table total height	550 mm
Small 3-tier round side table top shelf diameter	400 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Single ottoman uniform distributed load capacity	150 kg
Total set seating capacity (adults)	8 persons
Single ottoman unit weight range maximum	12 kg
Large side table unit weight	8 kg
Small 3-tier side table unit weight	10 kg
Upholstery abrasion resistance reference (Martindale)	30000 cycles
Total set maximum seating capacity (adults)	8 persons
Single ottoman unit maximum weight	12 kg
Upholstery abrasion resistance target (Martindale)	30000 cycles
Side table frame corrosion resistance grade (salt spray)	48 hours

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Ottoman top and side upholstery	Woven polyester fabric in four solid colors (yellow, purple, teal, lime green)
Ottoman seat cushion fill	High-resilience polyurethane foam, 80 mm thick top layer over firm base foam
Ottoman internal support frame	Plywood and solid wood strip frame, 15 mm panel thickness
Ottoman bottom base	Black non-woven fabric dust cover with plastic floor glides
Large side table top	Round tempered glass with black tinted finish, 8 mm thickness
Large side table frame	Brass-finished welded steel tubular frame, 25 mm tube diameter, circular lower foot ring
Small 3-tier side table shelves	Three round clear/frosted glass shelves, 6 mm thickness each
Small 3-tier side table frame	Polished chrome-plated steel tubular frame, 20 mm tube diameter, three support rails per shelf
Ottoman top and side upholstery fabric	Woven polyester fabric in four solid colors (yellow, purple, teal, lime green) with 0.8mm thickness
Ottoman seat cushion fill layer	High-resilience polyurethane foam, 80 mm thick top layer over 320 mm thick firm base foam block
Ottoman bottom base and floor contact	Black non-woven fabric dust cover with 4 integrated white plastic floor glides at corners
Large side table top surface	Round tempered glass with black tinted finish, 8 mm thickness, polished edge treatment

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular reconfiguration	8 individual hexagonal ottomans can be rearranged into S-curves, circles, straight benches, or standalone units; each unit is freestanding without mechanical connectors
Multi-surface side table function	Large single-tier table provides a single horizontal surface for drinks, decor, or laptops; small 3-tier table offers vertical storage for books, plants, or accessories
Floor protection	Ottoman base glides and metal table foot rings distribute load and prevent scratching on hard floor surfaces
Color-mix customization potential	Units are available in four distinct solid fabric colors, enabling custom color layout configurations per project
Lightweight mobility	Individual ottomans and tables are low-weight for frequent layout changes in flexible work or event spaces
Low-profile lounge seating ergonomics	450 mm seat height supports casual perching, cross-legged sitting, and collaborative group interaction in open areas
Modular layout reconfiguration	8 individual hexagonal ottomans can be rearranged into S-curves, full circles, straight benches, or standalone units; each unit is fully freestanding without mechanical connecting hardware
Multi-height side table support	550 mm tall large single-tier table provides a horizontal surface for drinks, decor, or laptops at armrest height; 700 mm tall small 3-tier table offers 3 vertical storage tiers for books, plants, or accessories
Hard floor surface protection	Ottoman base plastic glides and metal table circular foot rings distribute unit load and prevent abrasive scratching on vinyl, tile, or hardwood floor surfaces
Custom color layout configuration	Units are offered in four distinct solid fabric colors, enabling project-specific color layout configurations per space design requirements
Lightweight manual mobility	Individual 12 kg ottomans and 10 kg side tables are manually movable for frequent layout changes in flexible work or event spaces without specialized tools
Casual low-profile seating ergonomics	450 mm seat height supports casual perching, cross-legged sitting, and collaborative group interaction in open public areas with a 200 mm lower profile than standard task chairs

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total package count (8 ottomans + 2 tables)	10 cartons
Single ottoman carton dimensions	650 x 650 x 480 mm
Single ottoman carton gross weight	14 kg
Large side table carton dimensions	650 x 650 x 600 mm
Large side table carton gross weight	10 kg
Small 3-tier side table carton dimensions	450 x 450 x 750 mm
Small 3-tier side table carton gross weight	12 kg
Total shipment volume (10 cartons)	2.8 CBM
Assembly time per side table	20 minutes
Single ottoman carton maximum gross weight	14 kg

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office break-out zones	Suitable for casual collaboration and impromptu meetings, as modular layout adapts to group sizes from 1 to 8 people
Lobby and waiting areas	Colorful multi-unit configuration creates a welcoming, modern seating feature for visitor waiting spaces
School and university common areas	Lightweight movable units support flexible seating for study groups, events, or student lounges
Exhibition and event venues	Modular units can be quickly reconfigured between events or used as standalone accent seating around display areas
Co-working lounge spaces	Combined with the included round side tables, the set forms complete informal work and refreshment nooks
Commercial lobby and visitor waiting areas	Colorful multi-unit curved configuration creates a welcoming, modern seating feature for visitor waiting spaces in offices, clinics, or service halls
Exhibition and event venue temporary seating	Modular units can be quickly reconfigured between events or used as standalone accent seating around display booths and registration areas
Co-working space lounge nooks	Combined with the included round side tables, the set forms complete informal work and refreshment nooks for up to 8 users in shared workspaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

BS EN 12520	2015 Furniture. Seating. Test methods for the determination of stability, strength and durability
BS EN 14072	2003 Furniture. Glass in furniture. Requirements and test methods

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MOD-OTTO-HEX-8PC

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MOD-OTTO-HEX-8PC

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MOD-OTTO-HEX-8PCOpen Export Tool

Quick Actions

Post an RFQ

Product Description

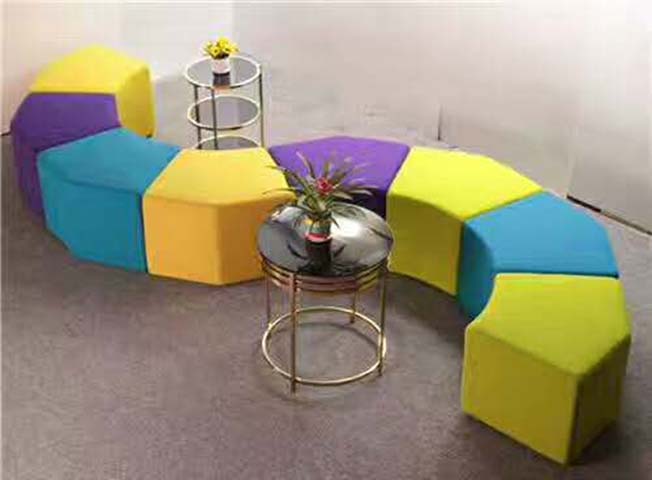

The KAIERTE MOD-OTTO-HEX-8PC Modular Hexagonal Upholstered Ottoman Seating Set with Round Side Tables is a versatile public furniture solution designed for flexible collaborative spaces. In its maximum 8-piece S-shaped configuration, the set creates a flowing, visually dynamic curved layout spanning 4200 mm wide, 1800 mm deep, with a 450 mm seat height that balances approachability and casual comfort. Individual hexagonal ottoman modules measure 600 mm flat-to-flat in width, 690 mm point-to-point in depth, with a narrow 10 mm gap between adjacent units when placed together for a cohesive, polished look. The set includes two complementary side tables: a 550 mm tall large single-tier table with a 600 mm diameter black tinted tempered glass top, and a 700 mm tall small 3-tier table with 400 mm diameter clear or frosted glass shelves, supported by brass-finished and chrome-plated welded steel tubular frames respectively. Clearance under the tables, at 470 mm for the large unit and 620 mm for the 3-tier unit, allows comfortable foot placement for seated users.
Ottomans feature woven polyester upholstery available in four bold solid colors—yellow, purple, teal, and lime green—over an 80 mm thick high-resilience polyurethane foam top cushion and firm base foam, supported by an internal plywood and solid wood strip frame. Each unit has a black non-woven fabric dust cover on the base, fitted with plastic floor glides that, paired with the tables’ circular metal foot rings, prevent scratching on hard flooring surfaces. The fabric meets a 30000-cycle Martindale abrasion target for high-traffic commercial use, while steel frames meet a 48-hour salt spray corrosion resistance target for indoor public environments.
The fully freestanding ottomans require no mechanical connectors, allowing quick reconfiguration into S-curves, full circles, straight benches, or separate standalone seating to suit changing group needs. The set accommodates up to 8 adults at full capacity, with each ottoman supporting a 150 kg uniform distributed load. The low-profile 450 mm seat height supports casual perching, cross-legged sitting, and relaxed group interaction. Individual ottomans weigh 12 kg, while the large and small side tables weigh 8 kg and 10 kg respectively, enabling easy, tool-free repositioning for frequent layout changes. The large side table sits at armrest height for convenient placement of drinks, decor, or laptops, while the 3-tier table offers vertical storage for reading materials, plants, or small accessories.
This set is well-suited for open-plan office breakout zones, commercial lobbies and waiting areas, school and university common spaces, exhibition and event venues, and co-working lounge nooks, where its vibrant color options and adaptable form can create welcoming, functional seating clusters. For procurement, note the set ships in 10 separate cartons with a total shipment volume of 2.8 CBM, with each ottoman arriving fully assembled and each side table requiring 20 minutes of on-site assembly using included hardware. All stated material and performance specifications are procurement targets, so teams should confirm exact fiber composition, foam density, glass treatment, and material finishes with supplier documentation prior to final purchase to align with project requirements.

Modular Hexagonal Upholstered Ottoman Seating Set with Round Side Tables Specifications
