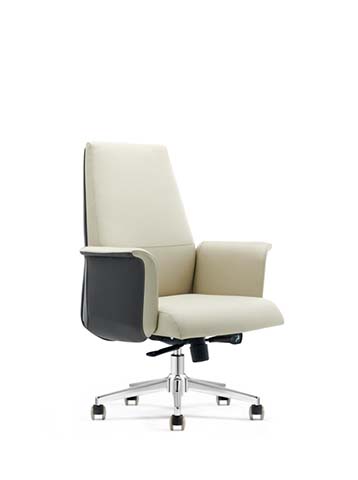

商品供应商High-Back Executive Swivel Chair，Ivory upholstered surface with visible horizontal seam and padded cushion; leather or PU grade requires BOM confirmation
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 660 × 680 × 1180 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Recommended user weight capacity | 160 kg | |
|---|---|---|
| Net weight | 24 kg | |
| Seat foam density | 45 kg/m3 high-resilience polyurethane foam | |
| Back foam density | 35 kg/m3 polyurethane foam | |
| Foam rebound performance | 40 percent rebound | |
| Fabric or leather surface abrasion resistance | 50,000 Martindale cycles | |
| Gas lift vertical stroke | 100 mm | |
| Tilt mechanism static load | 200 kg | |
| Caster rolling durability | 100,000 rolling cycles | |
| Recommended warranty | 5 years structural warranty |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Seat upholstery | Ivory upholstered surface with visible horizontal seam and padded cushion; leather or PU grade requires BOM confirmation | |
|---|---|---|
| Backrest upholstery | Ivory upholstered high-back panel with horizontal lumbar seam and tailored edge piping | |
| Arm pads | Ivory upholstered top pads with rounded front edges over rigid arm supports | |
| Arm side panels | Dark charcoal rigid side panels with a smooth molded surface and protective side profile | |
| Inner seat support | 15 mm molded plywood or steel-reinforced composite seat board under the cushion | |
| Back internal frame | 20 mm steel-tube or molded plywood support frame with upholstered foam stack | |
| Five-star base | Polished aluminum-alloy or chrome-plated steel five-star base with five radial legs | |
| Base leg material thickness | 2.5 mm metal wall or die-cast equivalent section | |
| Gas lift | Chrome-plated telescoping steel gas lift with black lower actuator | |
| Tilt mechanism | Black steel tilt mechanism with side lever and central chassis beneath the seat | |
| Casters | Black and polished twin-wheel swivel casters, five total, with metal mounting stems | |
| Fasteners and fittings | Steel bolts, arm brackets, and mechanism mounting plates with black or zinc finish |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Seat height adjustment | Pneumatic lift with 100 mm vertical stroke controlled by the visible side lever | |
|---|---|---|
| Back recline movement | Synchro-tilt back recline with 15-degree rearward angle and synchronized seat movement | |
| Tilt lock control | Multi-position lock engaged through the under-seat lever to hold selected recline angles | |
| Tilt tension adjustment | Knob-operated tension control calibrated for users up to 160 kg | |
| Fixed padded armrests | Structured arm supports provide 240 mm above-seat forearm support without height or pivot adjustment | |
| Caster mobility | Five 60 mm twin-wheel casters provide omnidirectional movement on hard floors and low-pile carpet | |
| Lumbar support | Horizontal seam and padded lower-back zone provide passive lumbar contouring | |
| Stability system | 700 mm five-star base with twin-wheel contact points resists tipping during normal recline | |
| Occupancy and movement limit | Designed for one seated user at a time and indoor office use on level floors | |
| Back recline clearance | 150 mm rearward travel at the upper back | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Executive office | Suits managers and senior staff because the high back, fixed padded arms, and ivory finish provide a formal executive appearance | |
|---|---|---|
| Management workstation | Pairs with 720 to 760 mm high executive desks for daily computer, meeting, and paperwork tasks | |
| Private meeting room | Provides one-person swivel seating for consultations and short collaborative discussions | |
| Reception or boardroom setting | Fits formal visitor or leadership seating areas where a tailored upholstered look is preferred | |
| Commercial office interior | Recommended for indoor, level-floor environments with hard floors or low-pile carpet | |
| Procurement configuration option | Order seat upholstery, arm panel color, hard-floor or soft-floor casters, and mechanism grade against project standards | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 1335-1 office furniture dimensions | Use the standard's office-chair dimensional measurement basis for seat, back, and clearance verification | |
|---|---|---|
| EN 1335-2 office chair safety | Require structural safety, stability, and caster strength verification for production lot acceptance | |
| EN 1335-3 office chair test methods | Use specified static, fatigue, and impact test methods to validate structural durability |
STANDARD S2
北美市场采购验货参考 * ANSI/BIFMA 标准
美国及加拿大家具标准
| ANSI/BIFMA X5.1 caster test section | Require 100,000-cycle caster durability and floor-safe wheel material verification |
|---|
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 10357.3 furniture mechanical test | Apply seat and back strength/durability test methods for office chairs during procurement inspection | |
|---|---|---|
| GB/T 3324 general technical furniture requirements | Use dimensional, material, and workmanship acceptance requirements for wooden and upholstered furniture components | |
| GB 17927 furniture upholstery safety | Specify degradation-resistant cushioning and upholstered furniture fire-safety review where contractually required |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 10357.3 furniture mechanical test：Apply seat and back strength/durability test methods for office chairs during procurement inspection； 2. GB/T 3324 general technical furniture requirements：Use dimensional, material, and workmanship acceptance requirements for wooden and upholstered furniture components； 3. GB 17927 furniture upholstery safety：Specify degradation-resistant cushioning and upholstered furniture fire-safety review where contractually required； 最终交付参数、检测报告和验收标准以双方采购合同为准。
