PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	580 × 580 × 860 mm
Seat height	480 mm
Seat width	490 mm
Seat depth	540 mm
Backrest height	450 mm
Seat cushion thickness	80 mm
Leg tube diameter	25 mm
Brass foot cap height	30 mm
Backrest width at top	480 mm
Leg splay width (front)	510 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per chair	12 kg
Static weight capacity	150 kg
Seat foam density	45 kg/m³
Foam rebound rate	60%
Fabric abrasion resistance	30000 Martindale cycles
Leg finish corrosion resistance	48 hours salt spray rating
Recommended daily use duration per seat	8 hours
Seam stitch pitch	8 stitches per 30mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Front seat/back upholstery	Light cream performance fabric with vertical quilted stitching
Back panel upholstery	Dark taupe smooth matching fabric
Seat core substrate	12mm thick plywood board under foam
Seat/back padding	High-density polyurethane foam
Leg frame	2mm thick powder-coated black tapered steel tube
Foot caps	Brass-finish metal decorative caps with anti-scratch plastic base
Hardware fasteners	Zinc-plated steel assembly screws
Stitching thread	High-tenacity polyester matched to upholstery color
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating support	Fixed rigid four-leg frame with no recline or swivel function
Back support	Curved wrap-around back with vertical channel quilting for lumbar contact
Floor protection	Plastic base under brass foot caps prevents hard floor scratching
Assembly requirement	Knockdown leg attachment with included hardware and tools
Cleaning maintenance	Wipe-clean upholstery surface suitable for mild soap and water care
Stacking capability	Non-stackable fixed frame design
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining room	Seating for standard 750mm height dining tables for daily family meals
Kitchen island seating	Supplemental seating for kitchen islands at standard dining counter height
Reception waiting area	Light commercial accent seating for office or lounge reception spaces
Cafe bistro seating	Seating for independent cafes and casual dining establishments
Home office guest seating	Side chair for home office desks for visitor use
Recommended pairing	Matched with stone/wood dining tables and black/gold hardware furniture
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture seating safety	EN 12520:2015
Upholstered furniture resistance to ignition	EN 1021:2014
Furniture surface finish durability	EN 15187:2006

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General furniture safety standard	GB/T 3324
Upholstered furniture flame retardancy	GB 20286
Furniture mechanical performance for seating	GB/T 10357.3

Standardized tender description text

This product must meet the following technical requirements:
1. General furniture safety standard: GB/T 3324;
2. Upholstered furniture flame retardancy: GB 20286;
3. Furniture mechanical performance for seating: GB/T 10357.3;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-TTQ-086

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-TTQ-086

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-TTQ-086Open Export Tool

Quick Actions

Post an RFQ

Product Description

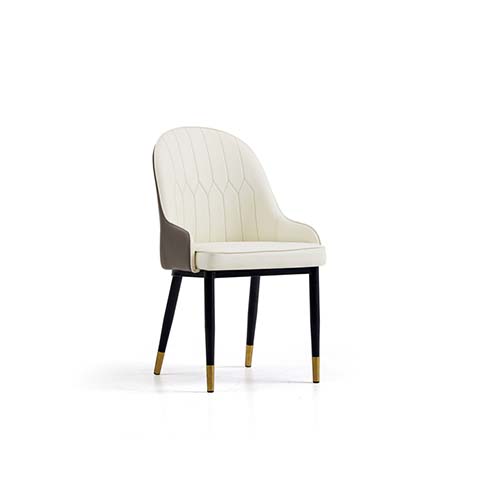

The Two-Tone Quilted Upholstered Dining Chair (model DC-TTQ-086) is an unbranded seating piece aligned with modern light luxury design sensibilities. Its silhouette balances soft, tailored upholstery with a structured four-leg fixed frame, creating a streamlined visual profile. The front of the seat and backrest are covered in light cream performance fabric finished with vertical quilted stitching, while the back panel uses a coordinating dark taupe smooth fabric to create a deliberate two-tone effect. Tapered black powder-coated steel legs are capped with polished brass-finish accents at the base, creating a refined contrast that pairs seamlessly with stone or wood dining tables and other furniture finished with black or gold hardware. The chair is built for durable daily use: high-density polyurethane foam rated for 60% rebound forms the seat and back padding, supported by plywood core substrates. The 80mm thick seat cushion is paired with a 450mm tall curved wrap-around backrest shaped for consistent lumbar contact, with vertical channel quilting maintaining structured support over time. Steel components include 2mm thick tapered leg tubes, zinc-plated assembly fasteners, and brass foot caps fitted with anti-scratch plastic bases to protect hard flooring from scuffs. The upholstered surface resists abrasion through 30000 Martindale cycles, leg finishes hold up to 48 hours of salt spray exposure, and each chair supports a 150kg static weight capacity for up to 8 hours of daily use. The fixed frame does not recline, swivel, or stack, and arrives in knockdown format for on-site assembly, with all required hardware and tools included; assembly takes 40 minutes per chair, with units packaged across two cartons per set. This chair fits a range of residential and light commercial settings, including home dining rooms paired with standard 750mm height dining tables, kitchen island seating at standard dining counter height, home office guest spaces, reception waiting lounges, and independent cafe or bistro dining areas. When procuring, note that this unbranded model does not include coordinated table units, and plan shipping logistics to align with the 0.26 cubic meter per set carton volume and 23kg packaged weight; a 20GP container holds 135 sets at 85% space utilization. Maintenance is simple, as the wipe-clean upholstery can be cared for with mild soap and water.

Two-Tone Quilted Upholstered Dining Chair with Black Metal Legs and Brass Foot Caps Specifications
