PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	630 × 560 × 840 mm
Seat height	460 mm
Seat width	480 mm
Seat depth	420 mm
Backrest height	380 mm
Armrest height above seat	200 mm
Leg base spread width	580 mm
Leg base spread depth	520 mm
Cushion thickness	40 mm
Floor to seat shell underside	420 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per chair	6 kg
Static load capacity	159 kg
Recommended user weight	120 kg
Cushion foam density	35 kg/m³
Cushion foam rebound rate	45%
Leg powder coating scratch resistance	2H pencil hardness
PP shell bend resistance	15000 back flex cycles
Available color options	7
Limited warranty period	3 years
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main seat/back/arm shell	Matte light blue molded polypropylene, single-piece integrated construction
Seat cushion core	High-density polyurethane foam pad, 40mm thickness
Cushion upholstery	Grey woven polyester fabric, 0.6mm face thickness
Leg frame	16mm diameter matte black powder-coated steel tubes, splayed fixed design
Foot glides	Non-marking black polypropylene caps at each leg base
Shell surface finish	Matte textured non-gloss PP, wipe-clean water-resistant surface
Leg attachment hardware	Zinc-plated steel bolts connecting legs to shell underside
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel
Five-star Base Material Thickness	Metal base wall 3.5 mm; diameter 700 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating function	Fixed upright posture design for dining and casual table use, no recline
Assembly requirement	Knock-down leg attachment to pre-finished shell, hardware included
Cushion design	Removable grey fabric cushion secured to seat pan for easy cleaning
Floor protection	Non-marking glides prevent scratching hard floor surfaces during movement
Space efficiency	Stackable up to 4 units when cushions are removed for storage
Armrest support	Integrated curved armrests provide forearm support during seated meals
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining space	Suitable for home dining rooms, paired with standard 750mm height dining tables
Commercial casual dining	Appropriate for cafes, break rooms, and fast-casual restaurant seating
Home office guest seating	Usable as side guest chair in home offices or small meeting spaces
Small apartment dining nooks	Ideal for compact dining areas due to slim profile and stackable storage
Outdoor covered patio use	Suitable for covered outdoor areas with water-resistant PP shell
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic seating safety	EN 12520:2015
Upholstered furniture fire resistance	EN 1021:2014
Metal surface coating durability	EN 12720:2009+A1:2013

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General furniture safety	GB 28007
Metal furniture coating	GB/T 3325
Upholstered furniture formaldehyde	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. General furniture safety: GB 28007;
2. Metal furniture coating: GB/T 3325;
3. Upholstered furniture formaldehyde: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DIN-ARM-PP01-LBL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DIN-ARM-PP01-LBL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DIN-ARM-PP01-LBLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

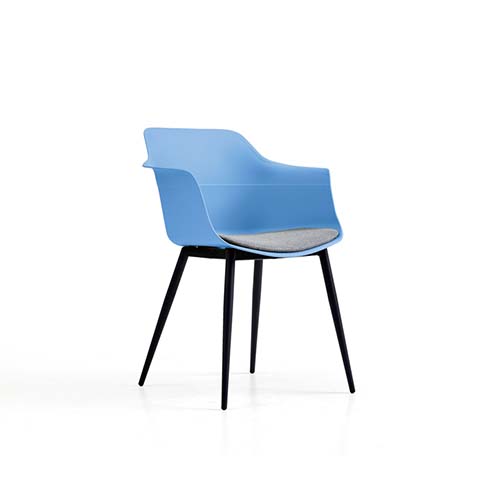

The DIN-ARM-PP01-LBL dining armchair balances minimalist modern styling with functional versatility for both residential and light commercial settings. Its visual profile features a smooth, matte light blue single-piece molded polypropylene shell that integrates gently curved armrests and an upright backrest, paired with a slim grey woven fabric seat cushion and splayed matte black metal legs. The clean, unadorned lines create a light, open visual presence that suits streamlined interior schemes, with consistent textured finishes across the shell and leg frames for a cohesive look. Constructed for regular daily use, the chair’s core shell uses integrated molded polypropylene with a 14mm bent plywood reinforced internal frame, paired with a 14mm bent plywood seat support board. The removable 40mm thick seat cushion uses high-density polyurethane foam with a 0.6mm thick grey woven polyester cover, while the leg frame consists of 16mm diameter powder-coated steel tubes secured to the shell underside with zinc-plated steel bolts, finished with non-marking black polypropylene foot glides. The matte, water-resistant wipe-clean shell surface resists routine spills, and the leg coating delivers 2H pencil hardness scratch resistance, with the shell tested to withstand 15000 back flex cycles for long-term durability. Designed for fixed upright seating aligned with standard dining table heights, the chair supports a 125° seated angle with three lock positions, integrated armrests for forearm support, and non-marking glides that prevent scratches to hard flooring during repositioning. When cushions are removed, up to four chairs can be stacked to minimize storage footprint, and the removable cushion simplifies routine cleaning. The chair ships knock-down with all required hardware included, with a 40 minute per unit assembly time. This chair is suitable for home dining rooms paired with standard 750mm height dining tables, small apartment dining nooks, cafe and fast-casual restaurant seating, office break rooms, home office guest areas, and covered outdoor patios. For procurement, note each unit ships across two cartons, with a 23kg packaged gross weight per set, and 135 sets can fit in a 20GP container at 85% space utilization. The chair supports a 120kg recommended user weight, with a 159kg static load capacity, making it appropriate for regular high-traffic casual seating deployments.

Modern Light Blue Molded Plastic Dining Armchair with Grey Fabric Cushion and Black Splayed Metal Legs Specifications
