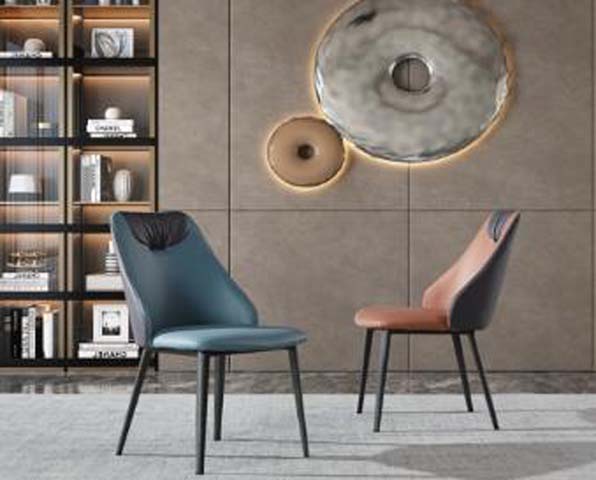

Product supplierModern Two-Tone Armless Upholstered Dining Chair with Black Splayed Metal Legs, 1.0mm thick PU faux leather, matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 560 × 640 × 930 mm | |
|---|---|---|
| Overall assembled dimensions | 560 x 640 x 930 mm | |
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight per single chair | 9 kg | |
|---|---|---|
| Recommended static load capacity | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Seat foam rebound rate | 60% | |
| Backrest foam thickness | 40 mm | |
| PU upholstery abrasion resistance | 50000 cycles | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Anti-slip foot pad diameter | 30 mm | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% | |
| Back Foam Density Reference | 38 kg/m³ |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | 1.0mm thick PU faux leather, matte finish | |
|---|---|---|
| Seat cushion filling | High-resilience polyurethane foam, wrapped in non-woven fabric liner | |
| Backrest filling | Medium-density polyurethane foam, contoured for lumbar support | |
| Support legs | 1.2mm thick carbon steel tube, matte black powder-coated finish | |
| Inner seat frame | 15mm thick multilayer plywood board, connected with metal hardware | |
| Backrest inner support | 12mm thick curved plywood panel, fixed to seat frame with steel brackets | |
| Leg foot pads | Non-slip PE plastic pads, anti-scratch and noise-reducing | |
| Upholstery attachment | Stapled to inner frame with industrial steel staples, stress points reinforced | |
| Seat Internal Support Board Thickness | 14 mm bent plywood or equivalent support board | |
| Backrest Internal Frame Thickness | 14 mm bent plywood/composite reinforced frame | |
| Gas-lift Engineering Specification | Recommended Class 4; outer tube 50 mm; stroke 100 mm | |
| Tilt Mechanism Plate Thickness | 2.5 mm cold-rolled steel |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Fixed upright seating posture optimized for 750mm height standard dining tables | |
|---|---|---|
| Leg stability | Four outward-splayed legs create wide stable base with no cross-brace obstruction | |
| Floor protection | PE foot pads prevent hard floor scratches and reduce movement noise | |
| Cleaning performance | Smooth PU upholstery supports wipe-clean maintenance with damp cloth | |
| Assembly requirement | Knock-down assembly, legs attach to seat frame with included hardware | |
| Back support feature | Contoured curved back provides mid-back support during extended dining use | |
| Color customization | Available in 7 color options including two-tone blue-orange and orange-brown finishes | |
| Leg finish options | Available with matte black or black-gold plated leg finishes | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel | |
| Rotation / Mobility Configuration | 360° swivel with 5-caster multidirectional movement |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential dining room | Paired with standard height dining tables for daily household meal seating | |
|---|---|---|
| Cafe and casual restaurant | Used for customer seating in modern casual food service spaces | |
| Home office visitor seating | Placed on the visitor side of home office desks for guest use | |
| Hotel room lounge area | Used as accent seating in boutique hotel guest rooms or lounge corners | |
| Apartment small-space dining | Suitable for compact dining nooks due to armless slim profile and stable base | |
| Conference room side seating | Used as additional seating in small informal meeting rooms | |
| Recommended Matching Desk Size | 2.4 m executive desk | |
| Reference Daily Use Duration | 8 hours/day; confirm by ergonomic testing |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for domestic seating, applicable for performance validation | |
|---|---|---|
| EN 1022:2018 | Domestic seating stability test standard, applicable for splayed leg stability verification | |
| EN 13356:2016 | Furniture hardware performance standard, applicable for connecting fastener validation |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to inner plywood frame components | |
|---|---|---|
| GB/T 3325-2017 | Metal furniture general technical requirements, applicable to carbon steel leg structure | |
| GB 18584-2001 | Indoor decoration materials harmful substance limit for wooden furniture, applicable for formaldehyde testing | |
| GB/T 16799-2008 | Polyurethane synthetic leather standard, applicable to PU upholstery material testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner plywood frame components; 2. GB/T 3325-2017: Metal furniture general technical requirements, applicable to carbon steel leg structure; 3. GB 18584-2001: Indoor decoration materials harmful substance limit for wooden furniture, applicable for formaldehyde testing; 4. GB/T 16799-2008: Polyurethane synthetic leather standard, applicable to PU upholstery material testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
