PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	540 × 559 × 838 mm
Seat height	508 mm
Seat width	521 mm
Seat depth	457 mm
Backrest height	406 mm
Backrest width	480 mm
Leg diameter	25 mm
Brass foot cap height	50 mm
Seat foam thickness	60 mm
Backrest foam thickness	40 mm
Seat front overhang	30 mm
Leg spread (front to back)	500 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight per unit	12 kg
Static load capacity	150 kg
Recommended user weight	120 kg
Upholstery abrasion resistance	50000 rub cycles
Seat foam density	45 kg/m³
Back foam density	35 kg/m³
Foam rebound rate	60%
Stitching seam pitch	8 mm
Floor protection rating	5/5
Warranty period	2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer back shell	12mm bent plywood with walnut veneer finish
Upholstery material	1.2mm thick navy blue faux leather
Seat padding	High-resilience polyurethane foam
Backrest padding	Medium-density polyurethane foam
Leg construction	1.2mm thick black powder-coated carbon steel
Foot caps	Polished brass-plated metal ferrule with 3mm anti-slip plastic base
Internal frame	15mm plywood structural support under seat and back
Seat edge trim	Matching faux leather binding with reinforced stitching
Leg mounting hardware	Zinc-plated steel M8 mounting bolts
Surface finish on shell	Matte walnut wood grain lacquer
Surface finish on legs	Smooth matte black powder coating
Floor contact pads	Injection-molded non-marking TPE plastic

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Mobility	Fixed stationary 4-leg base
Seating comfort	Concave seat pan with waterfall front edge
Lumbar support	Contoured curved backrest with indented lumbar zone
Floor protection	Anti-slip TPE inserts under brass foot caps
Assembly requirement	Partial on-site leg attachment
Upholstery maintenance	Stain-resistant faux leather surface
Structural stability	Splayed tapered leg design
Stacking capability	Non-stacking construction
Color option count	6 standard upholstery colors
Load distribution	Evenly reinforced frame under seat
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Per unit carton dimensions	600 x 550 x 900 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining room use	Pair with 750mm height standard dining tables for daily meal seating
Kitchen island seating	Use as counter-height adjacent seating for kitchen peninsula areas
Cafe and restaurant seating	Suitable for light commercial food service environments
Home office guest seating	Position at side desks or meeting tables for visitor use
Modern apartment open-plan areas	Complements mid-century and contemporary interior design schemes
Hotel room and lounge areas	Use as bedside or guest room seating for hospitality settings
Showroom and display use	Suitable for furniture showroom display paired with matching dining tables
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable for domestic furniture seating strength, durability and safety requirements
EN 1022:2018	Applicable for seating furniture stability testing for non-adjustable chairs
EN 16139:2013	Applicable for non-domestic seating strength requirements if used in contract settings

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden furniture used on the bentwood shell components
GB/T 3325-2017	Applicable for metal furniture structural safety requirements applied to steel leg construction
GB 18584-2001	Applicable for indoor decoration material formaldehyde emission limits for wood-based panels
GB/T 19941-2005	Applicable for leather and artificial leather abrasion and colorfastness testing for upholstery
GB 28007-2011	Applicable for stability, strength and durability requirements for general seating furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture used on the bentwood shell components;
2. GB/T 3325-2017: Applicable for metal furniture structural safety requirements applied to steel leg construction;
3. GB 18584-2001: Applicable for indoor decoration material formaldehyde emission limits for wood-based panels;
4. GB/T 19941-2005: Applicable for leather and artificial leather abrasion and colorfastness testing for upholstery;
5. GB 28007-2011: Applicable for stability, strength and durability requirements for general seating furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-WS-NVY-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-WS-NVY-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-WS-NVY-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

This unbranded modern armless upholstered dining chair, model DC-WS-NVY-001, features a streamlined, contemporary silhouette defined by a smooth walnut-finished bentwood shell that wraps around the padded seat and back, creating a cohesive, low-profile visual profile. Its armless, compact form fits neatly around table settings without visual clutter, while splayed tapered black powder-coated steel legs finished with polished brass foot caps add a refined metallic contrast to the warm wood tone and deep navy upholstery. The chair’s clean, balanced proportions allow it to integrate seamlessly into mid-century and contemporary design schemes without overwhelming surrounding decor.
Construction centers on durable, purpose-selected materials. A 12mm bent plywood outer shell with walnut veneer encloses an internal 15mm plywood structural frame supporting the seat and back. The seating surfaces are upholstered in 1.2mm thick stain-resistant navy faux leather, finished with matching reinforced-stitch binding along seat edges. High-resilience 45 kg/m³ polyurethane foam pads the seat, paired with medium-density 35 kg/m³ foam for the backrest, delivering a 60% rebound rate for consistent support. Legs are formed from 1.2mm thick black powder-coated carbon steel, fitted with polished brass-plated ferrules capped with 3mm anti-slip plastic inserts, and secured with zinc-plated steel M8 mounting bolts. The faux leather upholstery withstands 50000 rub cycles for long-term wear resistance.
Functional design prioritizes user comfort and practicality. The fixed stationary four-leg base delivers reliable structural stability, while a concave seat pan with a waterfall front edge reduces pressure on the backs of legs during extended seating. A contoured curved backrest with a dedicated indented lumbar zone provides targeted lower back support. The anti-slip inserts under foot caps protect hard flooring surfaces from scuffs and prevent unintended sliding, and the stain-resistant upholstery wipes clean easily for routine maintenance. The chair supports a static load capacity of 150 kg, with a recommended user weight of 120 kg, and requires partial on-site leg attachment with a reference assembly time of 40 minutes per set.
This chair is suited for a wide range of settings. It pairs perfectly with 750mm height standard dining tables for residential dining rooms, functions as adjacent seating for kitchen islands and peninsulas, and works as guest seating for home office side desks or meeting tables. It is appropriate for light commercial cafe and restaurant food service environments, complements open-plan modern apartment layouts, and serves as streamlined bedside or guest room seating in hotel and lounge spaces.
For procurement, note the chair measures 540 x 559 x 838 mm overall, with a 508 mm seat height, 12 kg net weight per unit, and 23 kg packaged gross weight per set, shipped across two cartons with a total reference carton volume of 0.26 m³. The fixed armless design allows for close placement around tables to maximize seating capacity in compact spaces.

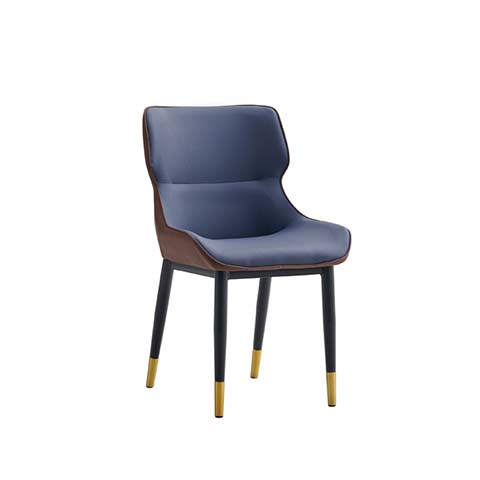

Modern Armless Upholstered Dining Chair with Walnut Shell, Navy Upholstery and Brass-Capped Black Legs Specifications
