PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	580 × 560 × 780 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	9 kg
Static seat load capacity	150 kg
Recommended user weight	120 kg
Leg tip floor contact size	15 mm diameter
Upholstery seam stitch pitch	8 stitches per 30mm
Surface abrasion resistance (upholstery)	50000 double rubs
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles
Five-star Base Static Load Reference	Acceptance target ≥120 kg; chair reference load 150 kg

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Beige faux leather, stitched edge finish
Backrest upholstery	Beige faux leather, curved wraparound form
Seat cushion core	40kg/m³ density high resilience polyurethane foam
Backrest core	35kg/m³ density polyurethane foam
Frame and arm supports	2mm thick matte black powder-coated steel
Leg structure	1.5mm thick tapered matte black powder-coated steel
Leg floor glides	Injection molded nylon non-slip pads
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel
Five-star Base Material Thickness	Metal base wall 3.5 mm; diameter 700 mm

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Back support	Fixed curved wraparound backrest provides lumbar support for upright dining posture
Arm support	Fixed integrated armrests connect backrest to seat frame for stable upper arm rest
Seat function	Fixed padded seat with rounded front edge reduces leg pressure during extended sitting
Stability feature	Four splayed outward legs increase base footprint for anti-tip stability during use
Floor protection	Nylon glides at leg tips prevent scratching on hard wood, tile, or stone floors
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining space	Paired with standard height dining tables in home dining rooms for daily meal use
Commercial cafe and restaurant	Suitable for casual dining venues with modern interior design themes
Office reception and lounge	Used in guest waiting areas or informal meeting spaces for visitor seating
Co-working shared space	Deployed in break areas and open collaboration zones for flexible seating
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Strength, durability, and safety requirements for domestic and contract seating
EN 1021-1:2014	Upholstered furniture flammability test for cigarette ignition source

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture applicable to structural stability testing
GB/T 16799-2008	Performance specification for polyurethane synthetic leather upholstery material

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture applicable to structural stability testing;
2. GB/T 16799-2008: Performance specification for polyurethane synthetic leather upholstery material;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DC-MTL-017

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DC-MTL-017

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DC-MTL-017Open Export Tool

Quick Actions

Post an RFQ

Product Description

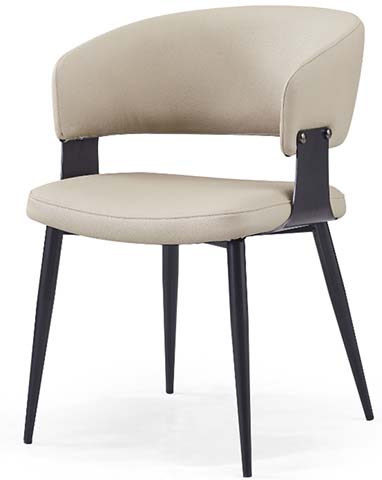

The Modern Upholstered Arm Dining Chair (model DC-MTL-017) is an unbranded fixed dining armchair defined by clean, minimalist modern lines. Its coordinated beige faux leather upholstery wraps the curved wraparound backrest and generously padded seat, finished with neat stitched edges. Matte black powder-coated steel forms the integrated frame, arm supports, and tapered, splayed outward legs, which extend from the seat structure to create a wider base footprint. Softly rounded front seat edges and integrated armrests that connect the backrest seamlessly to the seat frame create a streamlined, cohesive silhouette suited to understated design schemes. The chair’s frame and arm supports are constructed from thick matte black powder-coated steel, with slightly thinner tapered steel legs finished to match. Internal support for the seat and backrest comes from bent plywood or equivalent reinforced composite panels. The seat cushion uses high resilience polyurethane foam, topped with beige faux leather, while the curved backrest is padded with supportive polyurethane foam. Each leg terminates in an injection-molded nylon non-slip glide. Stitched upholstery seams follow consistent spacing for durable, neat finishing. Functional features are tailored for regular seating use: the fixed curved wraparound backrest incorporates a dedicated lumbar support zone to encourage upright dining posture, while fixed integrated armrests provide stable upper arm support. The padded seat’s rounded front edge reduces leg pressure during extended sitting, and the splayed four-leg design delivers anti-tip stability. The nylon leg glides prevent scratches on hard flooring including wood, tile, and stone. The chair offers a relaxed recline with three lock positions, and tilt tension adjusts to accommodate users up to the recommended weight limit. This chair works across both residential and commercial settings. In homes, it pairs with standard height dining tables for daily meal use in dedicated dining rooms. For commercial applications, it fits casual dining cafes and restaurants with modern interior themes, office reception and informal meeting waiting areas, and break or open collaboration zones in co-working shared spaces. It is also suited for pairing with a 2.4 m executive desk where casual guest seating is required. Procurement teams and buyers should note the chair ships as one set across two cartons, with an assembly time of 40 minutes per unit. The reference daily use duration is 8 hours per day, with ergonomic confirmation recommended for specialized high-use deployments. Loading capacity for standard shipping containers is calculated at 85% space utilization for planning purposes.

Modern Upholstered Arm Dining Chair Specifications
