Primary source
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1800 × 900 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Distributed static tabletop load capacity | 113 kg | |
|---|---|---|
| Tabletop surface hardness | Mohs 9 | |
| Heat resistance temperature | 693 °C | |
| Net product weight | 56 kg | |
| Recommended seating capacity | 6 people | |
| Metal leg static load per leg | 75 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop core | 12mm sintered stone panel | |
|---|---|---|
| Leg structure | Black powder-coated carbon steel tube | |
| Leg base pads | Non-slip adjustable PP plastic feet | |
| Tabletop underside backing | 10mm honeycomb reinforcement panel | |
| Connection hardware | Zinc-plated steel M8 mounting bolts | |
| Surface finish | Matte low-sheen sintered stone coating | |
| Leg finish | Epoxy powder coating, 60μm thickness | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support | |
| Reference Finish / Color Count | Recommended 6top finishes and 3frame colors |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Leveling adjustment | 15mm height adjustment per adjustable foot | |
|---|---|---|
| Surface performance | Scratch-resistant, waterproof, stain-resistant surface | |
| Assembly requirement | Knock-down assembly with 12 mounting bolts | |
| Structure type | Fixed non-extendable rigid frame | |
| Edge protection | Rounded 30mm radius corners | |
| Floor protection | Non-marking plastic foot pads | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

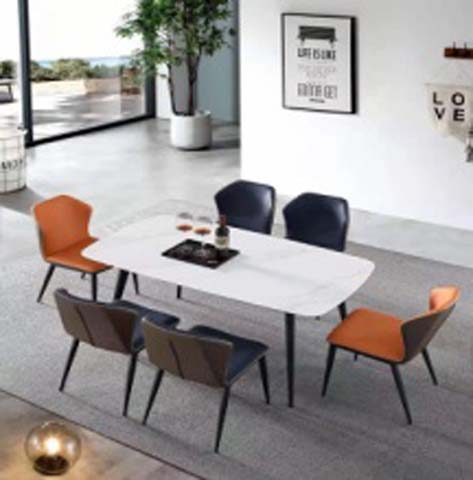

| Residential dining room | Fits 6 diners for daily family meals and casual gatherings | |
|---|---|---|
| Open-plan kitchen diner | Minimalist profile complements modern open-concept living spaces | |
| Small apartment dining area | Compact 900mm depth fits limited floor space without crowding | |
| Commercial cafe seating | Durable sintered stone top withstands high-frequency daily commercial use | |
| Showroom sample display | Neutral white and black finish matches multiple interior design styles |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic dining tables | |
|---|---|---|
| EN 15372:2008 | Furniture - Requirements for surface resistance to cold liquids for table tops |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to furniture stability testing | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances for interior decoration wood furniture, applicable to formaldehyde limits | |
| GB/T 4893.4-2013 | Surface wear resistance test for furniture surfaces, applicable to tabletop durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to furniture stability testing; 2. GB 18584-2001: Limit of harmful substances for interior decoration wood furniture, applicable to formaldehyde limits; 3. GB/T 4893.4-2013: Surface wear resistance test for furniture surfaces, applicable to tabletop durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
