PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1600 × 800 × 750 mm | |
|---|---|---|
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 100 kg | |
|---|---|---|
| Product net weight | 48 kg | |
| Seating capacity | 4 people | |
| Base anti-slip pad load rating | 120 kg per pad | |
| Surface scratch resistance rating | 6 Mohs | |
| Metal base corrosion resistance | 48 hours neutral salt spray pass | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.

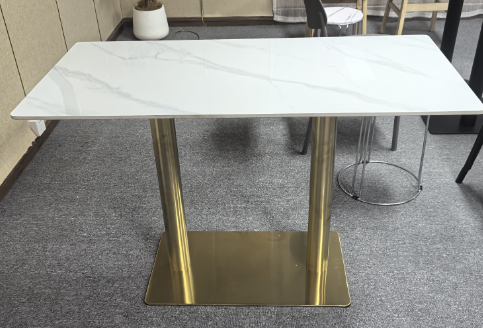

| Tabletop core layer | 12mm sintered stone with white marble grey veining | |
|---|---|---|
| Tabletop edge trim | 1mm polished stainless steel edge band | |
| Support columns | Polished gold PVD coated 304 stainless steel tubes | |
| Base plate | 10mm thick polished gold stainless steel flat plate | |
| Under-top mounting bracket | 2mm cold-rolled steel with anti-corrosion coating | |
| Floor protection pads | 5mm thick non-slip silicone rubber | |
| Surface finish on metal parts | High-gloss PVD titanium gold plating | |
| Tabletop surface treatment | Glossy nano anti-stain coating | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Floor contact stability | Wide single T-base with 4 corner silicone pads | |
|---|---|---|
| Under-table legroom | Unobstructed central clearance for 4 diners | |
| Surface maintenance | Non-porous sintered stone top resists oil and liquid stains | |
| Assembly method | Detachable columns secured with hex bolts to top and base | |
| Weight distribution | Central offset column layout balances top load | |
| Edge safety | Rounded 2mm tabletop profile | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Domestic dining rooms | 4-seat configuration fits small to medium home dining areas | |
|---|---|---|
| Open-plan office pantries | Stain-resistant top supports casual staff meal and break use | |
| Small cafe and bistro seating | Compact footprint fits 2 or 4 patrons in premium casual venues | |
| Apartment balcony lounge areas | Weather-resistant sintered top suits semi-outdoor use | |
| Hotel guest room dining nooks | Space-efficient design suits limited room layout |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic dining tables | |
|---|---|---|
| EN 15372:2016 | Furniture - Requirements for surface resistance of tabletops |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden/stone furniture tables | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances for wooden furniture |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden/stone furniture tables; 2. GB 18584-2001: Limit of harmful substances for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
