Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2200 × 1000 × 750 mm | |
|---|---|---|
| tabletop thickness | 50 mm | |
| tabletop edge overhang | 50 mm | |
| single leg panel width | 400 mm | |
| single leg panel thickness | 50 mm | |
| under-table knee clearance height | 690 mm | |
| leg setback from long edge | 300 mm | |
| leg setback from short edge | 400 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| net weight | 180 kg | |
|---|---|---|
| distributed static tabletop load | 250 kg | |
| seating capacity | 8 diners | |
| surface abrasion resistance | 4000 cycles | |
| finish warranty | 10 years | |
| metal leg wall thickness | 8 mm | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.

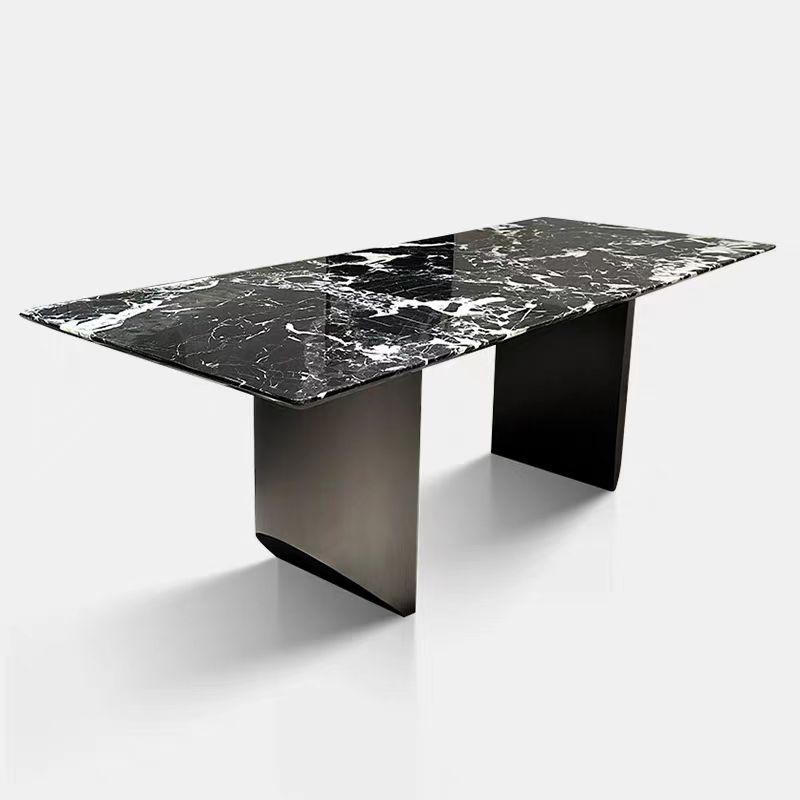

| tabletop slab | Grand Antique black natural marble with white veining, polished finish | |
|---|---|---|
| tabletop edge | Beveled polished marble edge, radius 3mm | |
| support legs | Brushed dark bronze carbon steel solid vertical panels | |
| leg base trim | Angled cut bottom edge on each leg panel | |
| connecting hardware | Stainless steel M10 mounting bolts, anti-loosening washers | |
| surface sealant | Penetrating stone sealer, stain-resistant coating | |
| adjustable foot pads | Nylon non-slip leveling pads on leg bases | |
| undertop reinforcement | 18mm plywood backing panel under marble slab | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| structure type | Fixed non-extendable rectangular dining table, no folding mechanism | |
|---|---|---|
| seating access | Open unobstructed under-table space on all four sides | |
| leveling adjustment | 10mm vertical adjustment via foot pads for uneven floors | |
| assembly requirement | Flat-pack assembly, legs attach to undertop frame with included hardware | |
| surface maintenance | Sealed polished surface resists water and common food stains, periodic resealing required | |
| floor protection | Soft non-marking foot pads prevent scratches on hard flooring | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| residential dining room | Suitable for 8seat open-plan modern or luxury dining spaces | |
|---|---|---|
| open-plan kitchen diner | Matches minimalist and contemporary interior design schemes | |
| commercial hospitality | Suitable for high-end restaurant private dining rooms and hotel suites | |
| showroom display | Works as a statement piece for furniture and interior design showrooms | |
| executive lounge | Appropriate for premium office breakout and executive dining areas |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Applicable for strength, durability and safety requirements for domestic dining tables | |
|---|---|---|
| EN 15185:2011 | Applicable for surface resistance to abrasion for furniture surfaces | |
| EN 15186:2011 | Applicable for surface resistance to scratching for furniture surfaces |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable for general technical requirements for wooden/stone furniture, dimensional stability | |
|---|---|---|
| GB 18584-2001 | Applicable for limit of harmful substances in interior decoration furniture materials | |
| GB/T 4897.3-2015 | Applicable for particleboard used in undertop reinforcement backing panels |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable for general technical requirements for wooden/stone furniture, dimensional stability; 2. GB 18584-2001: Applicable for limit of harmful substances in interior decoration furniture materials; 3. GB/T 4897.3-2015: Applicable for particleboard used in undertop reinforcement backing panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
