PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1650 × 900 × 760 mm | |
|---|---|---|
| Tabletop thickness | 19 mm | |
| Pedestal diameter | 300 mm | |
| Pedestal height | 741 mm | |
| Under-table knee clearance height | 710 mm | |
| Under-table clearance between pedestals | 950 mm | |
| Gold foot trim height | 10 mm | |
| Tabletop rounded end radius | 450 mm | |
| Backing board thickness | 18 mm | |
| Pedestal wall thickness | 25 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static distributed load capacity | 200 kg | |
|---|---|---|
| Tabletop heat resistance | 1200 °C | |
| Tabletop surface abrasion resistance | 6000 revolutions | |
| Seating capacity | 4 people | |
| Net product weight | 108 kg | |
| Finish stain resistance rating | Grade 5 | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | Glossy white sintered stone | |
|---|---|---|
| Tabletop backing | 18mm birch plywood | |
| Pedestal bodies | MDF core with off-white matte lacquer, vertical fluted texture | |
| Pedestal foot trim | Titanium gold plated stainless steel | |
| Connection hardware | Zinc-plated steel M8 connector bolts | |
| Tabletop edge treatment | Polished rounded edge, same gloss as surface | |
| Surface coating thickness | 0.2 mm UV-cured high-gloss lacquer | |
| Pedestal base foot pads | Non-slip TPE rubber pads | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Assembly requirement | Knock-down assembly, tabletop attaches to two pedestals via hardware | |
|---|---|---|
| Fixed non-extendable structure | No moving leaves or extension mechanisms | |
| Floor protection | Rubber foot pads under each pedestal prevent hard floor scuffing | |
| Surface cleaning | Non-porous glossy top allows wipe-clean with damp cloth | |
| Island attachment compatibility | Designed for fixed connection to matching kitchen island counter | |
| Stability design | Wide 300mm diameter dual pedestals eliminate wobble during dining use | |
| Edge safety | Fully rounded tabletop edges eliminate sharp corner impact risks | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

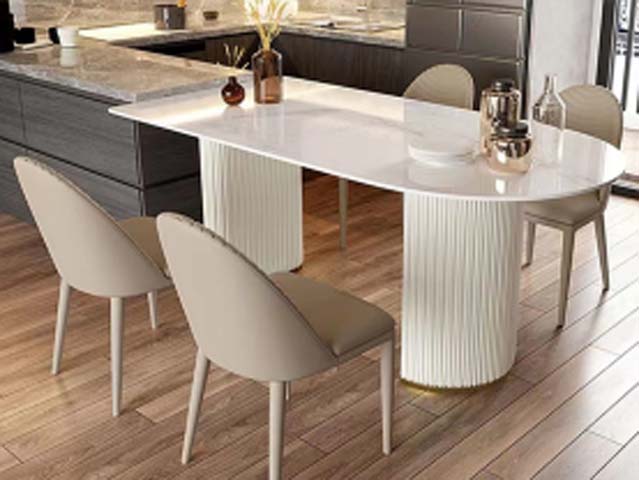

| Residential dining space | Suitable for open-plan kitchen-dining areas adjacent to kitchen islands | |
|---|---|---|
| 4-person household use | Ideal for small families or couples hosting casual meals | |
| Light luxury modern interior schemes | Pairs with cream, neutral or dark grey kitchen cabinetry | |
| Hardwood and tile flooring | Non-slip rubber feet prevent scratching on smooth hard floor surfaces | |
| Dining and casual entertaining | Glossy surface supports daily meals and small gatherings, easy to clean | |
| Fixed installation layouts | Suitable for permanent placement against custom kitchen island counters |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic dining tables | |
|---|---|---|
| EN 13722:2004 | Furniture – Test methods for surface resistance to cold liquids for tabletops |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to lacquered pedestal components | |
|---|---|---|
| GB 6566-2010 | Limit of radionuclides in building materials, applicable to sintered stone tabletop | |
| GB/T 4893.4-2013 | Surface abrasion resistance test for furniture finishes, applicable to tabletop coating |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to lacquered pedestal components; 2. GB 6566-2010: Limit of radionuclides in building materials, applicable to sintered stone tabletop; 3. GB/T 4893.4-2013: Surface abrasion resistance test for furniture finishes, applicable to tabletop coating; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
