Primary source
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.

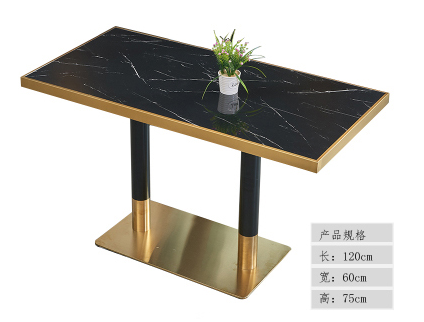

| Overall dimensions (W × D × H) | 600 × 1200 × 750 mm | |
|---|---|---|
| Tabletop thickness | 30 mm | |
| Under-table knee clearance height | 680 mm | |
| Support column diameter | 80 mm | |
| Floor base dimensions | 800 x 300 x 8 mm | |
| Gold edge trim width | 20 mm | |
| Column center spacing | 500 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total net weight | 50 kg | |
|---|---|---|
| Distributed static tabletop load | 150 kg | |
| Sintered stone surface Mohs hardness | 7 | |
| Sintered stone water absorption rate | 0.05% | |
| Surface heat resistance | 1200 °C | |
| Base plate static load capacity | 300 kg | |
| Recommended seating capacity | 4 people | |
| Seating capacity per side | 2 people | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | 12mm thick black sintered stone with white marble veining | |
|---|---|---|
| Tabletop edge trim | Brushed gold-plated stainless steel trim | |
| Tabletop support substrate | 18mm thick high-density particleboard | |
| Vertical support columns | 60mm diameter carbon steel with matte black powder coat | |
| Column base ferrules | Polished gold-plated stainless steel accent rings | |
| Floor base plate | 8mm thick brushed gold-plated stainless steel | |
| Leveling feet | M8 threaded plastic adjustable feet | |
| Connection hardware | Zinc-plated steel M6 bolts and lock washers | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Assembly structure | Knockdown three-part assembly | |
|---|---|---|
| Floor leveling adjustment | 15 mm vertical adjustment range per foot | |
| Seating clearance design | Central double-column placement | |
| Surface cleanability | Non-porous sintered stone surface | |
| Edge protection | Encapsulated gold metal edge trim | |
| Stability design | Wide single rectangular floor base | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Total shipping gross weight | 55 kg | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Small apartment dining area | 1200mm compact size fits 4-person dining without excess space usage | |
|---|---|---|
| Commercial cafe seating | Luxury gold and black finish matches modern upscale cafe interior schemes | |
| Office breakout meeting space | Suitable for casual small team meetings and light refreshment breaks | |
| Studio apartment multi-use surface | Works for dining, laptop work and decorative display in open plan spaces | |
| Restaurant booth table application | Stable metal base supports high-traffic commercial restaurant use |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture - Strength, durability and safety for domestic dining tables | |
|---|---|---|
| EN 15185:2011 | Test method for surface abrasion resistance of furniture tops |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to support substrate structure | |
|---|---|---|
| GB 18584-2001 | Limit of formaldehyde emission for indoor wooden furniture, applicable to substrate panels |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to support substrate structure; 2. GB 18584-2001: Limit of formaldehyde emission for indoor wooden furniture, applicable to substrate panels; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
