Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1400 × 800 × 460 mm | |
|---|---|---|
| Tabletop thickness | 25 mm | |
| Under-table clearance | 150 mm | |
| Single drawer internal dimensions | 600 x 320 x 100 mm | |
| Gold leg cross-section | 30 x 30 mm | |
| Drawer front panel thickness | 18 mm | |
| Side panel thickness | 25 mm | |
| Gold handle length | 80 mm | |
| Finished Top Thickness | 45 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop distributed static load | 80 kg | |
|---|---|---|
| Single drawer static load | 10 kg | |
| Finish abrasion resistance | 400 cycles | |
| Net weight | 50 kg | |
| Recommended number of users | 4 | |
| Product warranty | 1 year | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop | High-gloss black lacquered MDF | |
|---|---|---|
| Drawer fronts | High-gloss white lacquered MDF | |
| Side and lower cabinet panels | Black melamine-faced engineered wood | |
| Base frame and legs | Gold-toned powder-coated carbon steel | |
| Drawer handles | Gold-finish zinc alloy | |
| Drawer glides | Cold-rolled steel side-mount glides | |
| Decorative trim | Gold-tone plated metal strip | |
| Internal drawer bottoms | 5 mm thick MDF | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Drawer operation | Four equal front-facing pull-out drawers for concealed living room storage | |
|---|---|---|
| Drawer glide travel | 300 mm | |
| Under-table access | 150 mm clearance to accommodate standard robot vacuum cleaning | |
| Tabletop surface function | Stain-resistant wipe-clean glossy surface for holding beverages, reading material and decor | |
| Assembly type | Knock-down assembly with included hardware for flat-pack shipping | |
| Anti-tip feature | Wall anchor included for installation stability | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 1100× 300 mm | |
| Reference Packaged Gross Weight | 90 kg/set in 2 cartons | |
| Reference Packaging Volume | 0.55 m³/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.

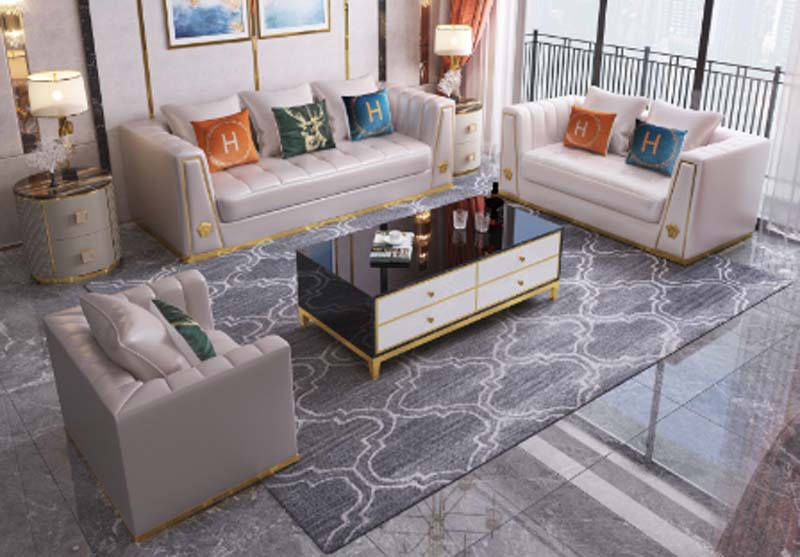

| Residential living room placement | Centered in front of matching 3+2+1 upholstered seating sets for leisure use | |
|---|---|---|
| Lounge and reception space use | Suitable for apartment lobbies and small reception areas to hold refreshments and reading material | |
| Matching furniture sets | Paired with coordinating black, white and gold side tables and sofas for unified decor | |
| Small accessory storage | Four drawers store remote controls, coasters and small living room essentials out of sight | |
| Low-profile placement | 150 mm under-table clearance supports robot vacuum access for easy cleaning |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture – Strength, durability and safety for domestic tables | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage furniture – Safety and performance requirements |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for cabinet and surface quality checks | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of formaldehyde emission for wooden furniture |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for cabinet and surface quality checks; 2. GB 18584-2001: Indoor decoration material limit of formaldehyde emission for wooden furniture; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
