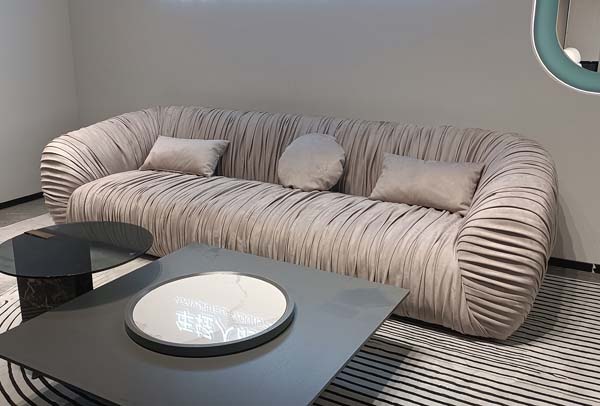

Product supplierLight Gray Vertical Pleated Curved 3-Seater Upholstered Sofa, 300gsm light gray performance velvet, vertical ruched pleats, non-removable cover
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 850 × 810 mm | |
|---|---|---|
| Seat height (floor to seat top) | 450 mm | |
| Seat depth (front edge to backrest face) | 600 mm | |
| Armrest height (floor to arm top) | 810 mm | |
| Armrest width (outer edge to seat face) | 280 mm | |
| Seat cushion thickness | 220 mm | |
| Backrest thickness | 180 mm | |
| Included throw pillow dimensions | 450 x 450 mm (rectangular lumbar), 450 mm diameter (round) | |
| Floor clearance under sofa base | 0 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 408 kg | |
|---|---|---|
| Seat foam density | 38 kg/m³ | |
| Foam rebound rate | 60% | |
| Fabric Martindale abrasion resistance | 30000 cycles | |
| Net product weight | 150 kg | |
| Recommended seating capacity | 3 adults | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Frame joint static load rating | 150 kg per seat | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | 300gsm light gray performance velvet, vertical ruched pleats, non-removable cover | |
|---|---|---|
| Internal frame | Kiln-dried solid hardwood, 30mm section, doweled and glued joints | |
| Seat support layer | 50mm high-density foam base + 20mm polyester batting wrap + serpentine spring support | |
| Seat cushion core | 38 kg/m³ high-resilience polyurethane foam | |
| Backrest fill | 30 kg/m³ soft polyurethane foam + 10mm polyester fiber wrap | |
| Armrest fill | Dense polyurethane foam fully wrapped over frame, matching back/seat pleat alignment | |
| Throw pillow fill | Hollow conjugated polyester fiber fill, matching sofa upholstery fabric | |
| Base covering | Same pleated velvet upholstery fully wrapping lower frame, no exposed feet or legs | |
| Frame moisture content | 12% | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating function | Static three-seat lounge seating with deep seat for casual reclined upright posture | |
|---|---|---|
| Cleaning requirement | Spot clean only with damp soft cloth and mild upholstery detergent, no machine washing | |
| Placement design | Designed for wall placement against flat interior walls, with curved front facing open space | |
| Structural stability | Floor-contacting full upholstered base eliminates tip risk on level hard or soft flooring | |
| Assembly format | Tool-free sofa-in-box compression packaging, expands to full shape after unpacking | |
| Pillow adjustability | Three included throw pillows are fully removable and repositionable for lumbar or head support | |
| Fabric performance | Stain-resistant velvet finish repels light liquid spills for immediate spot cleaning | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Ideal for open-plan or compact modern living rooms as primary lounge seating for households | |
|---|---|---|
| Apartment/studio spaces | Suitable for urban small apartment living areas due to curved space-efficient footprint | |
| Lounge reception areas | Applicable for boutique office reception areas or creative studio waiting spaces | |
| Recommended pairing | Pairs with low-profile round/square glass or stone coffee tables (450 mm height) as shown in reference image | |
| Flooring compatibility | Works on low-pile carpet, area rugs, polished concrete, wood or tile flooring without scratching surfaces | |
| User group suitability | Designed for 3adult users for daily casual sitting, reading, or light lounging | |
| Boutique reception areas | Applicable for creative studio or small office waiting lounge spaces | |
| Recommended table pairing | Pairs with 450mm height low-profile round/square glass or stone coffee tables |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable European furniture standard for domestic seating strength, durability and stability requirements | |
|---|---|---|
| EN 1021-1:2014 | Applicable upholstery flammability standard: cigarette ignition resistance for residential furniture |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 1952.1-2012 | Applicable standard for upholstered sofas: covers strength, durability and dimensional stability requirements | |
|---|---|---|
| GB 18401-2010 | Applicable national textile safety standard: Class B for direct skin contact upholstery fabrics | |
| GB/T 3324-2017 | Applicable standard for wooden furniture frame: covers material moisture content and structural strength |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 1952.1-2012: Applicable standard for upholstered sofas: covers strength, durability and dimensional stability requirements; 2. GB 18401-2010: Applicable national textile safety standard: Class B for direct skin contact upholstery fabrics; 3. GB/T 3324-2017: Applicable standard for wooden furniture frame: covers material moisture content and structural strength; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
