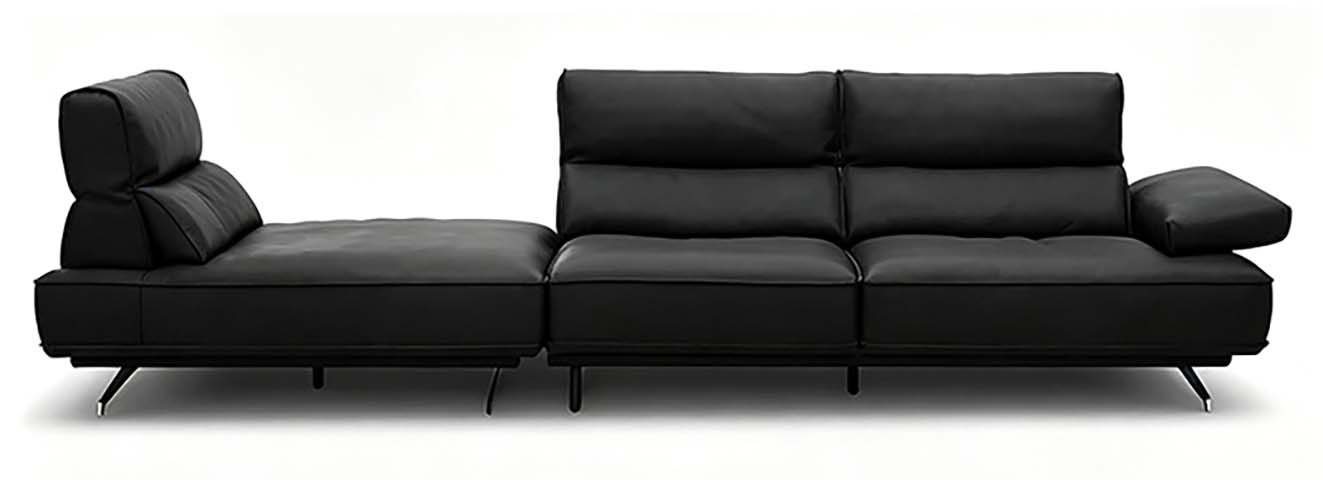

Product supplierModern Left Chaise Sectional Sofa, Matte Black Upholstery with Metal Legs, Matte black smooth faux leather
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3060 × 1770 × 1000 mm | |
|---|---|---|
| Main sofa section depth | 1070 mm | |
| Seat height from floor | 480 mm | |
| Main sofa seat depth | 580 mm | |
| Chaise lounge seat depth | 1290 mm | |
| Right fixed armrest height | 640 mm | |
| Support leg height | 150 mm | |
| Seat cushion thickness | 180 mm | |
| Back cushion thickness | 160 mm | |
| Adjustable headrest height range | 220 mm | |
| Chaise section width | 1090 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 110 kg | |
|---|---|---|
| Per-seat static weight capacity | 136 kg | |
| Total seating capacity | 3 people | |
| Seat foam density | 1.9 lb/ft³ | |
| Seat foam rebound rate | 60% | |
| Upholstery abrasion resistance | 50000 double rubs | |
| Frame static load rating | 450 kg | |
| Structural warranty | 10 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| External upholstery | Matte black smooth faux leather | |
|---|---|---|
| Internal load frame | Solid kiln-dried hardwood with glued/nailed joinery | |
| Seat cushion fill | 1.9 density high-resilience polyurethane foam with fibre wrap | |
| Back cushion fill | Blended fibre and soft foam wrap | |
| Outer support legs | Polished chrome-plated angled hairpin metal legs | |
| Central support legs | Black powder-coated straight steel legs | |
| Modular connection hardware | Zinc-plated steel interlocking brackets | |
| Stitching construction | Bonded polyester thread with 8 mm seam pitch | |
| Adjustable headrest mechanism | Powder-coated steel ratchet hinges | |
| Leg foot caps | Non-marking rubber floor protectors | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Left section headrest adjustment | Ratchet-style multi-position tilt up to 30 degrees | |
|---|---|---|
| Modular section connection | Interlocking metal brackets lock sections together | |
| Seating configuration | Combines upright two-seat area with extended reclined chaise | |
| Assembly requirement | Leg attachment only with included hex hardware | |
| Upholstery maintenance | Wipe-clean surface resistant to common household spills | |
| Floor protection | Rubber leg caps eliminate contact scuffs on hard flooring | |
| Seat support base | Sinuous steel spring suspension under seat cushions | |
| Right fixed armrest | Padded block arm provides stable arm support on sofa end | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Largest carton dimensions | 2100 x 1100 x 650 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room use | Suitable for open-plan modern living spaces as primary seating | |
|---|---|---|
| Contemporary interior styling | Matches minimalist, industrial, and modern monochrome decor schemes | |
| Lounge entertainment space | Ideal for media rooms and casual lounging areas with extended chaise | |
| Home office reception area | Suitable for modern home office guest and lounge seating | |
| Recommended pairing | Matches black metal and glass coffee tables for cohesive modern design |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability, safety for domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance smouldering cigarette |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal wood frame | |
|---|---|---|
| GB 20400-2006 | Leather and faux leather limit of harmful substances, applicable to upholstery | |
| GB/T 1952.1-2012 | Soft furniture sofas, test methods for strength and durability |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wood frame; 2. GB 20400-2006: Leather and faux leather limit of harmful substances, applicable to upholstery; 3. GB/T 1952.1-2012: Soft furniture sofas, test methods for strength and durability; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
