PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3940 × 1400 × 890 mm
Seat height from floor	460 mm
Seat depth (deep lounge configuration)	640 mm
End armrest width	220 mm
Support foot height	100 mm
Included throw pillow dimensions	450 x 450 mm
Back cushion height (from seat surface)	430 mm
Single straight module width	2000 mm
Curved end module radius	1200 mm
Seat cushion thickness	250 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static load capacity	360 kg
Net product weight	65 kg
Fabric abrasion resistance	30000 Martindale cycles
Seat foam density	28D
Foam rebound rate	60%
Included throw pillow quantity	3
Shape recovery time after unpacking	72 hours
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	White soft-woven polyester fabric
Seat cushion core	28D high-density polyurethane foam with pocket spring support
Back cushion core	Duck down blended with polyfiber fill
Internal frame	18mm birch plywood with solid pine bracing
Support feet	15mm diameter matte black powder-coated steel
Seat support deck	80mm wide sinuous spring with 50mm elastic webbing
Armrest padding	40mm high-resilience foam wrapped over frame
Seam stitching	Polyester bonded thread with 30mm stitch pitch
Throw pillow covers	Removable velvet and woven fabric covers
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	Two connected sections: straight seating unit plus rounded curved end unit
Cushion positioning	Loose, positionable back cushions for adjustable comfort
Seat design	Continuous deep lounge seat surface without dividers between modules
Floor protection	Non-marking plastic glides on all metal support feet
Armrest function	Integrated padded end armrests for upper body support at both terminals
Maintenance access	Removable cushion covers for spot cleaning or laundering
Layout stability	Metal connecting brackets lock modular sections together to prevent shifting
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential open-plan living room	Suitable as primary lounge seating for large apartments and villas
Hospitality lounge areas	Ideal for boutique hotel lobbies and high-end office waiting areas
Studio and residential display spaces	Fits minimalist contemporary interior design schemes
Recommended seating capacity	4 adults
Matching accessories	Pairs with low-profile round coffee tables aligned to the curved front edge
Flooring compatibility	Suitable for hard wood, tile, and low-pile carpeted surfaces

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture seating standard	EN 12520:2015
Upholstery fabric flammability	EN 1021:2014
Furniture volatile emission	EN 16516:2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety standard	GB/T 3324
Formaldehyde emission limit	GB 18584
Fabric colorfastness requirement	GB/T 3920

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety standard: GB/T 3324;
2. Formaldehyde emission limit: GB 18584;
3. Fabric colorfastness requirement: GB/T 3920;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CMS-ASYM2-WHT-3940

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CMS-ASYM2-WHT-3940

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CMS-ASYM2-WHT-3940Open Export Tool

Quick Actions

Post an RFQ

Product Description

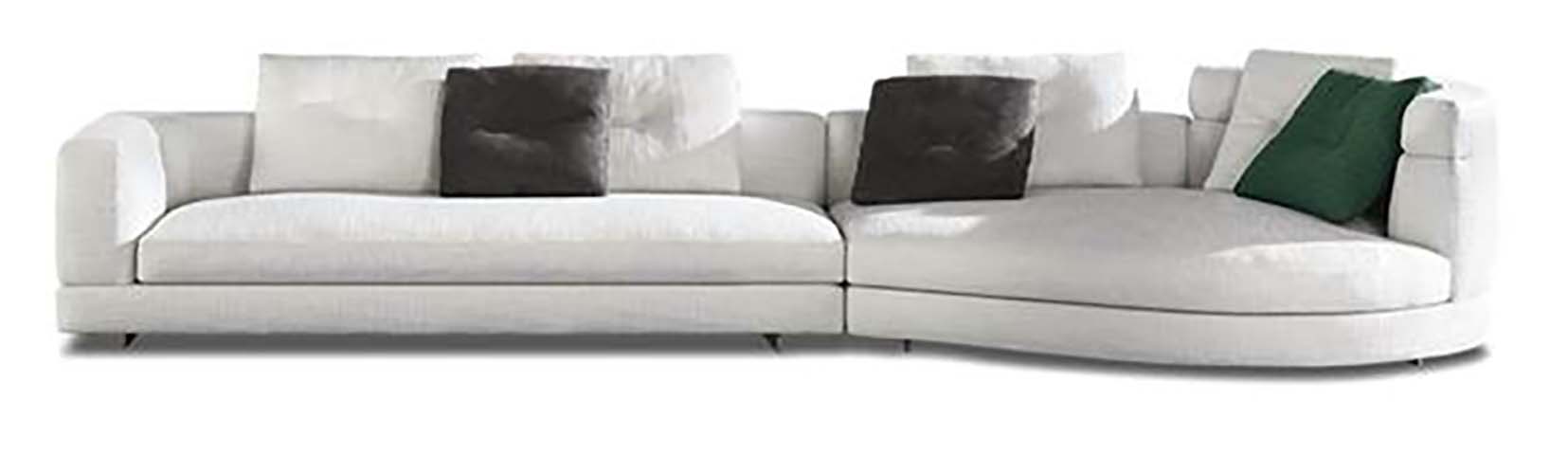

The Two-Section Asymmetrical Curved Modular Sectional Sofa, model CMS-ASYM2-WHT-3940, is an unbranded lounge seating solution defined by its streamlined, low-profile silhouette and intentional asymmetrical layout. It is composed of two interlocking sections: a straight seating unit paired with a rounded curved end unit, creating a continuous, divider-free deep lounge seat surface anchored by padded integrated armrests at both terminals. The piece sits on short matte black metal support feet, and comes with three coordinating throw pillows finished in mix of velvet and woven fabrics that complement the crisp white upholstery for a soft, contemporary visual presence. Construction prioritizes lasting comfort and structural integrity. The internal frame uses 18mm birch plywood reinforced with solid pine bracing, set atop a seat support deck of sinuous springs and elastic webbing. Seat cushions are built with 28D high-density polyurethane foam with pocket spring support, covered in soft-woven white polyester fabric, while back cushions use a blend of duck down and polyfiber for a plush, relaxed feel. Armrests are padded with high-resilience foam, all seams are stitched with durable polyester bonded thread, and metal feet are fitted with non-marking plastic glides to protect floor surfaces. The upholstery offers a tested abrasion resistance of 30000 Martindale cycles, with seat foam delivering a 60% rebound rate, and the total static load capacity of the frame reaches 360 kg. Functional design supports flexible, everyday use. Loose, positionable back cushions let users adjust support to their preference, while metal connecting brackets lock the two modular sections firmly in place to prevent shifting during use. All cushion covers, including those for the included throw pillows, are removable to simplify spot cleaning or laundering. The sofa requires a 72-hour shape recovery period after unpacking, and arrives in two cartons with an assembly time of 40 minutes per set. This sectional fits a range of residential and commercial spaces. It works as the primary lounge seating option for open-plan living rooms in large apartments and villas, and is equally well suited to boutique hotel lobbies, high-end office waiting areas, and residential or studio display spaces aligned with minimalist contemporary design schemes. It comfortably seats four adults, pairs seamlessly with low-profile round coffee tables sized to align with its curved front edge, and performs reliably on hardwood, tile, and low-pile carpeted flooring. For procurement planning, note the set’s net weight of 65 kg and packaged gross weight of 110 kg, with a total packaging volume of 1.8 cubic meters across two cartons. Prior to installation, confirm sufficient entryway and placement space to accommodate the sofa’s full footprint, and schedule setup to allow the full shape recovery period before regular use to ensure optimal cushion fit and appearance.

Two-Section Asymmetrical Curved Modular Sectional Sofa Specifications
