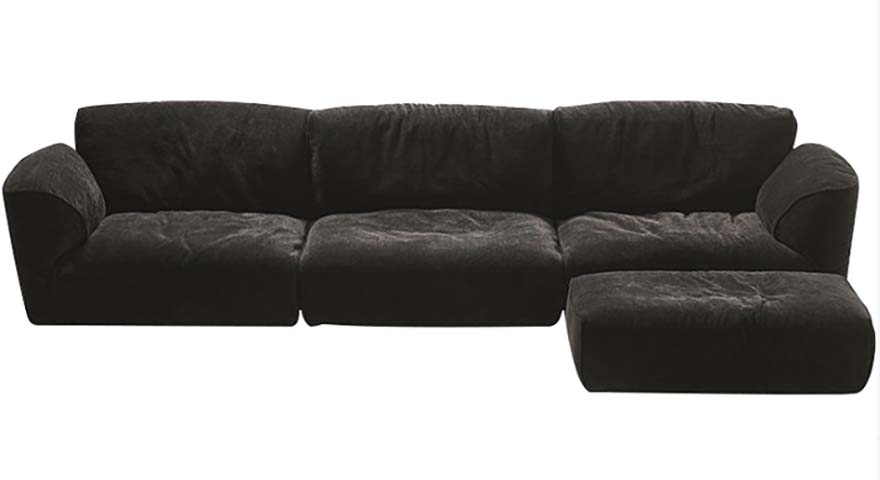

Product supplierL-Shaped Modular Sectional Sofa with Right Chaise Ottoman, Kiln-dried solid pine + plywood, 30mm thick
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3400 × 1800 × 850 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Recommended user capacity | 4 people | |
|---|---|---|
| Static load per seat | 150 kg | |
| Total product weight | 130 kg | |
| Seat foam density | 35 kg/m³ | |
| Back foam density | 28 kg/m³ | |
| Fabric abrasion resistance | 30000 Martindale cycles | |
| Seat rebound rate | 60% | |
| Warranty period | 3 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Internal frame | Kiln-dried solid pine + plywood, 30mm thick | |
|---|---|---|
| Upholstery fabric | Dark plush textured polyester velvet, 1.2mm thickness | |
| Seat core padding | High-resilience polyurethane foam wrapped in 50g polyester fiber | |
| Backrest padding | Blend of polyurethane foam and down-alternative fiber fill | |
| Armrest padding | High-density polyurethane foam wrap | |
| Connection hardware | Metal modular connecting clips between sections | |
| Bottom support | Elastic webbing suspension + sinuous spring base | |
| Fabric seam stitch pitch | 8 stitches per inch | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular section connection | Steel clip connectors secure three seat units and right chaise, reconfigurable | |
|---|---|---|
| Lounge seating support | Deep seat cushions support full reclined lounging position for all seats | |
| Detachable cushion design | All seat and back cushions are removable for cleaning and rotation | |
| Fixed padded armrests | Integrated rounded armrests on left main seat and right chaise end, no height adjustment | |
| Floor-sitting configuration | Low-profile frame sits directly on floor without visible legs, creating grounded modern aesthetic | |
| Right-side chaise extension | Extended ottoman section provides full leg rest for right-side seating position | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room main seating | Ideal for open-plan living rooms as primary lounge seating for 4 users | |
|---|---|---|
| Home theater seating | Suitable for media rooms with deep cushions supporting long viewing sessions | |
| Apartment lounge configuration | Fits large modern apartments with grounded low-profile aesthetic | |
| Reception lounge for creative offices | Appropriate for casual informal office reception waiting areas | |
| Color option | Available in standard dark charcoal, additional 3 neutral fabric options available | |
| Care requirement | Spot clean only with fabric-appropriate upholstery cleaner, avoid direct sunlight to prevent fading |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Upholstered furniture strength | EN 12520:2015 | |
|---|---|---|
| Furniture formaldehyde emission | EN 717:2004 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture safety | GB 17927 | |
|---|---|---|
| Formaldehyde emission limit | GB/T 18584 | |
| Furniture mechanical performance | GB/T 3324 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB 17927; 2. Formaldehyde emission limit: GB/T 18584; 3. Furniture mechanical performance: GB/T 3324; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
