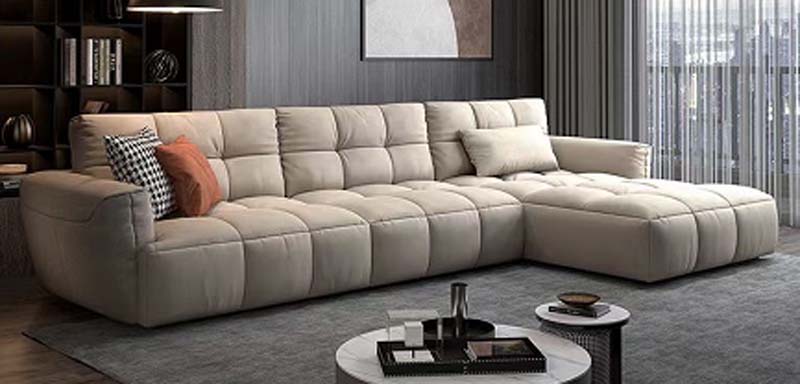

Product supplierBeige Grid-Tufted L-Shaped Right Chaise Sectional Sofa, Kiln-dried engineered hardwood lumber, 12% maximum moisture content, screwed and doweled joinery
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2870 × 1880 × 690 mm | |
|---|---|---|
| Seat height | 430 mm | |
| Seat depth (main sofa) | 650 mm | |
| Chaise lounge length | 1600 mm | |
| Chaise lounge depth | 1100 mm | |
| Armrest height | 580 mm | |
| Armrest width | 240 mm | |
| Backrest height | 380 mm | |
| Seating width (main sofa) | 2100 mm | |
| Floor clearance under sofa | 25 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Overall static load capacity | 450 kg | |
|---|---|---|
| Seat cushion durability (compression set resistance) | 30000 cycles | |
| Backrest joint load resistance | 68 kg per linear meter | |
| Fabric abrasion resistance | 30000 Martindale cycles | |
| Seam strength | 160 N per seam | |
| Frame joint fatigue life | 10 years of normal residential use | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Inner load-bearing frame | Kiln-dried engineered hardwood lumber, 12% maximum moisture content, screwed and doweled joinery | |
|---|---|---|
| Seat support system | 3.8 mm gauge zigzag tempered steel springs, spaced 75 mm apart, attached with plastic spring clips | |
| Seat cushion core | 45 kg/m³ high-resilience polyurethane foam, wrapped in 200g polyester fiber batting | |
| Backrest cushion core | 32 kg/m³ polyurethane foam, blended with 30% down-alternative fiber fill for soft support | |
| Upholstery fabric | 380 g/m² matte beige woven chenille-blend fabric, stain-repellent treated finish | |
| Tufting construction | Polyester buttonless grid tufting, 80 mm seam pitch between tufted segments, reinforced with internal tack strips | |
| Armrest structure | Integrated padded arm, 20 mm plywood substrate, 30 mm foam wrap, same fabric upholstery as main body | |
| Base construction | Fabric-wrapped solid wood perimeter base, non-marking plastic floor glides, no exposed legs | |
| Included throw pillows | 3 units, 450 x 450 mm size, polyfiber fill, 2 with coordinating pattern fabric, 1 matching beige fabric | |
| Armrest padding thickness | 80 mm foam thickness over arm frame, rounded ergonomic edge profile | |
| Backrest padding thickness | 150 mm foam and fiber fill, segmented by grid tufting | |
| Frame dust cover | Black non-woven polypropylene fabric, stapled to frame bottom to enclose support components |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Fixed right-facing L-shape, 4 total seating positions, 1 extended chaise lounge for full leg rest | |
|---|---|---|
| Seat support function | Zigzag spring and high-resilience foam core provides even weight distribution, no sagging over rated cycle life | |
| Cushion retention | Tufted segment construction secures cushion fill in place, prevents shifting during regular use | |
| Floor protection function | Non-marking plastic glides under base prevent scuffing on hard flooring and low-pile carpet | |
| Seating posture support | 650 mm deep seat and 380 mm low back supports relaxed lounging and upright casual seating | |
| Accent customization | Included removable throw pillows allow adjustable lumbar support and decorative styling flexibility | |
| Upholstery maintenance | Stain-repellent fabric finish allows spot cleaning with mild upholstery detergent for regular care | |
| Structural stability | Low 25 mm floor clearance and wide base footprint eliminates rocking on level floor surfaces | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Medium residential living rooms | Suitable for 35sqm open-plan living areas, provides 4-person casual seating for family daily use and small gatherings | |
|---|---|---|
| Apartment lounge spaces | Low-profile design fits modern minimalist apartment decor, right chaise fits corner layouts without blocking walkways | |
| Home media rooms | Deep plush cushioning supports extended seated use for movie watching and relaxation with full leg rest on chaise | |
| Residential studio open layouts | Compact L-shape divides open studio space into dedicated seating and sleeping zones without visual bulk | |
| Small office reception areas | Neutral beige finish fits casual office reception spaces for informal guest waiting and small team meetings | |
| Rental property furnishing | Durable fabric and fixed construction withstands regular tenant use, neutral color matches varied interior palettes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520 | 2015 Furniture – Strength, durability and safety – Requirements for domestic seating: Applicable for structural safety and durability acceptance | |
|---|---|---|
| EN 1021-1 | 2014 Furniture – Assessment of ignitability of upholstered furniture – Part 1: Ignition source smouldering cigarette: Applicable for fire safety acceptance |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 General technical requirements for wooden furniture | Applicable for wooden frame structural strength and finish acceptance | |
|---|---|---|
| GB 18401-2010 National general safety technical code for textile products | Applicable for upholstery fabric formaldehyde and harmful substance limits | |
| GB/T 1952.1-2012 Upholstered furniture | Sofas: Applicable for sofa load capacity, durability, and dimensional accuracy acceptance | |
| GB/T 22800-2009 Upholstered furniture fabric | Applicable for upholstery fabric abrasion, colorfastness, and seam strength requirements |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017 General technical requirements for wooden furniture: Applicable for wooden frame structural strength and finish acceptance; 2. GB 18401-2010 National general safety technical code for textile products: Applicable for upholstery fabric formaldehyde and harmful substance limits; 3. GB/T 1952.1-2012 Upholstered furniture: Sofas: Applicable for sofa load capacity, durability, and dimensional accuracy acceptance; 4. GB/T 22800-2009 Upholstered furniture fabric: Applicable for upholstery fabric abrasion, colorfastness, and seam strength requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
