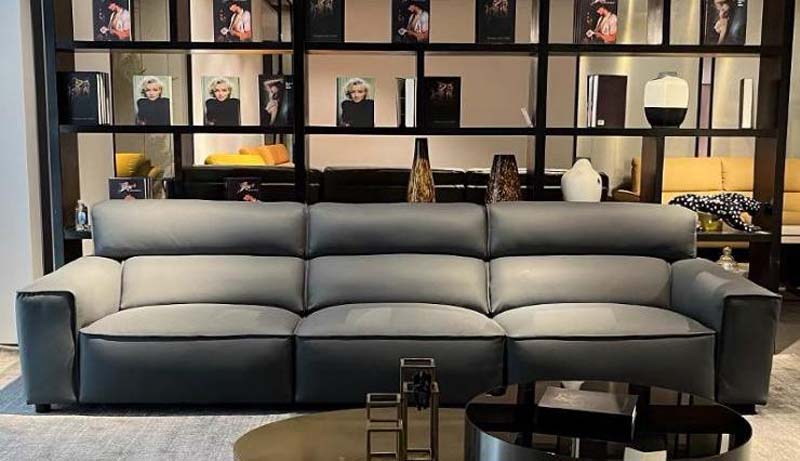

Product supplierModern Minimalist Gray Upholstered Three-Seat Sofa, Kiln-dried solid hardwood and 18mm plywood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2110 × 840 × 870 mm | |
|---|---|---|
| Seat height from floor | 430 mm | |
| Total seat width across three positions | 1830 mm | |
| Single seat cushion width | 610 mm | |
| Seat depth from front edge to back cushion | 590 mm | |
| Back cushion height above seat surface | 440 mm | |
| Armrest width at outer edge | 140 mm | |
| Armrest height above floor | 610 mm | |
| Support foot height | 40 mm | |
| Under-sofa floor clearance | 30 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight | 63 kg | |
|---|---|---|
| Maximum static load per seat position | 110 kg | |
| Total maximum static load for full sofa | 330 kg | |
| Seat cushion foam density | 55 kg/m³ | |
| Back cushion foam density | 25 kg/m³ | |
| Upholstery abrasion resistance | 55000 Martindale cycles | |
| Seam stitch pitch | 8 stitches per 30mm | |
| Limited warranty period | 3 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Internal load-bearing frame | Kiln-dried solid hardwood and 18mm plywood | |
|---|---|---|
| Seat cushion core | High-resilience polyurethane cold foam wrapped in 200gsm polyester fiber | |
| Back cushion core | 25kg/m³ polyurethane foam blended with recycled polyester fiber | |
| Outer upholstery | Smooth gray performance faux leather, 1.2mm thickness | |
| Armrest internal structure | Plywood frame padded with 30mm thick polyurethane foam | |
| Seat suspension system | 3.8mm diameter sinuous wire springs with 50mm spacing | |
| Support feet | Matte black finished engineered wood block feet | |
| Frame joint hardware | Dowel, glue, and metal corner bracket reinforced joints | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Three equal independent seat and back cushion positions for three adult occupants | |
|---|---|---|
| Cushion design | Removable seat and back cushions for cleaning and rotation | |
| Armrest function | Wide padded square armrests provide 140mm wide arm support surface on both ends | |
| Assembly requirement | Leg attachment required with included hardware, no special tools needed | |
| Floor protection | Non-marking plastic glides fitted to base feet to prevent hard floor scratching | |
| Stationary design | Fixed non-reclining, non-modular straight configuration for permanent lounge placement | |
| Cleaning compatibility | Smooth non-porous upholstery surface supports wipe-clean maintenance with mild detergent | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room primary seating | Three-person capacity fits standard 3.5m+ wide living room layouts for family and guest use | |
|---|---|---|
| Modern office lounge reception area | Low-profile minimalist design fits contemporary workspace waiting and break areas | |
| Open-plan apartment lounge space | Compact 2110mm width suits medium-sized urban apartment open living zones | |
| Matching set configuration | Pairs with matching armchairs and coffee tables for coordinated lounge furniture sets | |
| Low-traffic executive office guest space | Formal clean silhouette provides professional guest seating for private office areas | |
| Showroom display setting | Neutral gray finish works as a display piece for home furnishing and furniture retail showrooms |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety requirements for domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance to smouldering cigarette test |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for frame structural strength verification | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, formaldehyde emission limit <0.124mg/m³ |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for frame structural strength verification; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, formaldehyde emission limit <0.124mg/m³; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
