PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2680 × 1140 × 720 mm
seat height	485 mm
seat depth	820 mm
individual seat width	1200 mm
armrest width	220 mm
armrest height	485 mm
back cushion height	420 mm
seat cushion thickness	114 mm
lumbar throw pillow dimensions	520 x 380 x 120 mm
metal plinth base height	30 mm
modular joint gap	5 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net product weight	85 kg
total static load capacity	272 kg
seating capacity	2 people
seat foam density	45 kg/m³
foam rebound rate	60%
upholstery abrasion resistance	50000 Martindale cycles
seam stitch pitch	8 stitches per 30 mm
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

upholstery surface	Black full-grain leather match with grid-quilted stitching
internal support frame	Kiln-dried solid hardwood and reinforced steel inner frame
seat suspension	50 mm wide elastic webbing spaced 80 mm apart
seat cushion core	High-density polyurethane foam wrapped in polyester fiber
back cushion fill	Blend of sterilized goose down and polyurethane foam core
lumbar pillow fill	Silk-floss polyester fiber wrap over foam insert
base plinth trim	Brushed stainless steel 1.5 mm thick flush trim
modular connection hardware	Powder-coated steel latch and bracket connectors
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

back cushion adjustability	Movable loose back cushions allow 5 to 15 degree angle adjustment
modular reconfiguration	Two connected seat modules can be separated to add or rearrange units
lumbar support customization	Two matching quilted throw pillows can be repositioned for targeted back support
floor protection	Concealed non-marking plastic glides under metal plinth prevent floor scratches
seat surface design	Continuous grid-quilted seat surface eliminates gap discomfort between modules
removable cushion covers	Hidden zipper access on back and pillow cushions for spot cleaning
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential living room	Suitable for modern minimalist and contemporary open-plan living spaces
loft and studio apartment use	Low ground-hugging silhouette complements industrial and minimalist interior design
lounge and reception waiting areas	Two-seat configuration works for boutique office reception and lounge zones
home media room seating	Deep seat and adjustable back cushions support relaxed lounging during media use
recommended placement	Position 100 mm away from walls to allow full back cushion angle adjustment

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

upholstered furniture safety	EN 1021:2014
furniture strength testing	EN 12520:2015
leather upholstery performance	EN 13336:2012

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

upholstered furniture safety	GB 17927.1
furniture leather testing	GB/T 16799
furniture dimensional stability	GB/T 3324

Standardized tender description text

This product must meet the following technical requirements:
1. upholstered furniture safety: GB 17927.1;
2. furniture leather testing: GB/T 16799;
3. furniture dimensional stability: GB/T 3324;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LP-MS-GQ-2S-BLK-MTL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LP-MS-GQ-2S-BLK-MTL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LP-MS-GQ-2S-BLK-MTLOpen Export Tool

Quick Actions

Post an RFQ

Product Description

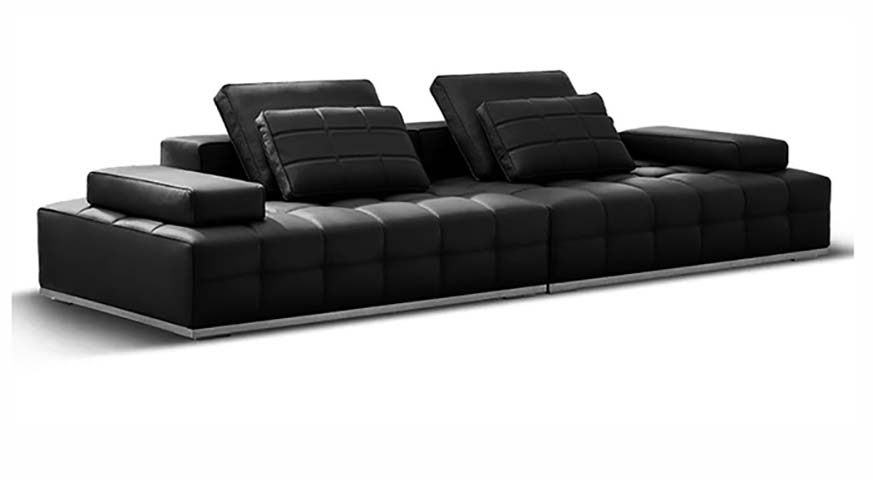

This black grid-quilted low-profile modular sectional sofa features a streamlined, contemporary silhouette defined by a flush brushed stainless steel metal plinth base that creates a grounded, platform-style visual presence. The uniform grid-quilted upholstery runs continuously across connected seat modules to eliminate unsightly gaps between units, while balanced proportions align with minimalist and modern design vocabularies, with neat, precise stitching reinforcing its polished, tailored appearance. Constructed for long-term regular use, the sofa pairs a kiln-dried solid hardwood and reinforced steel inner frame with 50mm wide elastic webbing seat suspension for consistent support. The upholstery is a black full-grain leather match finished with even grid-quilted stitching, rated for 50000 Martindale abrasion cycles, with seams stitched at 8 stitches per 30mm for durable seam integrity. Seat cushions use high-density 45 kg/m³ polyurethane foam wrapped in polyester fiber, delivering a 60% rebound rate, while back cushions hold a sterilized goose down and polyurethane foam core blend, and matching lumbar pillows feature a silk-floss polyester fiber wrap over a foam insert. The 1.5mm thick brushed stainless steel plinth base conceals non-marking plastic glides, and modules connect via powder-coated steel latch and bracket hardware. Total static load capacity is 272 kg, with a net product weight of 85 kg. Practical functionality supports flexible, comfortable use: movable loose back cushions allow angle adjustment between 5 and 15 degrees, the two connected seat modules can be separated to add or rearrange units for custom layouts, and the two quilted throw pillows can be repositioned for targeted lumbar support. Hidden zippers on back and pillow cushions enable easy removal for spot cleaning, with two supported methods for removable, replaceable cushion servicing. The continuous quilted seat surface removes gap discomfort between modules for a seamless seating experience. This two-seat sofa, with overall dimensions of 2680 x 1140 x 720 mm, 485mm seat height, 820mm seat depth, and 1200mm individual seat width, suits a range of spaces: modern minimalist and contemporary open-plan residential living rooms, loft and studio apartments where its low-slung profile complements industrial and minimalist interiors, boutique office reception and lounge waiting areas, and home media rooms where its deep seat and adjustable backs support relaxed lounging. For optimal function, position the sofa 100mm away from walls to allow full back cushion adjustment. Procurement teams should note units ship as one set across two cartons, with a packaged gross weight of 110 kg, total packaging volume of 1.8 m³, and 40-minute assembly time per set; cushion covers are designed for removable replacement to support long-term maintenance cycles.

Black Grid-Quilted Low-Profile Modular Sectional Sofa with Metal Plinth Base Specifications
