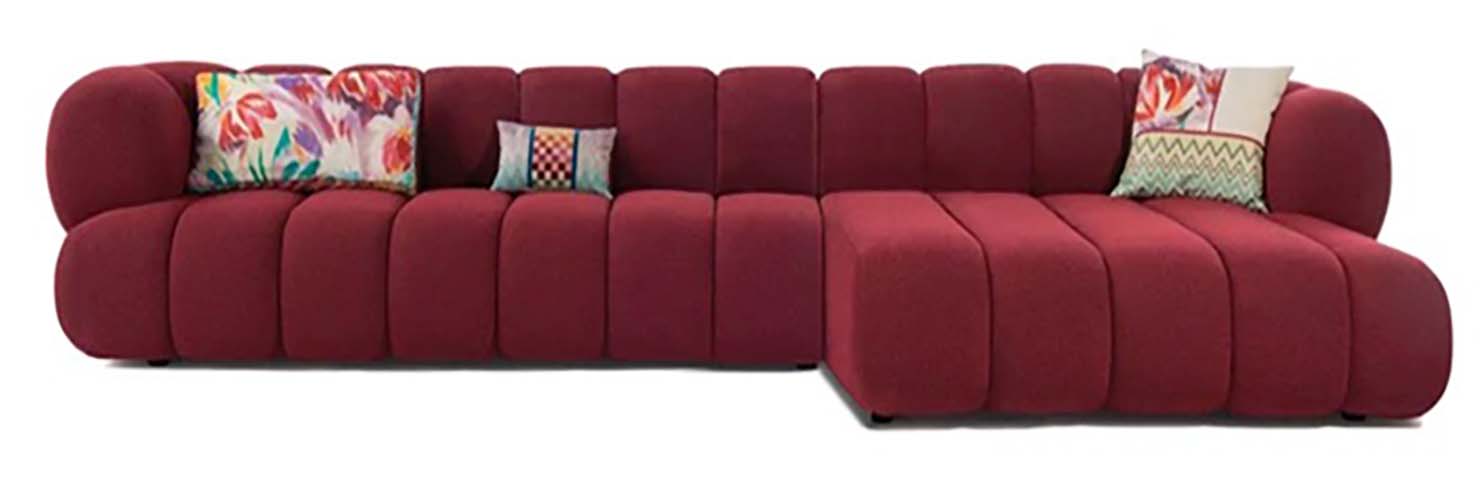

Product supplierBurgundy Channel-Tufted Right-Chaise L-Shaped Modular Sectional Sofa, 380 gsm polyester woven burgundy fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3290 × 1780 × 740 mm | |
|---|---|---|
| Seat height | 480 mm | |
| Straight sofa seat depth | 660 mm | |
| Chaise lounge depth | 1780 mm | |
| Armrest height | 660 mm | |
| Armrest width | 280 mm | |
| Individual channel segment width | 330 mm | |
| Backrest height above seat | 310 mm | |
| Support foot height | 30 mm | |
| Chaise seat width | 1470 mm | |
| Seat cushion thickness | 250 mm | |
| Backrest cushion thickness | 200 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product weight | 82 kg | |
|---|---|---|
| Per-seat static load capacity | 150 kg | |
| Recommended number of occupants | 5 | |
| Seat foam density | 45 kg/m³ | |
| Foam rebound rate | 60% | |
| Seam stitch pitch | 30 mm | |
| Fabric abrasion resistance | 50000 Martindale cycles | |
| Frame joint durability | 20000 load cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | 380 gsm polyester woven burgundy fabric | |
|---|---|---|
| Internal frame | 25 mm thick kiln-dried hardwood and plywood frame | |
| Seat support | 3.6 mm gauge sinuous steel spring suspension | |
| Seat cushion fill | 250 mm thick high-density polyurethane foam wrapped in polyester fiber | |
| Back cushion fill | 200 mm thick medium-density foam blended with polyester wadding | |
| Integrated armrests | Same fabric upholstery over foam padding, continuous with seat/back | |
| Support feet | Matte black powder-coated steel or ABS plastic recessed feet | |
| Included throw pillows | Cotton-poly blend covers with polyester fiber fill, 3 included | |
| Seam finishing | French seam construction along channel segment edges | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration | Connectable segmented modules forming right-facing L-shape | |
|---|---|---|
| Chaise lounging function | Extended right-side chaise for full-leg reclined seating | |
| Non-marking foot protection | Recessed feet with non-slip caps to protect hard floor surfaces | |
| Cushion recovery | Foam core returns to original shape after compression, no permanent sag | |
| Segment reconfiguration | Allows repositioning of armless modules to adjust layout | |
| Spot clean upholstery | Woven fabric supports spot cleaning with mild upholstery detergent | |
| Integrated arm support | Padded rounded armrests provide soft arm support at seating height | |
| Low-profile entry | Low seat height allows easy sit-to-stand access for most adults | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Primary lounge seating for open-plan living areas, fits modern minimalist spaces | |
|---|---|---|
| Apartment lounge | Low-profile design suits small to mid-sized apartments without visual bulk | |
| Open concept lounge areas | L-shape defines seating zones in studio or open-plan residential spaces | |
| Casual hospitality spaces | Suitable for boutique hotel lounges or creative office break areas | |
| Contemporary interior schemes | Soft rounded edges and burgundy finish complement curvilinear modern decor | |
| Family daily use | Plush deep seating supports daily relaxation and casual family gatherings |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Strength, durability and safety requirements for domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability resistance to cigarette ignition |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood frame | |
|---|---|---|
| GB 18584-2001 | Limits of formaldehyde emission for interior wooden furniture | |
| GB/T 19817-2005 | General technical requirements for upholstered furniture fabrics |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame; 2. GB 18584-2001: Limits of formaldehyde emission for interior wooden furniture; 3. GB/T 19817-2005: General technical requirements for upholstered furniture fabrics; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
